ARC FreeStation 2 - 300Mbps MIMO outdoor client for 2,4GHz, antenna 15dBi

We are sorry, this product is no longer in our offer.

ARC FreeStation 2 - 300Mbps MIMO outdoor client for 2,4GHz, antenna 15dBi
ARC FreeStation 2 - 300Mbps MIMO outdoor client for 2,4GHz, antenna 15dBi
×
0/0
ARC FreeStation 2 - 300Mbps MIMO outdoor client for 2,4GHz, antenna 15dBi
ARC FreeStation 2 - 300Mbps MIMO outdoor client for 2,4GHz, antenna 15dBi
Sale
Manufacturer

ARC Wireless

Code10220058
Part No.ARC-AF-FS-2-EU
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters

Product description

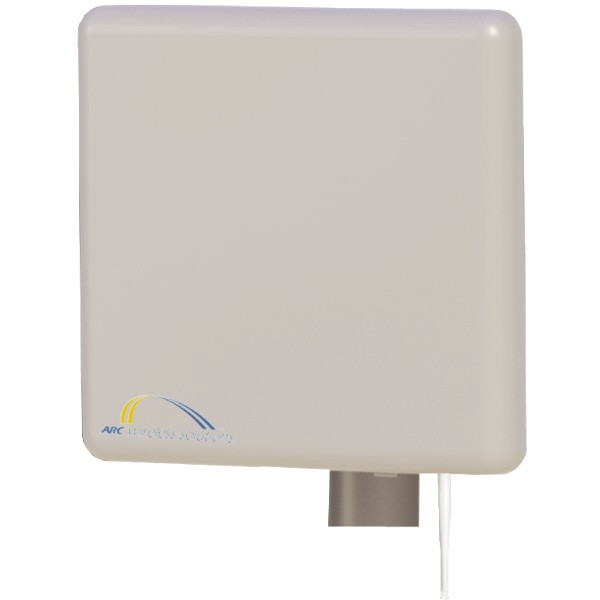

ARC FreeStation 2 is a product that delivers an unbeatable price in relation to the performance. It has an integrated 2 GHz 15 dBi antenna MIMO 2x2 and other independent radio at 2.4 GHz, all in one device.
Very suitable solution that integrates two routers. This saves you space and so energetic because you now need only one device. FreeStation has two separate radio units. One is used for receiving connectivity in the 2 GHz band and the second unit it further spread locally in the 2.4 GHz band.
Is therefore ideal in your home where you can easily create WIFI network. S FreeStation can easily create a Hotspot network. A great advantage of the unit are advanced features that can easily be set via user-friendly web interface. Of course there is support PoE power and most advanced 802.11n protocol. The unit can be powered via the USB port. The main features of the device include:

  • Support QoS
  • option to set the device as a Hotspot
  • support for fast 802.11n
  • ability to manage units of mobile phones iPhone and Android OS
  • advanced wireless configuration section: ACK timeout, RTS, WMM, STBC, etc.
  • advanced configuration options for the wired portion: Port forwarding, firewall, NAT, Static Routes, etc.
  • clear unit configuration via a web interface
  • Integrated nitrous signal strength
  • detailed statistics transmitted data
  • 2x USB

Specifications:
The The
Frequency (MHz) 2412-2462
standards 802.11b/g/n
The maximum transfer rate 300 Mbps
LAN port 2 (1x in PoE, PoE 1x out)
Power 9-24V (only PoE)
Wireless operating modes Client, WDS, Client Router, AP, AP router, Hotspot
Operating modes Bridge, NAT
DHCP server/client Yes/Yes
Output for external antenna Yes
Other outputs 2x USB 2.0 (A connectors)
Encryption WEP, WPA, WPA2
Minimum Sensitivity -97
Operating temperature -30 to 70 ° C
Power regulation Yes
Max. output power 24dBm
number of antennas 2x2 MIMO
1
Beam angle of H/V 30 °/30 °
Gain Antenna 15dBi
Chipset Ralink
Weight 1.4 kg
Operating System ARC OS
Supported OS -
Support for IPv6 transparent (bridge mode)
Default IP 192.168.10.1
Default username/password admin/admin
Package , power cables, PoE injector, 3dBi antenna, mount, plastic ties, manual
Outdoor use Yes

Bussines information

Discomp s.r.o., +420 377 221 177, sales@discomp.cz

Technical parameters

Wireless features

Wireless frequency: 2.4 GHz
WiFi standards: 802.11b/g, 802.11n
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 24
Security: WEP, WPA, WPA2
2.4GHz MIMO: 2 x 2
Type of antenna: Detachable
Internal antennas: 2
Detachable antennas: 1
Antenna gain [dBi]: 15

Connectors and Interfaces

LAN speed: (2) 10/100Mbps
USB ports 2.0: 2
USB: Yes

Power

Power over Ethernet: 9 .. 24V DC
PoE type: PoE-Out + PoE-In
Max. power consumption [W]: 7,5

Physical characteristics

Purpose: Outdoor
Buttons: Reset
Operating temperature [°C]: -30 up to 70
Weight [g]: 1400
Width [mm]: 190
Height [mm]: 190
Depth [mm]: 38

Software

Operating mode: Client, AP Router, Access Point, Client Router (wisp)
IPv6 support: Yes
Default IP address: 192.168.10.1
Default login and password: admin / admin

×
