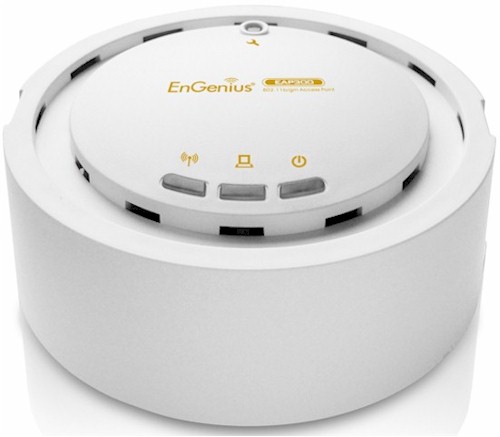

EnGenius EAP-300 802.11 N Multi-Function Access Point Reviewed

Product description

HARDWARE SPECIFICATIONS:

MCU/RF: RTL8196C + RTL8192CE

Memory: 32MB

Flash: 4MB

Physical Interface: LAN:

1 x 10/100 Fast Ethernet RJ-45

Reset Button

Power Jack

LEDs Status

Power/Status

LAN (10/100Mpbs)

WLAN (Wireless connection)

Power Requirement:

Power Supply: 90 to 240 VDC ± 10%, 50/60 Hz

Active Ethernet (Power over Ethernet, IEEE802.3af)

48 VDC/0.375A

Device: 12V/1A


RF Specifications

Wireless Standard: IEEE802.11 b/g/n

Frequency: 2.400 ~ 2.484GHz (b/g/n)

Modulation Technologies: OFDM: BPSK, QPSK, 16-QAM, 64-QAM

DBPSK, DQPSK, CCK

Operating Channels: 11 channels





Transmit Power:



802.11b(2.412 ~ 2.472 GHz)

29 dBm @ 1Mbps

29 dBm @ 2Mpbs

29 dBm @ 5.5Mbps

29 dBm @ 11Mbps



802.11g(2.412 ~ 2.472 GHz)

29 dBm @ 6Mbps

29 dBm @ 9Mbps

28 dBm @ 12Mbps

28 dBm @ 18Mbps

24 dBm @ 24Mbps

24 dBm @ 36Mbps

23 dBm @ 48Mbps

23 dBm @ 54Mbps



802.11n(2.412 ~ 2.472 GHz)

26 dBm @ MCS0/MCS8

26 dBm @ MCS1/MCS9

25 dBm @ MCS2/MCS10

25 dBm @ MCS3/MCS11

24 dBm @ MCS4/MCS12

24 dBm @ MCS5/MCS13

23 dBm @ MCS6/MCS14

23 dBm @ MCS7/MCS15

Receiver Sensitivity:

802.11b (2.412 ~ 2.472 GHz) best ? -93 dBm

802.11g (2.412 ~ 2.472 GHz) best ? -90 dBm

802.11n (2.412 ~ 2.472 GHz) best ? -88 dBm

Antenna: Embedded omnidirectional antenna (Diversity support)

Antenna Gain = 5 dBi


Software Specifications

Topology: Infrastructure/Ad-Hoc

Operation Mode: Access Point/WDS Bridge/WDS AP/Repeater

Multiple BSSID: Supports up to 4 BSSIDs

LAN IP (check validity and DHCP server IP range)

MAC

DHCP range, lease time, client list

VLANs: Supports 802.1q (up to 4 VLANs)

SSID to VLAN mapping

Spanning Tree: Supports 802.1d Spanning Tree Protocol

Wireless mode: 11b/11g/11n

Channel selection (setting varies by country)

Channel bandwidth (Auto, 20MHz, 40MHz)

Transmission rate: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only

VPN: VPN pass-through (PPTP, L2TP, IPSEC)

QoS: WMM

WPS: Software only

Security:

WEP Encryption - 64/128 bit

WPA Personal (WPA-PSK using TKIP or AES)

WPA Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

SSID broadcast enable/disable

MAC Address Filter (AP mode)

WLAN L2 isolation (AP mode)

Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics)


Management

Tx Power Control: Adjust transmit power by dBm

Configuration: Web-based configuration (HTTP)/Telnet

Telnet Server: CLI

Firmware Upgrade: Upgrade firmware via web browser

Administrator Setting: Administrator Username & Password change

Reset Setting:

Reboot (press 1 second). Reset to Factory Default (press 10 second)

System Monitoring: Status Statistic and Event log

SNMP V1 , V2c

MIB: MIB I , MIB II(RFC1213) and Private MIB

Traffic Measurement: Per interface

Auto-channel Selection: Automatically selecting least congested channel

Bandwidth Measurement: IP range and bandwidth management

Backup & Restore: Save & restore settings through Web interface

Diagnosis: IP pinging statistics


Environment & Physical

Temperature Range:

Operating: 0 to 50° C (32° to 122° F)

Storage: -20 to 60° C (-4° to 140° F)

Humidity (non-condensing):

Operating: 90% or less

Storage: 90% of less

Dimensions:

Diameter: 4.73” (120mm)

Height: 1.97” (50mm)

Weight: 0.62 lb. (280g)

Certifications: FCC, CE, IC
