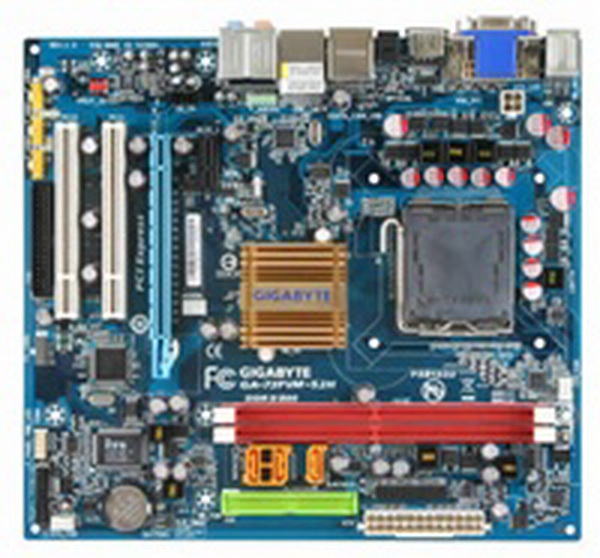

GIGABYTE MB Sc 775 73PVM-S2H, nVidia 7100/630i, VGA, 2x DDR2, 4xSATA2, Raid, 1394, mATX

Product description

Technická podpora: podpora@gigabyte.cz



CPU Support for an Intel Core™ 2 Extreme processor/Intel Core™ 2 Quad processor/Intel Core™ 2 Duo processor/ Intel Pentium processor Extreme Edition/ Intel Pentium D processor/ Intel Pentium 4 processor Extreme Edition/ Intel Pentium 4processor/Intel Celeron processor in the LGA 775 package
**L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB
Chipset NVIDIA GeForce 7100/nForce 630i
Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Support for DDR2 800/667/533 MHz memory modules

Onboard Graphics Integrated in the NVIDIA GeForce 7100/nForce 630i chipset
Audio Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In

LAN RTL 8211B chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

Storage Interface NVIDIA GeForce 7100/nForce 630i chipset:
3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up to 3 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394a T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

USB Integrated in the NVIDIA GeForce 7100/nForce 630i chipset
Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
3 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
3 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 1)
1 x HDMI port
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
