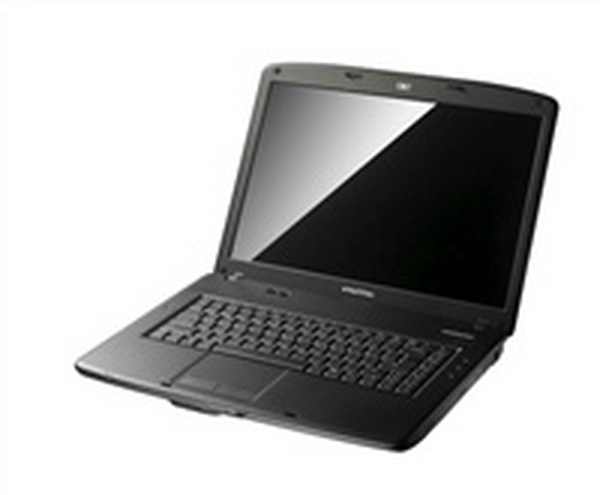

ACER NTB eMachines E520-582G16Mi 15.4"WXGA CB,CM585@2.1GHz,intel 4500M,1x2GB,160GB,DVDRW,Linpus

Product description

eM E520-582G16Mi / 15.4" WXGA CB / CM585 / Mobile Intel Graphics Media Accelerator 4500M (UMA) / 1x2GB / 1x160GB / NSM8X / 802.11bg / 6 cell 2.2 / Linpus


eMachines eME520 Quick Spec (v2-1-1)


Platform1
Intel Celeron mobile processor 575/585(1 MB L2 cache, 2/2.16 GHz, 667 MHz FSB, 31 W), supporting Intel 64 architecture
Mobile Intel GL40 Express Chipset
802.11b/g Wi-Fi CERTIFIED network connection
System memory1, 2, 3
Dual-channel DDR2 SDRAM support
Up to 2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules4
Display
15.4" WXGA high-brightness (200-nit) TFT LCD, 1280 x 800 pixel resolution
Graphics1
Mobile Intel GL40 Express Chipset with integrated 3D graphics, featuring Intel Graphics Media Accelerator 4500M (Intel GMA 4500M) with up to 1759 MB of Intel Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft DirectX 10
Dual independent display support
16.7 million colors
External resolution/refresh rate:
· 2048 x 1536: 75/60 Hz
· 1920 x 1440: 85/75/60 Hz
· 1920 x 1200: 75/60 Hz
· 1920 x 1080: 100/85/75/60 Hz
· 1600 x 1200: 120/100/85/75/60 Hz
· 1600 x 900: 120/100/85/75/60 Hz
· 1400 x 1050: 85/75/60 Hz
· 1280 x 1024: 120/100/85/75/60 Hz
· 1280 x 960: 85/75/60 Hz
· 1280 x 768: 85/75/60 Hz
· 1280 x 720: 100/85/75/60 Hz
· 1024 x 768: 120/100/85/75/60 Hz
· 800 x 600: 120/100/85/72/60 Hz
MPEG-2/DVD acceleration
WMV9 (VC-1) acceleration
Audio
High-definition audio support with two built-in stereo speakers
MS-Sound compatible
Storage1
120/160/250/320 GB or larger hard disk drive5
Optical media drive1
8X DVD-Super Multi double-layer drive:
· Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL (double-layer), 6X DVD-R DL (double-layer), 6X DVD+R DL (double-layer), 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
· Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL (double-layer), 4X DVD+R DL (double-layer), 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM
Communication1
Video conference:
· Integrated webcam, 310K-megapixel resolution, featuring enhanced technology for low-light environments
· Built-in microphone
WLAN: 802.11b/g Wi-Fi CERTIFIED network connection
LAN: Fast Ethernet, Wake-on-LAN ready
Dimensions and weight1
364.6 (W) x 273.6 (D) x 27.0/38.4 (H) mm (14.4 x 10.8 x 1.1/1.5 inches)
2.80 kg (6.17 lbs.) with 6-cell battery pack
Power1
ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
48.8 W 4400 mAh 6-cell Li-ion battery pack:
· 3.0-hour battery life6
3-pin 65 W AC adapter
Special keys and controls1
88-/89-key keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel
Touchpad pointing device
12 function keys, four cursor keys, two Windows keys, hotkey controls, embedded numeric keypad, international language support
Easy-launch button: WLAN
I/O ports1
Two USB 2.0 ports
External display (VGA) port
Headphone/speaker/line-out jack
Microphone-in jack
Ethernet (RJ-45) port
DC-in jack for AC adapter
Software
eMachines GameZone
Adobe Reader
Corel WinDVD
Launch Manager
NTI CD/DVD Maker?
Norton Internet Security?
Microsoft Works 8.5 with Office Home and Student 2007 Trial1
Optional items
1 GB/2 GB DDR2 667 MHz soDIMM module
3-pin 65 W AC adapter
External USB floppy disk drive
eMachines recommends Windows Vista Home Premium.
1. Specifications vary depending on model.
2. Up to 1 GB of available system memory may be allocated for system resource requirements.
3. Shared system memory may be allocated to support integrated graphics, depending on system memory size and other factors. Actual system memory available to the operating system will be reduced by the amount of dedicated and shared system memory utilized by this graphics solution and resources required by the operating environment.
4. A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
5. 1 GB is 1 billion bytes. Actual formatted capacity is less and may vary depending on preloaded materials and operating environment.
6. Battery life varies depending on product specifications, computer settings, and applications or features launched, and may be reduced if Windows Aero? is enabled. All batteries' maximum capacity diminishes with time and use.
In a continuing effort to improve the quality of our products, information in this document is subject to change without notice. Images shown are only representations of some of the configurations available for this model. Availability may vary depending on region.
As a phenomenon known to thin-film transistors (TFTs), liquid crystal displays (LCDs) commonly exhibit a small number of discoloration dots, as so-called "non-conforming pixels." This phenomenon is a limitation of TFT LCD technology, not a product defect, and as such is not covered by Acer's warranty.
