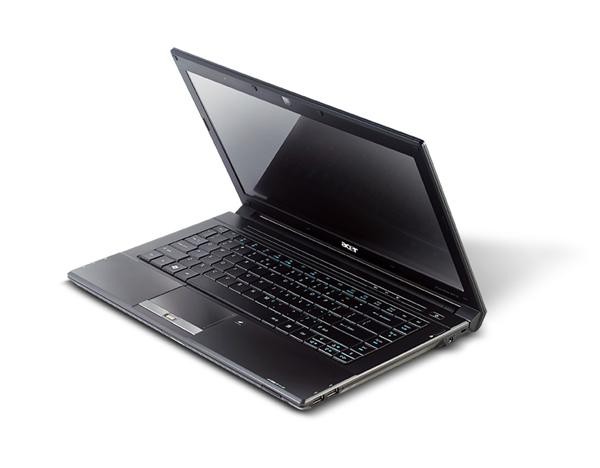

ACER NTB TM8471-353G32MN, 14.0 WXGA LED,C2S SU3500, intel 4500HD, 1+2GB, 320GB, DVDRW, DV Cam, BT, FP, VB+XPP

Product description

TM8471-353G32MN / 14.0" WXGA / SU3500 C2S / Mobile Intel® Graphics Media Accelerator 4500M (UMA) / 1x2GB&1x1GB DDR3 / 1x320GB / NSM8X / SP1x2HMW / 6 Cells 2.8 / 0.3DV CrystalEye / BT / FP / Slim&Light / VB+XPP obecný popis modelové řady:
TravelMate 8471 Specifications (v12-1-2)

Operating system1
Genuine Windows 7® Professional

Genuine Windows Vista® Business

Platform1
Intel® Centrino® 2 processor technology, featuring:

·         Intel® Core™2 Duo processor SU9400/SU9600 (3 MB L2 cache, 1.40/1.60 GHz, 800 MHz FSB, 10 W), supporting Intel® 64 architecture

Intel® Centrino® processor technology, featuring:

·         Intel® Core™2 Solo processor SU3500 (3 MB L2 cache, 1.40 GHz, 800 MHz FSB, 5.50 W), supporting Intel® 64 architecture

Mobile Intel® GS45 Express Chipset

Intel® Wireless WiFi Link 5100 802.11a/b/g/Draft-N Wi-Fi CERTIFIED™ network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™3, 4 wireless technology

System memory1, 5, 6
Dual-channel DDR3 support

•   Up to 4 GB of DDR3 1066 MHz memory, upgradeable to 8 GB using two soDIMM modules (for 64-bit OS)

•   Up to 2 GB of DDR3 1066 MHz memory, upgradeable to 4 GB using two soDIMM modules7 (for 32-bit OS)

Display and graphics1
14" WXGA HD 1366 x 768 pixel resolution, high-brightness (200-nit) Acer LED-backlit TFT LCD, supporting simultaneous multi-window viewing via Acer GridVista™

16:9 aspect ratio

Super-slim design

Mobile Intel® GS45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500MHD (Intel® GMA 4500MHD) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10

Dual independent display support

16.7 million colors

External resolution/refresh rate:

·         2048 x 1536: 60 Hz

·         1920 x 1440: 75/60 Hz

·         1920 x 1080: 100/85/75/60 Hz

·         1856 x 1392: 75/60 Hz

·         1792 x 1344: 75/60 Hz

·         1600 x 1200: 100/85/75/60 Hz

·         1600 x 900: 60 Hz

·         1400 x 1050: 60 Hz

·         1366 x 768: 85/75/60 Hz

·         1280 x 1024: 120/100/85/75/60 Hz

·         1280 x 960: 85/60 Hz

·         1280 x 768: 60 Hz

·         1152 x 864: 100/85/75 Hz

·         1024 x 768: 120/100/85/75/60 Hz

·         800 x 600: 120/100/85/72/60 Hz

·         640 x 480: 120/100/85/75/60 Hz

MPEG-2/DVD decoding

WMV9 (VC-1) and H.264 (AVC) decoding

Storage subsystem1
160/250/320/500 GB or larger hard disk drive8, with enhanced Acer DASP (Disk Anti-Shock Protection)

80 GB Intel® X25-M solid state drive8, 9

Multi-in-1 card reader, supporting Secure Digital™ (SD) Card, MultiMediaCard (MMC), Memory Stick™ (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)

8X DVD-Super Multi double-layer drive:

·         Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL (double-layer), 6X DVD-R DL (double-layer), 6X DVD+R DL (double-layer), 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM

·         Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL (double-layer), 4X DVD+R DL (double-layer), 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM

Dimensions and weight
341.9 (W) x 235 (D) x 25.9/29.6 (H) mm (13.46 x 9.25 x 1.01/1.16 inches)

1.98 kg (4.37 lbs.) with 6-cell battery pack

Power subsystem
ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes

62.16 W 5600 mAh 6-cell Li-ion battery pack:

·         8-hour battery life10, 11

Acer PowerSmart 3-pin 65 W AC adapter

ENERGY STAR®

Input devices1
88-/89-/93-key keyboard with inverted "T" cursor layout

10 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support

Multi-gesture touchpad pointing device, supporting:

·         Circular-motion scrolling

·         Pinch-action zoom

·         Page flip

Acer PowerSmart key

Easy-launch keys: Acer Backup, Communication®, touchpad lock

Audio
High-definition audio support

MS-Sound compatible

Built-in microphone

Communication
Acer Video Conference1, featuring:

·         Integrated Acer Crystal Eye webcam, with 640 x 480 @ 30 fps resolution image capture, supporting enhanced Acer PrimaLite™ technology

WLAN1, 4:Intel® Wireless WiFi Link 5100 802.11a/b/g/Draft-N Wi-Fi CERTIFIED™ network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™3 wireless technology

WPAN1: Bluetooth® 2.1+EDR (Enhanced Data Rate)

WWAN1: UMTS/HSPA at 8501/900/19001/2100 MHz and quad-band GSM/GPRS/EDGE (850/900/1800/1900 MHz) upgradeable to 7.2 Mb/s HSDPA and 5.7 Mb/s HSUPA1, supporting receiver diversity and equalizing at 2100 MHz

LAN: Gigabit Ethernet, Wake-on-LAN ready, ASF 2.0

I/O interface
Acer EasyPort IV connector

Acer Bio-Protection fingerprint reader1
