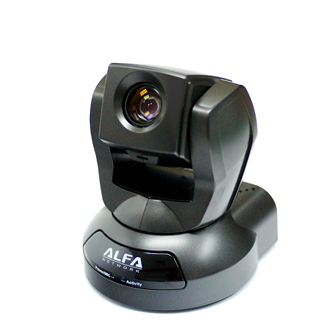

Alfa Network AW-600P IP camera, 10x zoom, 270°/135°, MPEG4

Product description

MPEG and MPEG4 Video Compression Selectable
Pan: Range 270 degree, Tilt: Range 135 degree
Built-In Web Server
Motorized Pan / Tilt / 10X Optical Zoom Lens and Digital Zoom Control
Fast Ethernet 10/100 Mbps Connectivity
Built-in omni-directional microphone
Internal Microphone Built-in
Support Static IP or Dynamic IP (DDNS)
Support 2-Way Audio
CCD Sensor for superior quality image
Easy setup and Installation (UpnP supported)
Remarkable motion detection & e-mail alerts
16-channel monitoring software

Specification :
Model AW-600P
Networking Protocols TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS , DHCP
System CPU: Trimedia PNX1300
RAM:16MB SDRAM
ROM:4MB Flash ROM
Image Pick-up Device 1/4 inch color CCD Sensor
Physical 10BaseT Ethernet or 100 BaseT Fast Ethernet
Microphone Omni-directional
Frequency: 20-20,000Hz
S/N ratio: more than 58dB
Video Algorithm Supported MPEG4 SP and JPEG
3 motion detection window

Up to 30/25 frames at 176x120 or 176x144
Up to 30/25 frames at 352x240 or 352x288
Up to 30/25 frames at 704x480 or 704x576
Audio 32kbps,24kbps,8kbps
Acoustic echo cancellation
Full duplex audio communication
Lens Focal length 4.2~42mm
Aperture F1.8~2.9
10X digital zoom
10X optical zoom
Camera spec. 1/4 inch color CCD sensor
704x480 or 704x576
Typical: 1.5 Lux / F1.8
AGC,AWB
Electronic shutter:1/60(1/50) to 1/120,000 secretary
LED Indicator Dual color system status indicator
Viewing System requirement

Operating system: MICROSOFT Windows 98SE/ME/2000/XP
Browser : Internet Explorer 6.x or above
Power Consumption :MAX 12W
Universal switching power supply included
Adapter input: 100-240VAC, 50/60Hz, 0.4A
Adapter output: 12VDC, 1.5A
Operating Environment Temperature :0-40°C/32-104°F
Humidity:85%RH
Dimension 104.5mm * 104.5mm * 125mm
Weight Net. 420g
