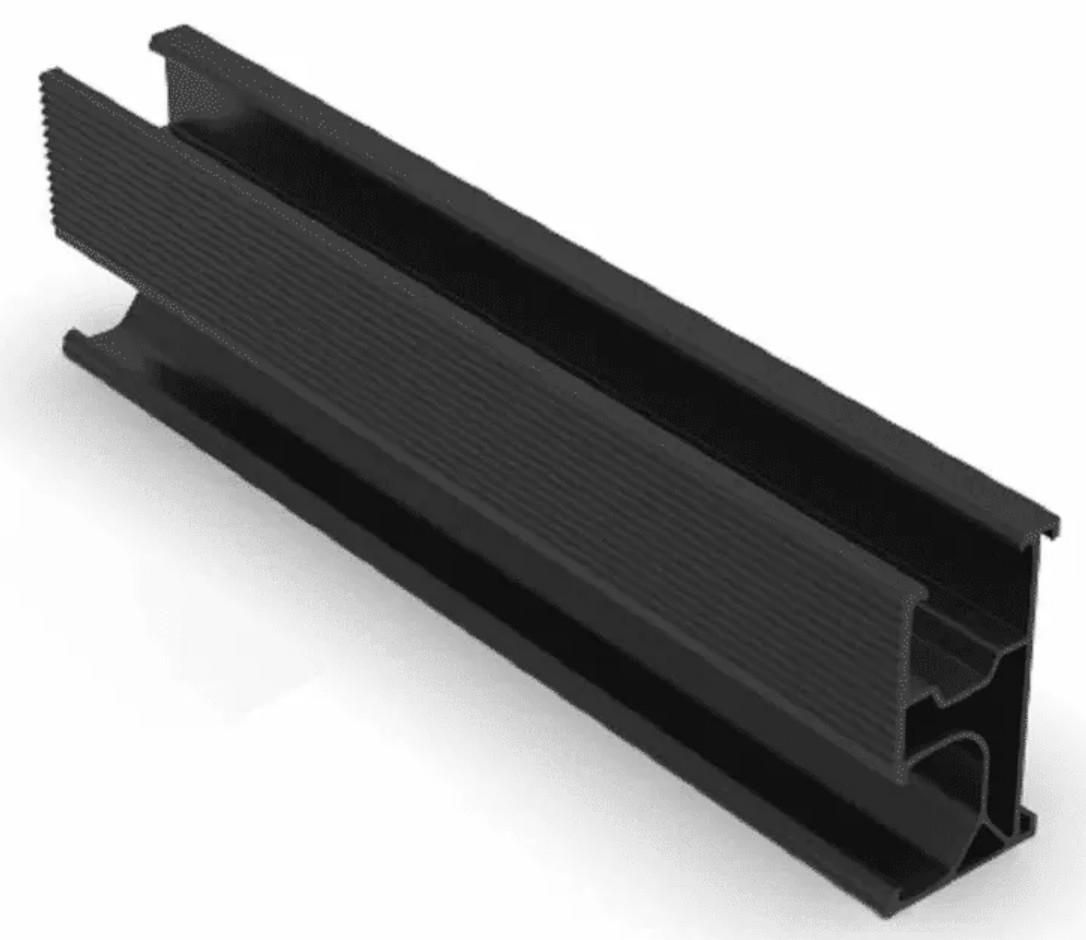

Aluminum profile for mounting solar panels EBK-B rail 2350mm

Product description

The ERK-R52-2350 base rail is used for mounting panels. Panels are secured to the rail using ERK-AIC and ERK-FEC-35 couplers.

Brief Installation Procedure for the Entire System

• Attach ERK-SFR-02 hooks for the lower rail to each rafter along the full length of the solar field.
• Repeat the process for the upper rail hooks. The spacing between rails should be 65–75% of the panel height.
• Use locks to attach the ERK-R52-2350 rails to the hooks. Connect individual sections with the ERK-SFR-01 coupler.
• Place the panels onto the prepared pair of rails and secure them using ERK-AIC clamps (inner) and ERK-FEC-35 clamps (outer).
