Asus Tinker Board 2 UniFi Controller, rackmount

Product description

Asus Tinker Board 2 UniFi Controller is a compact device with a pre-installed UniFi Controller with the possibility of remote management of all Unifi AP units based on the very quality HW platform Asus Tinker Board 2 with enough power to manage up to 50 devices (UniFi AP, UniFi Switch, USG), which is 2x power versus the standard UC-CK device from Ubiquiti Networks. Thanks to this device, you no longer need to install the UniFi Controller on desktop PCs or servers with much higher power consumption.

Key Features

• Pre-installed UniFi Controller - power to manage UP TO 50 DEVICES
• 1.5 GHz Quad-core ARM Cortex-A53 + 2 GHz Dual-core ARM Cortex-A72 CPU, 2GB RAM
• 3× USB 3.2 ports + 1× USB-C 3.2
• MicroSD slot
• Gigabit Ethernet port
• Maximum consumption 7 W - power via 5.5/2.5mm connector (12 - 19 V DC)
• Quiet operation without fan

Easy installation

Installing the Asus Tinker Board 2 UniFi Controller is very simple - just connect to the network with an ethernet cable, connect the power source, wait for booting (takes about 2 minutes) and using web browser, you simply enter the IP address that your device received from the dhcp server, or the fallback address 192.168.1.30.

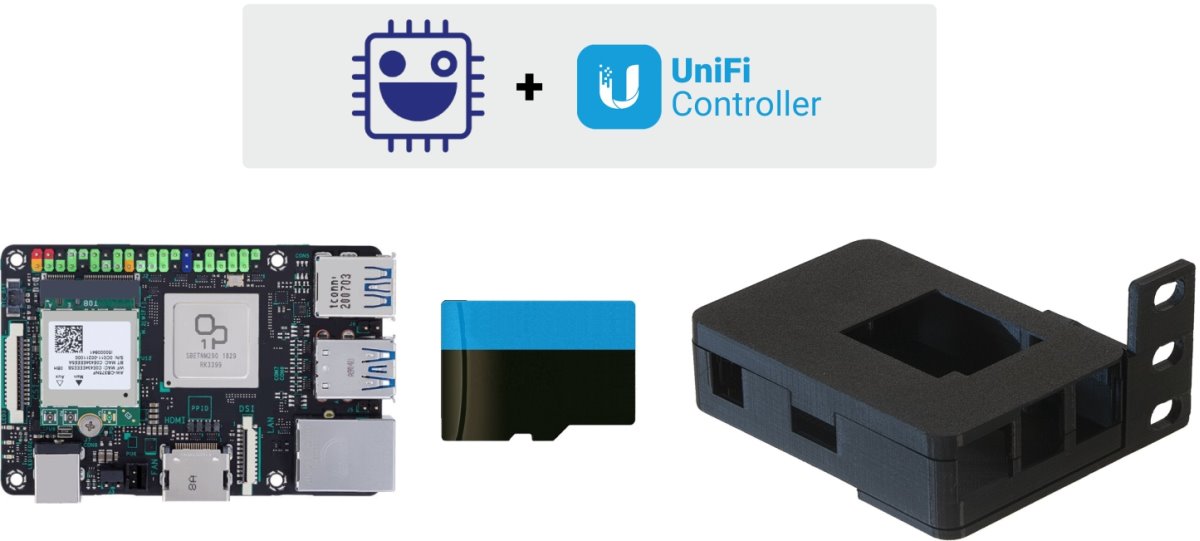

Package contents

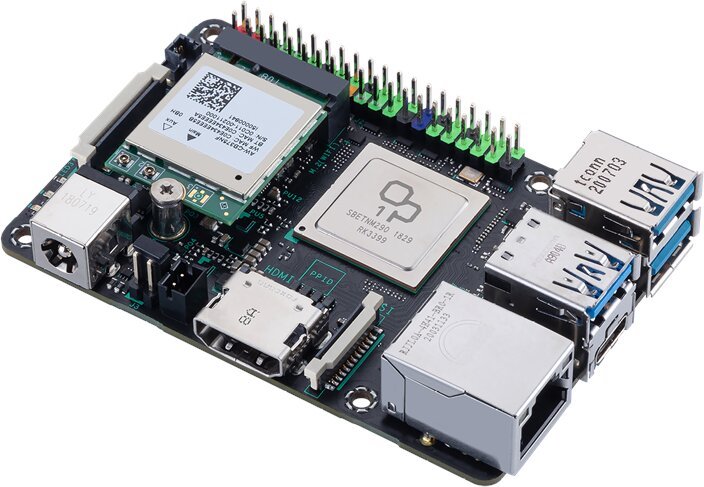

• Device - Asus Tinker Board 2
• MicroSD card with pre-installed UniFi Controller
• Power jack adapter

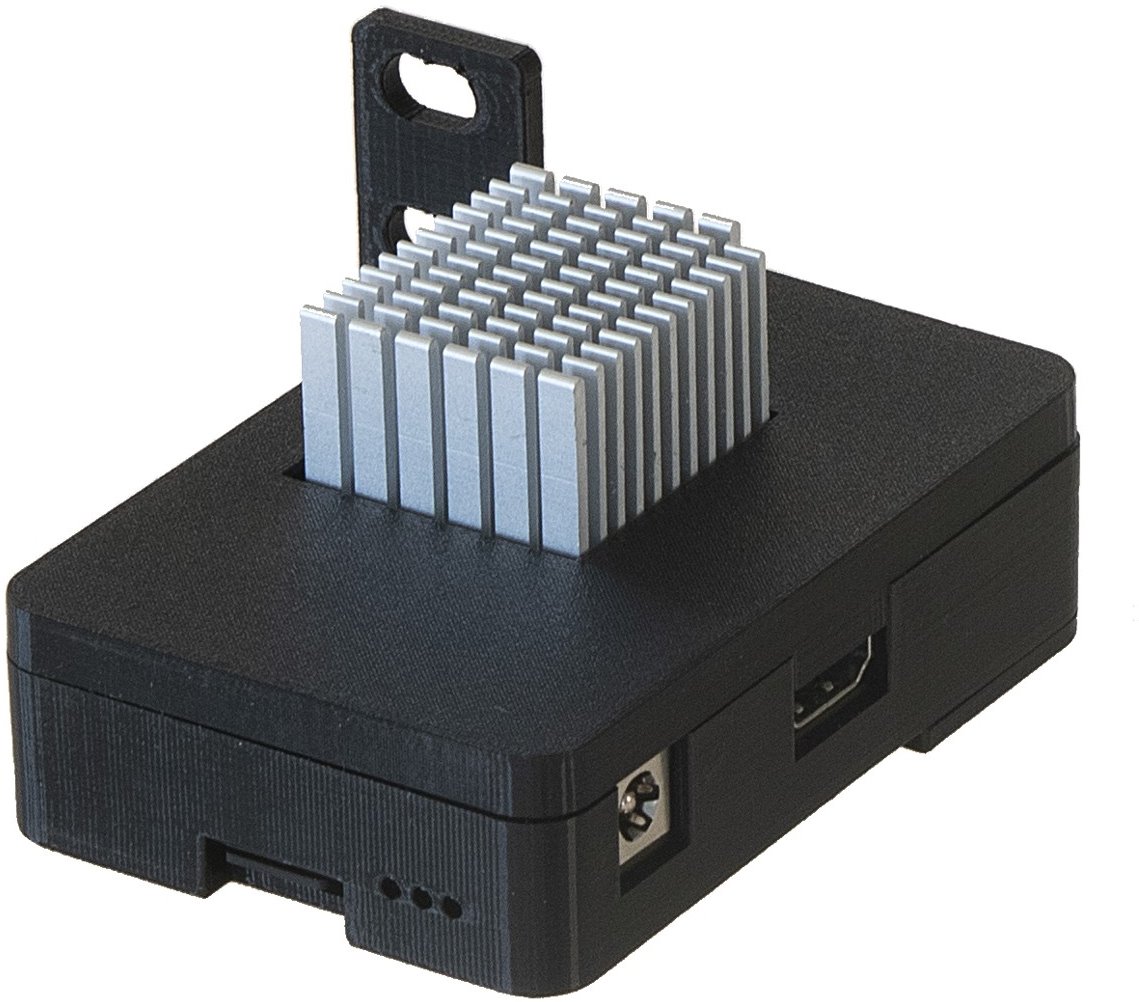

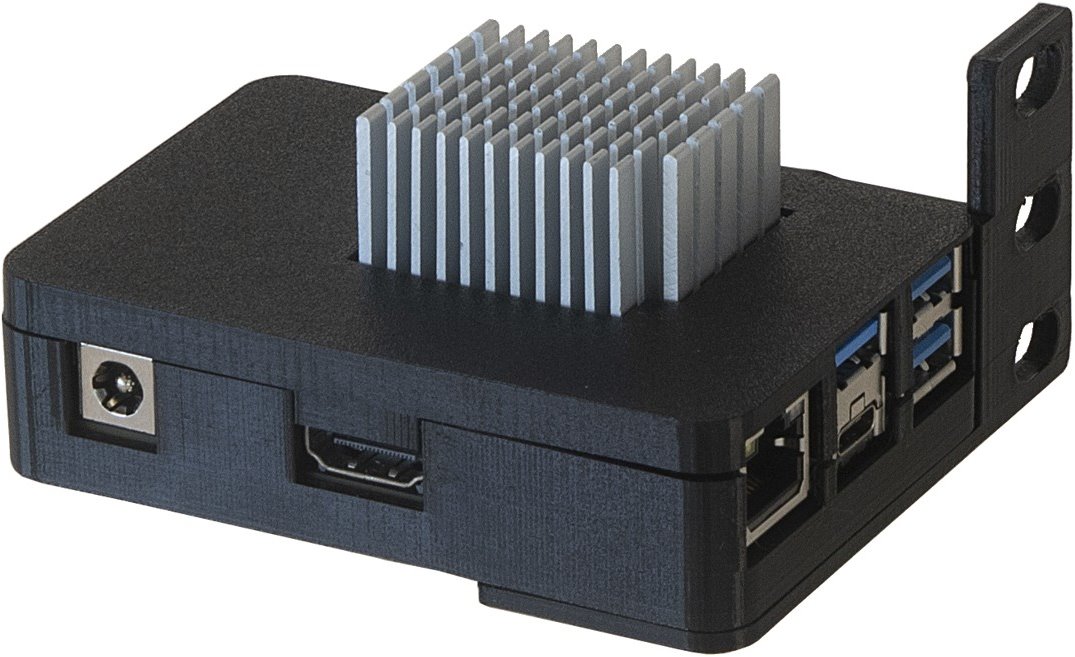

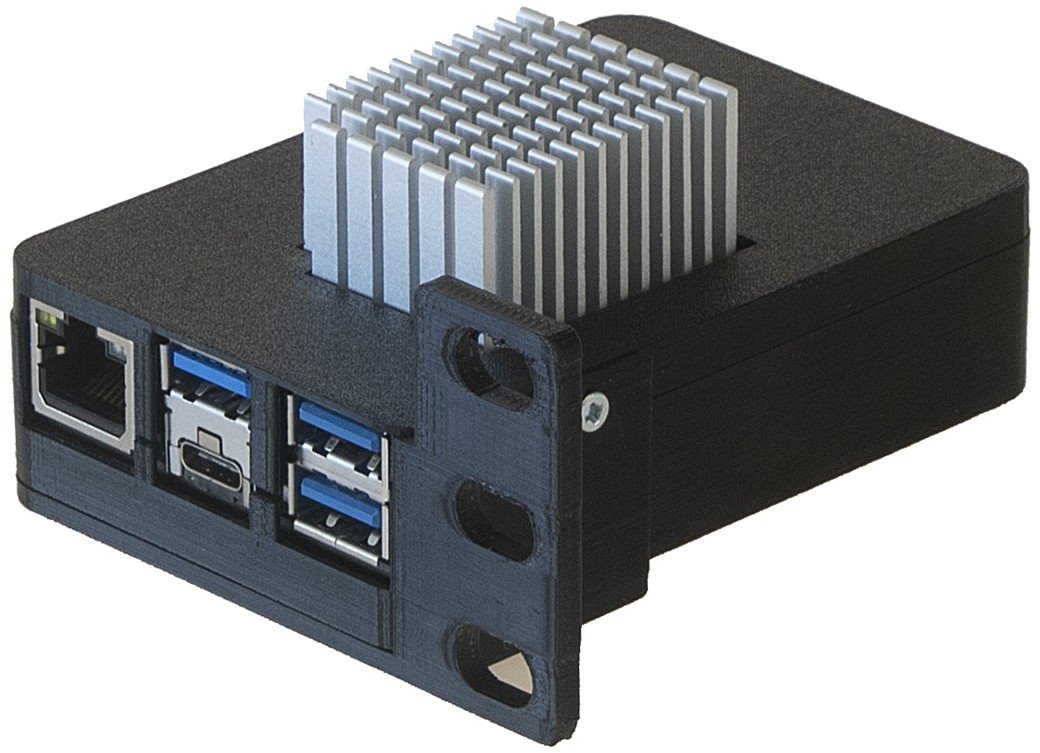

• Rackmount box
