Bazar - Ubiquiti UISP-Dish parabolic antenna, 30dBi, 5-6GHz
Your price excl. VAT
125.19 EUR
| Recycling fee | 0.21 EUR |
|---|---|
| Your price with RF | 125.40 EUR |
| Your price incl. VAT (21%) | 151.73 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | B10903469 | |
| Part No. | B-UISP-Dish | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
Damaged carton
B-UISP-Dish
Unpacked
125.19 EUR
AF-5XHD
310.18 EUR excl. VAT
375.40 EUR incl. VAT
stiqtyfree:114
_17:
avail:2
infocode: stock
queu:
In Stock
RP-5AC-Gen2
179.23 EUR excl. VAT
216.95 EUR incl. VAT
stiqtyfree:141
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 2,0
Cross-Pol Isolation [dB]:
20
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
6,5
Azimuth beam width (-6dB) [°]:
6,5
Antenna type:
Directional
Antenna gain [dBi]:
30
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
WaveGuide, (1) SMA male, (2) RSMA male
Physical characteristics
Designed for mast diameter [mm]:
40 up to 90
Wind load [km/h]:
200
Protection class:
IPX6
Purpose:
Outdoor
Material:
Aluminum, Steel, UV stabilized polycarbonate
Weight [kg]:
4,5
Width [mm]:
650
Height [mm]:
650
Depth [mm]:
200
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
Point-to-point (PtP) parabolická anténa, která umí efektivně pracovat ve velmi širokém frekvenčním rozsahu od 5.150 až po 6.875 GHz. UISP Dish je směrová parabolická anténa s 30 dBi ziskem a speciálním WaveGuide konektorem ke kterému díky přiloženému adaptéru lze tuto anténu snadno připojit pouze k rádiu airFiber 5XHD (AF 5XHD) nebo airMAX Rocket Prism AC 5 GHz (RP 5AC) pro příjem signálu. WaveGuide konektor není kompatibilní s PrismStation a IsoStation jednotkami.

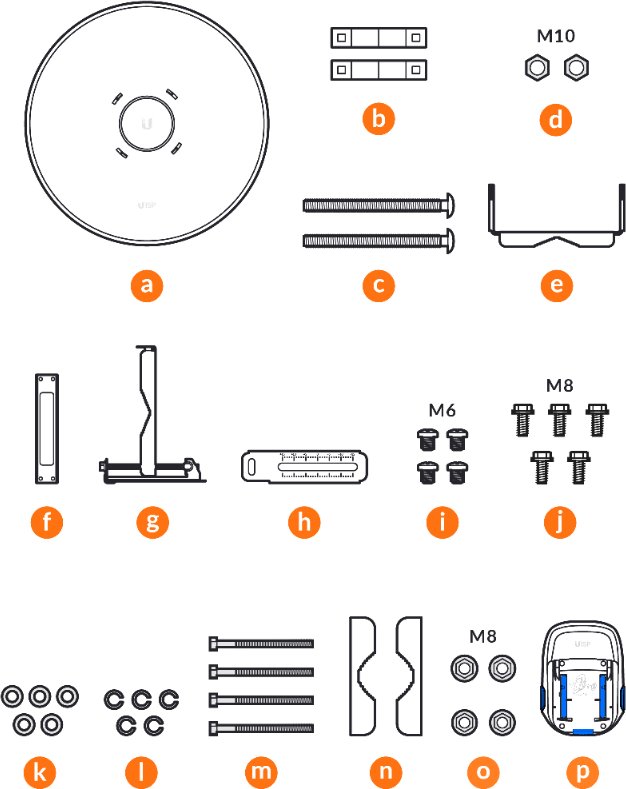

Obsah balení
Download
Datasheet Quick Start GuideGPSR
