BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH

We are sorry, this product is no longer in our offer.

BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
×
0/0
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
BELDEN UTP cable solid Cat6, 305m, 23AWG, LSZH
Special offer
Manufacturer

OEM

Code10420353
Part No.7965ENH
Parameters
Download
GPSR

Product description

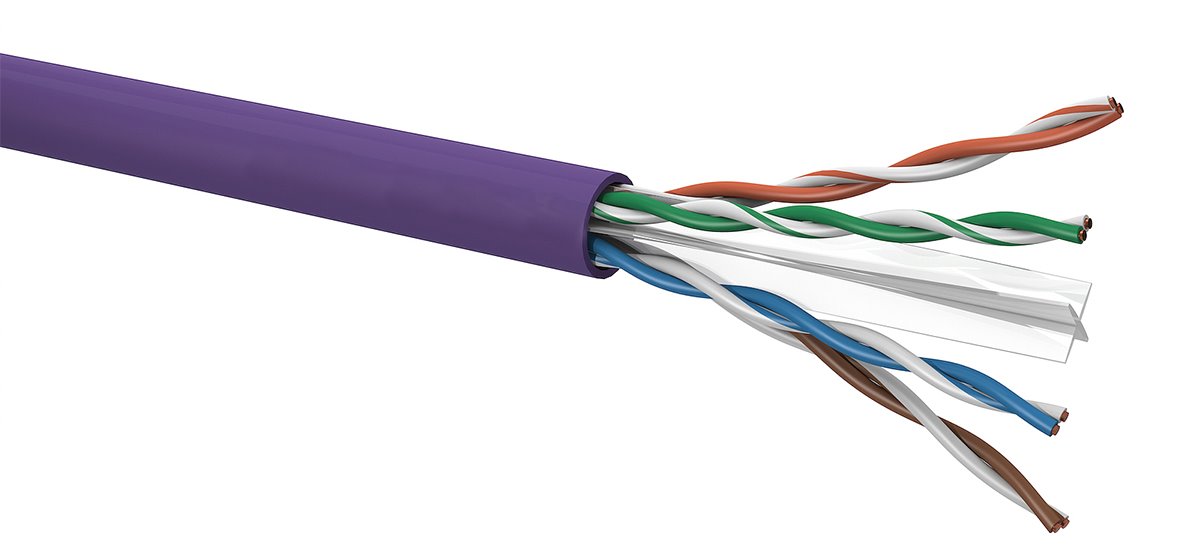

Belden installation cable - category 6 is a high-quality cable designed for horizontal structured cabling inside buildings. The cable is supplied in an unshielded version with the LSOH sheath type. The cable conductors are made of high-quality AWG23 copper wire with a anti-crosstalk - the individual pairs are separated by a plastic cross. The cable is marked by 1m in length and is delivered in a highly durable cardboard box.

Download

Datasheet

GPSR

Contact:
DISCOMP s.r.o.
Cvokařská 1216/8, 30100 Plzeň
info@discomp.cz

Bussines information

Václav Harmáček mladší, +420 377 221 177 , jr.vaclav.harmacek@discomp.cz

Technical parameters

Physical characteristics

Shielding type: UTP (U/UTP)
Installation temperature [°C]: 0 up to 50
Weight [kg/km]: 37
Conductor wire gauge: AWG23
Cable type: Solid
Conductor material: Copper
Sheath material: LSOH
Length [m]: 305
Outer diameter [mm): 5,4
Color: Violet

General

Category: CAT6
Bandwidth [MHz]: 250
Ethernet support: 1000 Base-T
CPR class: Eca
