Cambium Networks cnMatrix MX-EX1010PXA-E PoE Switch - Bazar
Your price excl. VAT
227.66 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 227.73 EUR |
| Your price incl. VAT (21%) | 275.55 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | B17700131 | |
| Part No. | B-MX-EX1010PXA-E | |
| Warranty | 12 months | |
You have a choice of 2 variantscompare all
Použité
B-MX-EX1010PXA-E
Used
227.66 EUR
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Serial port:
RJ45
USB ports 2.0:
1
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
75
Max. power consumption [W]:
11
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Width [mm]:
210
Height [mm]:
44
Depth [mm]:
250
General
Switchning capacity [Gbps]:
20
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
120
Software
Web management:
Yes
Management:
Web management, Cambium cnMaestro cloud, SSH, Telnet
Features:
VLAN, QoS, DHCP snooping
Video
Product description
The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.

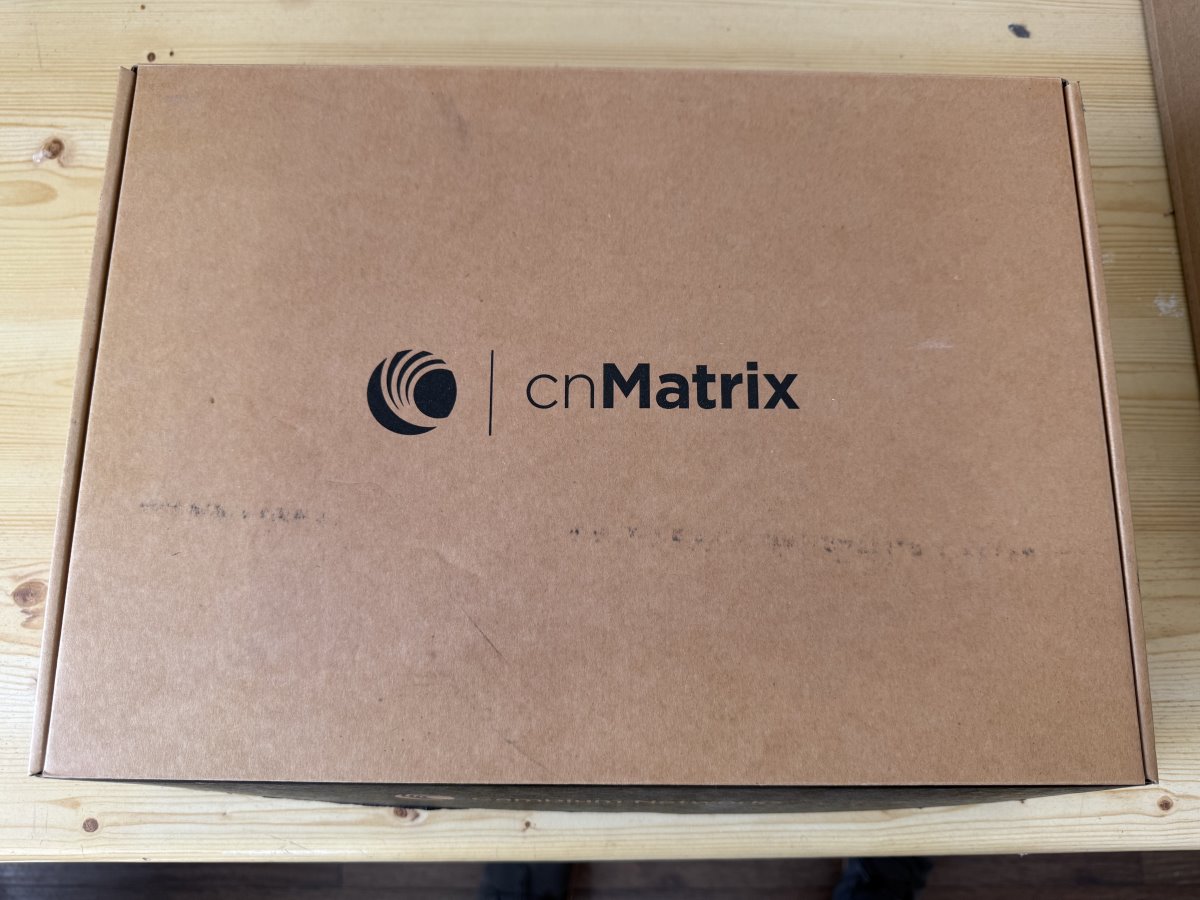

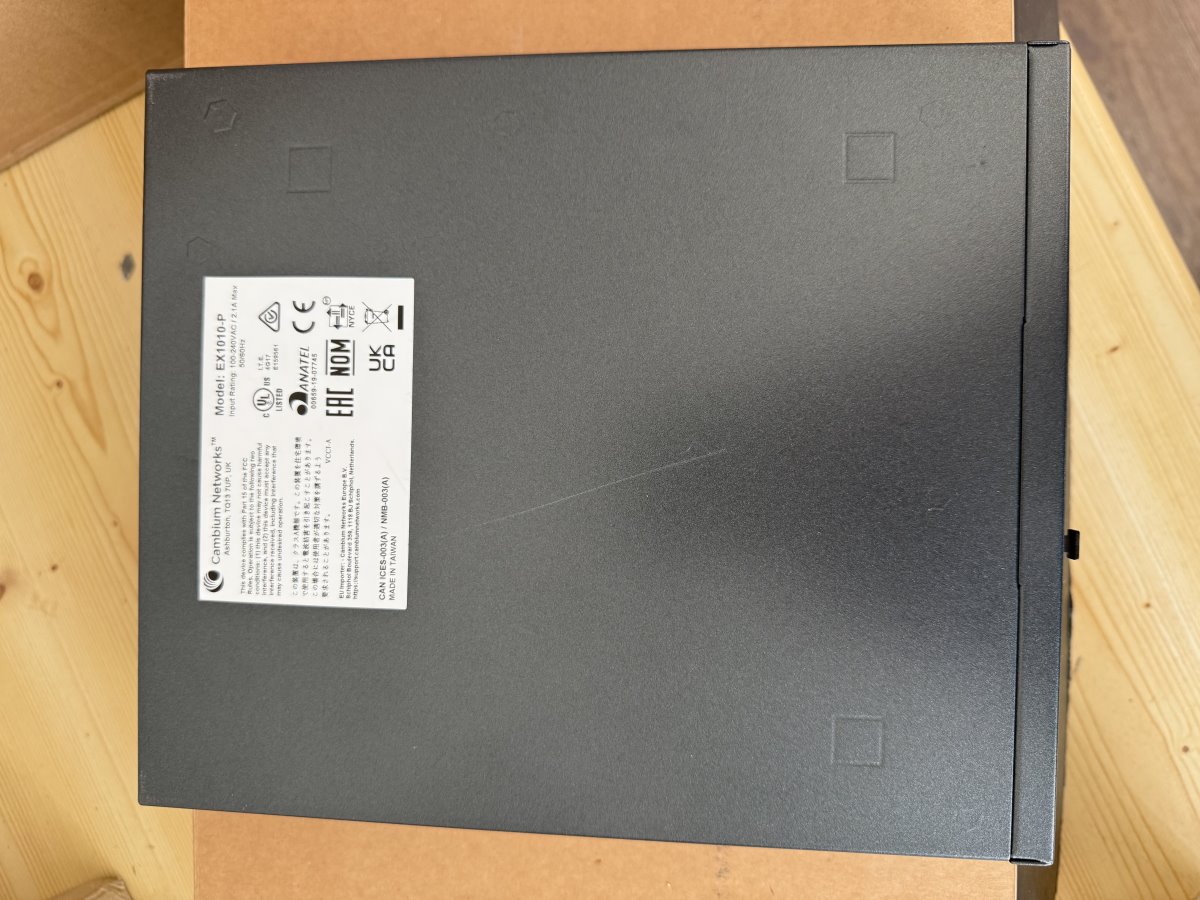

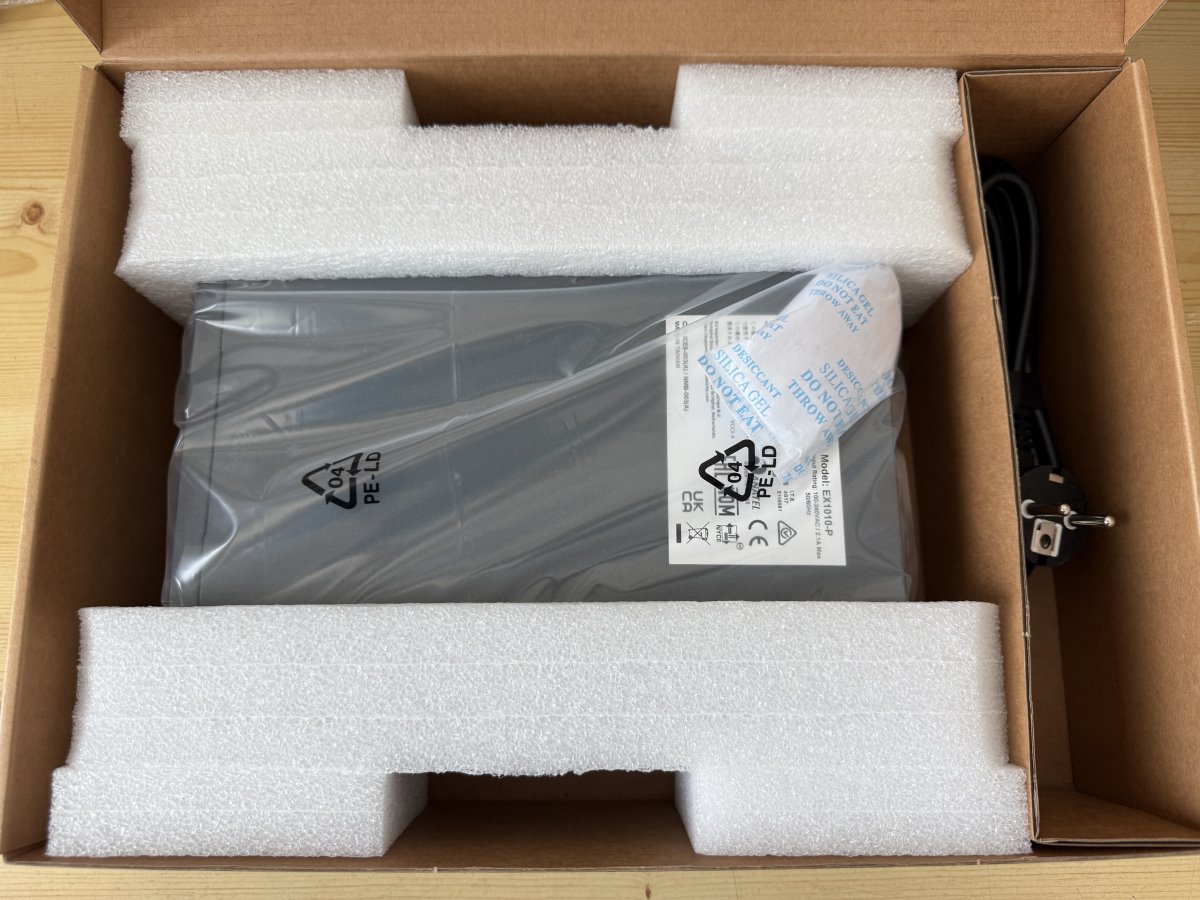

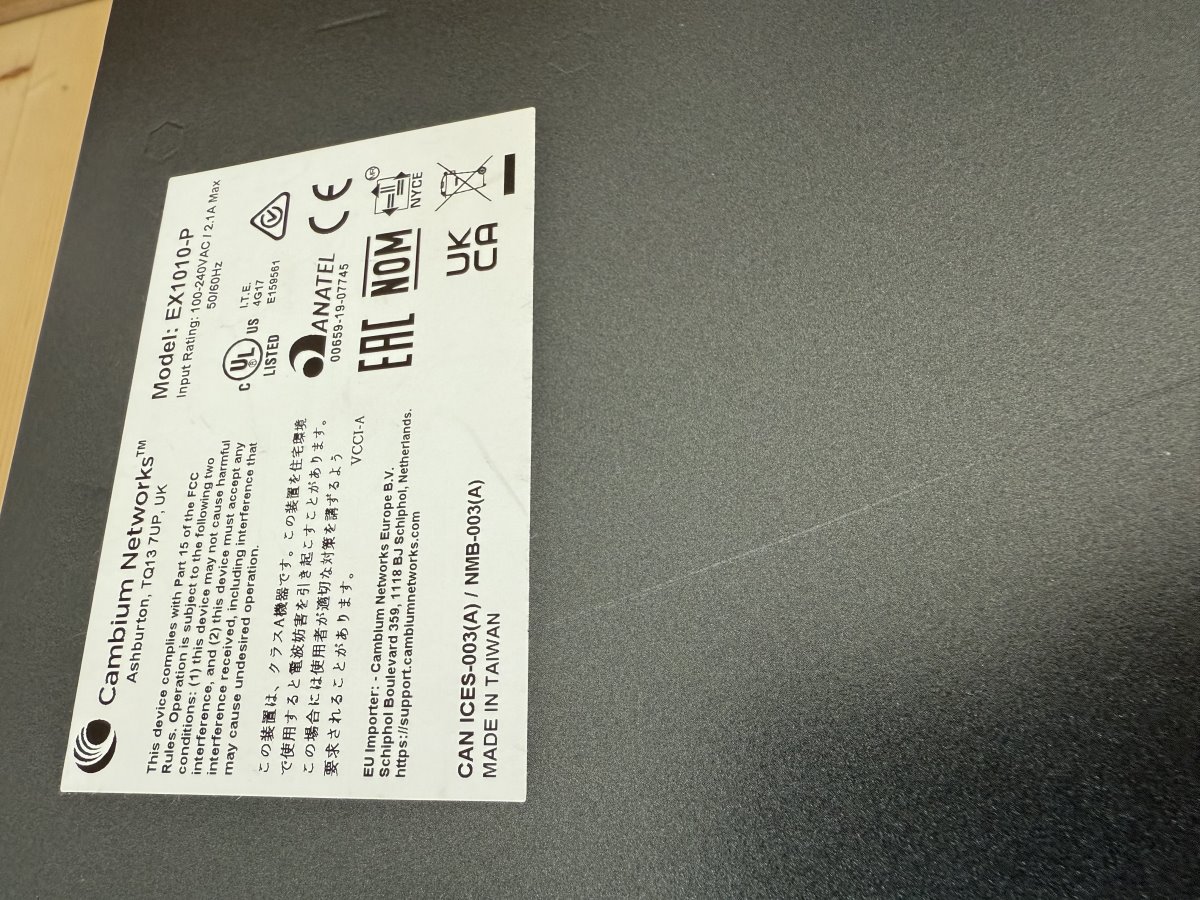

The package of product is complete including power cable. There is a scratch on the bottom side of device, please see attached photos in gallery.

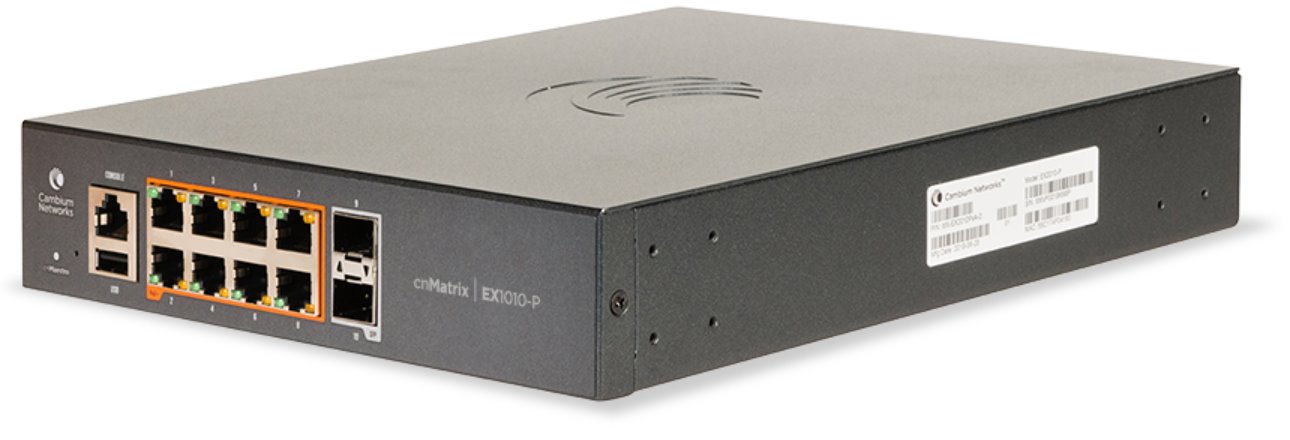

Gigabit L3 PoE switch Cambium Networks EX1010-P is equipped with 8 metal PoE+ 1G ports and 2x 1G SFP uplink ports. The switch has an RJ-45 console port. The power supply of the switch is solved by means of a built-in AC power supply and the PoE budget switch is 75 W. The switch is 1U high, half-width and only 250 mm deep. The switch is designed as a small access switch with PoE power supply.
Key Features
Package Contents
