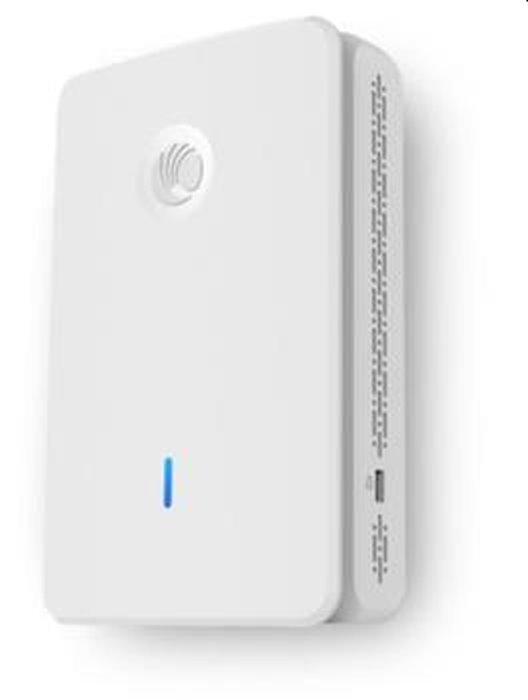

Cambium Networks cnPilot e430H wall plate
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
400
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
21
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
4, 5
Connectors and Interfaces
LAN speed:
(4) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
9
Power via connector/terminal:
48V / 1A
Physical characteristics
Purpose:
Indoor
Operating temperature [°C]:
0 up to 45
Weight [g]:
390
Width [mm]:
94
Height [mm]:
147
Depth [mm]:
34
Software
Operating mode:
Access Point
IPv6 support:
Yes
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Video
Product description

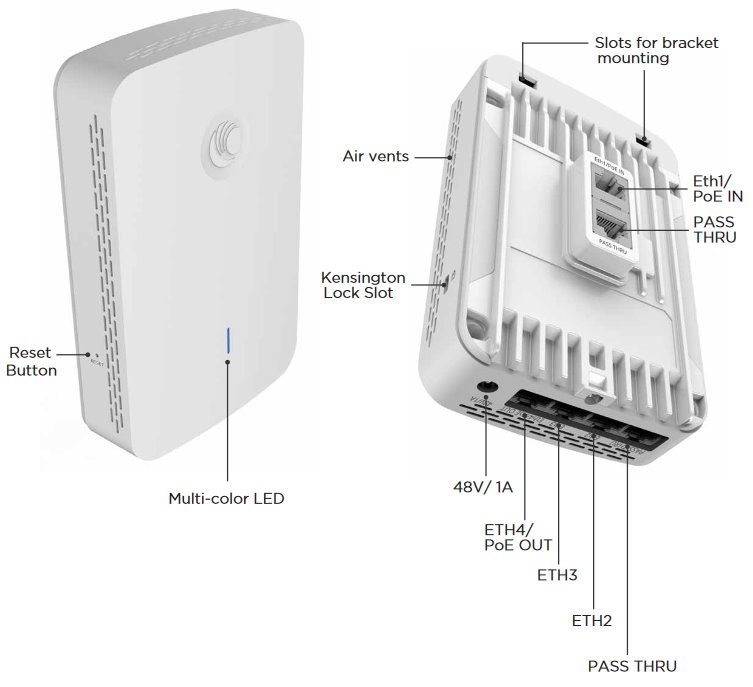

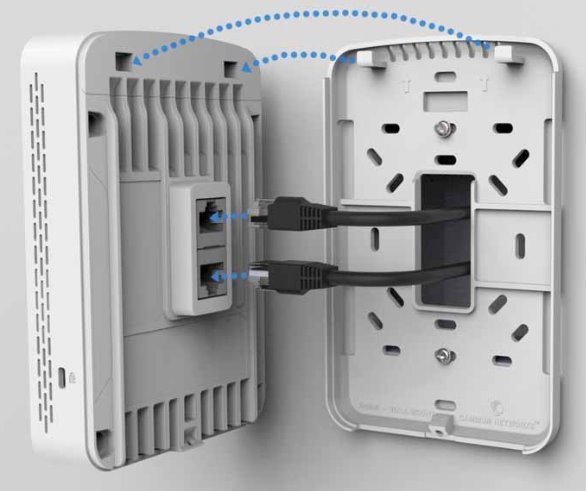

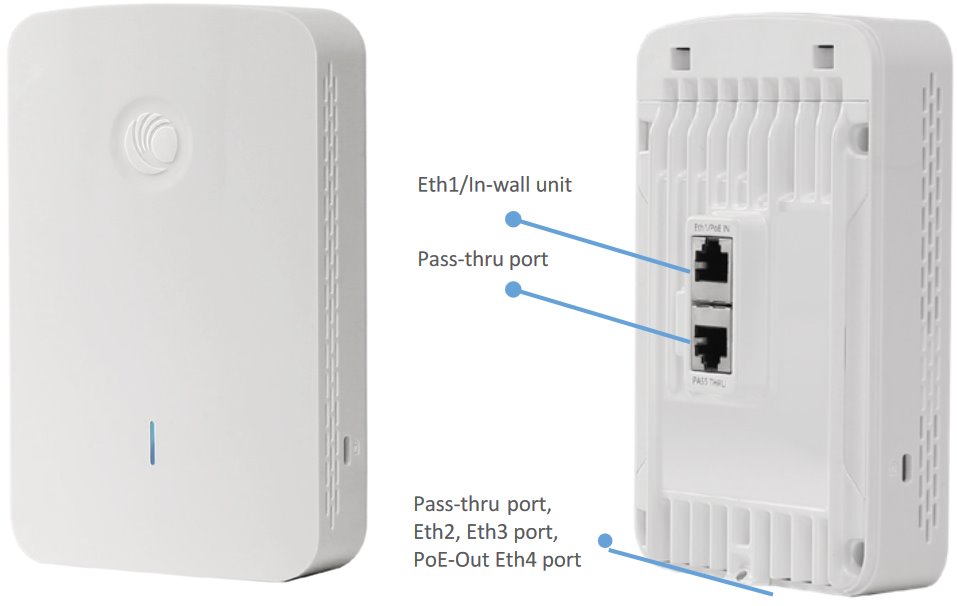

802.11ac wave2 dual-band 2.4 GHz and 5 GHz 2x2:2 MIMO Wall plate Access Point, 1.3 Gbps data rate, supported standards 802.11 h/d/r/u/w, 4 x 1 Gig Ethernet (10/100/1000 Mbps) shielded RJ45 ports, 2 x pass-through shielded RJ45 ports, integrated 3 dBi (2.4 GHz), 4 dBi (5 GHz) omnidirectional dual-linear antenna, Max TX Power 22 dBm at 2.4 GHz and 21 dBm at 5 GHz, supporting 256 concurrent clients, autonomous controller-less operations (roaming) or managed mode (Cloud or On-Premises), 16 SSIDs across 2 radios, WMM, Band steering, Automatic Channel Selection, Mesh, tunneling (L2TP/L2oGRE/PPPoE), Presence Locationing API, Packet capture, Wireless sniffer, WiFi analyzer, ACL/DNS-ACL, single gang wall bracket, temperature range 0°C to +40°C, 5 year Limited Lifefime warranty
Download
DatasheetGPSR
