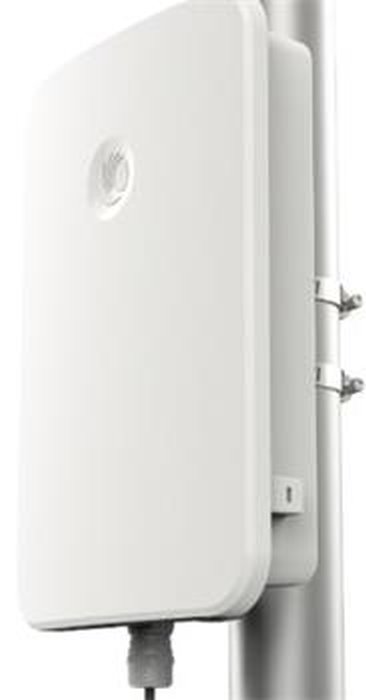

Cambium Networks cnPilot e510
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Hotspot 2.0:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
400
Tx power 2.4GHz [dBm]:
24
Tx power 5GHz [dBm]:
25
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
9
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-In (only)
Max. power consumption [W]:
13
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 65
Weight [g]:
1100
Width [mm]:
215
Height [mm]:
320
Depth [mm]:
50
Software
Operating mode:
Access Point
IPv6 support:
Yes
Default IP address:
192.168.0.1, Dynamic from DHCP
Default login and password:
admin / admin
Video
Product description
Standards based beam forming Wi-Fi for the Outdoors – Enterprise and Industrial campuses, Public Wi-Fi, Hospitality, Education institutions or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN Access Points.
Outdoor 2x2: 2 MU-MIMO dual band 2.4 GHz and 5 GHz 802.11ac wave2 Access Point with PoE injector, 256 users, 16 SSIDs, 400 Mbps data rate on 2.4 GHz, 867 Mbps data rate on 5 GHz, 1 x Gigabit Ethernet port, integrated 8 dBi omnidirectional antenna, PoE powered, integrated electrical heater for cold start, ruggedized - ESD protection, special LTE resilience filtering, UV rated IP67 enclosure, max operating temperature range -30 °C ~ +65 °C, operating humidity 10 % to 95 %, packaged with wall and pole mount brackets, Kensington lock slot, 3 year Limited Lifefime warranty.
Package Contents
Download
DatasheetGPSR
