Cambium Networks ePMP 5 GHz Force 425 SM (RoW, EU cord) - PTP mode only
We are sorry, this product is no longer in our offer.

PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock

PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Frequency range [MHz]:
4910 - 6135
Wireless frequency:
5 GHz
WiFi standards:
802.11ax
Transmission speed - 5GHz [Mb/s]:
1000
Tx power 5GHz [dBm]:
28
Security:
128bit AES
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
15
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
25
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Optical interfaces:
(1) 10Gbps
Power
Power over Ethernet:
44 .. 59V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
28
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 55
Weight [g]:
4800
Width [mm]:
470
Height [mm]:
470
Depth [mm]:
285
Software
Operating mode:
Bridge
Management:
Web management, Cambium cnMaestro cloud
IPv6 support:
Yes
Default IP address:
169.254.1.1
Default login and password:
admin / admin
Product description

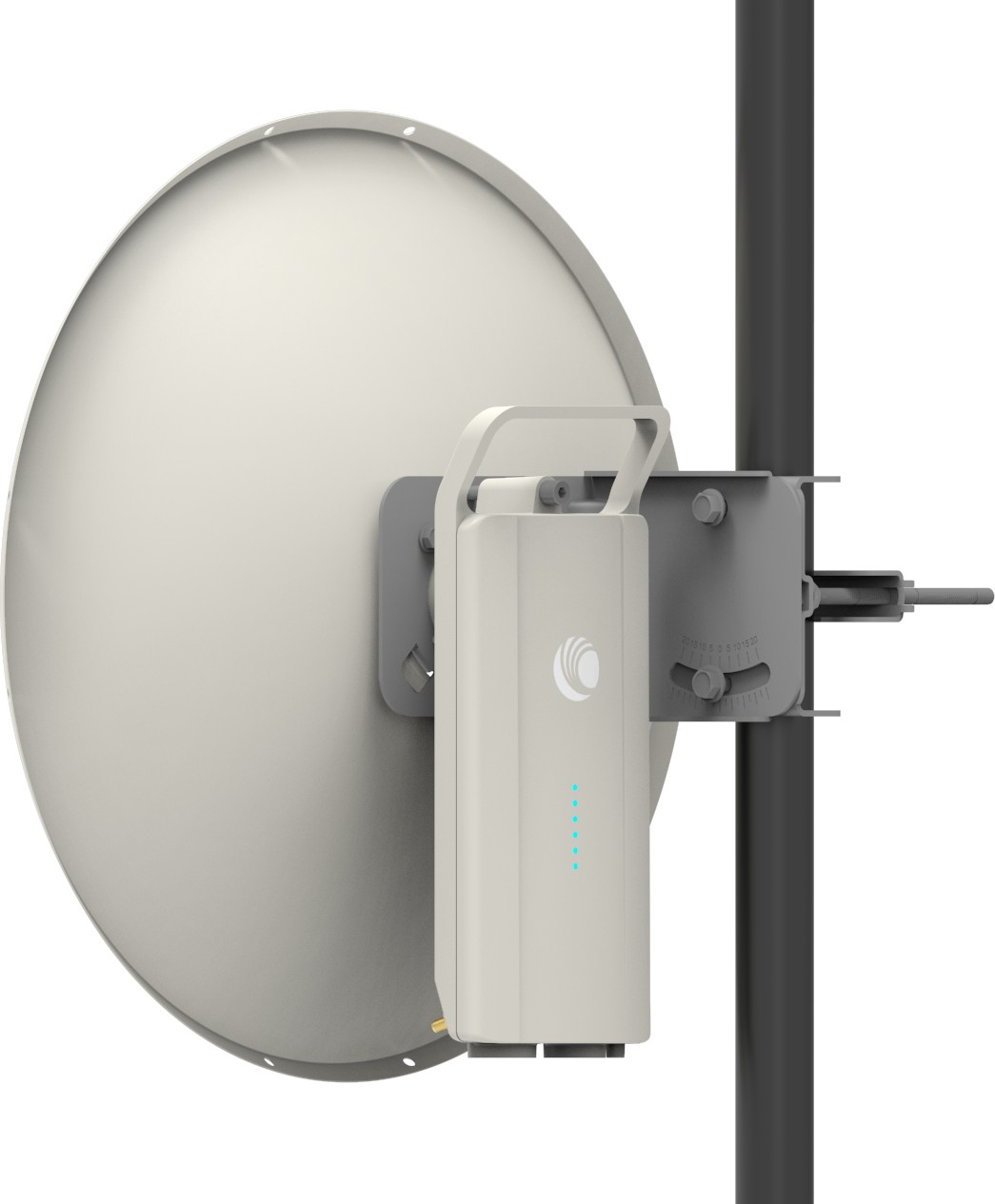

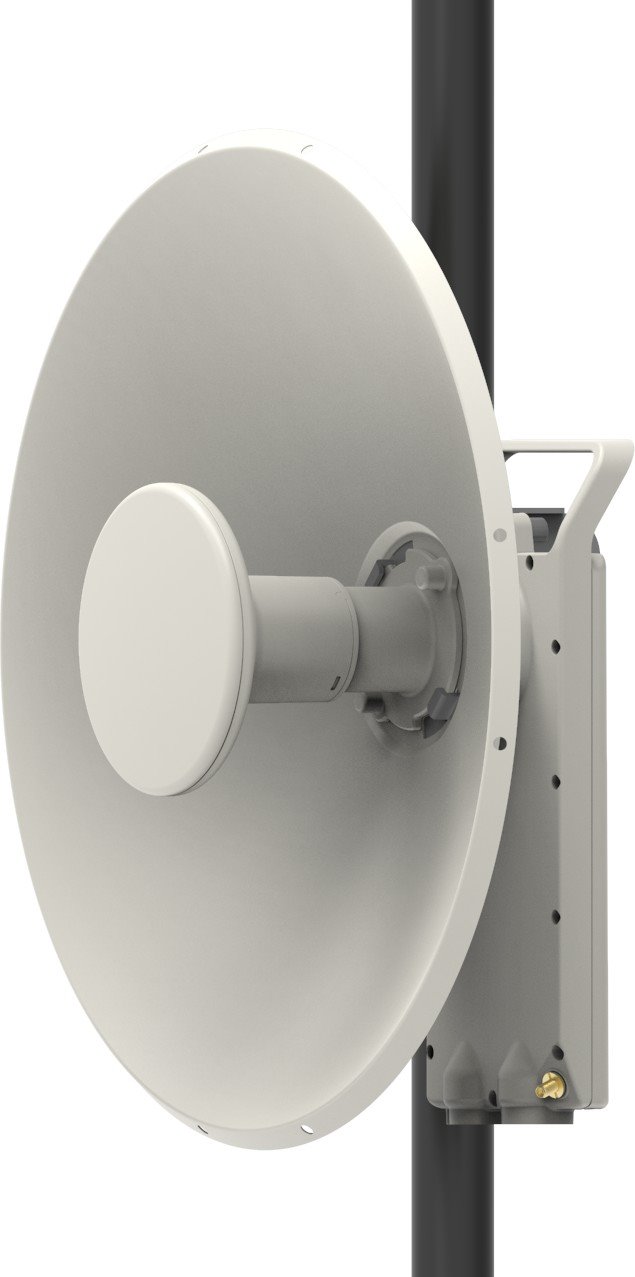

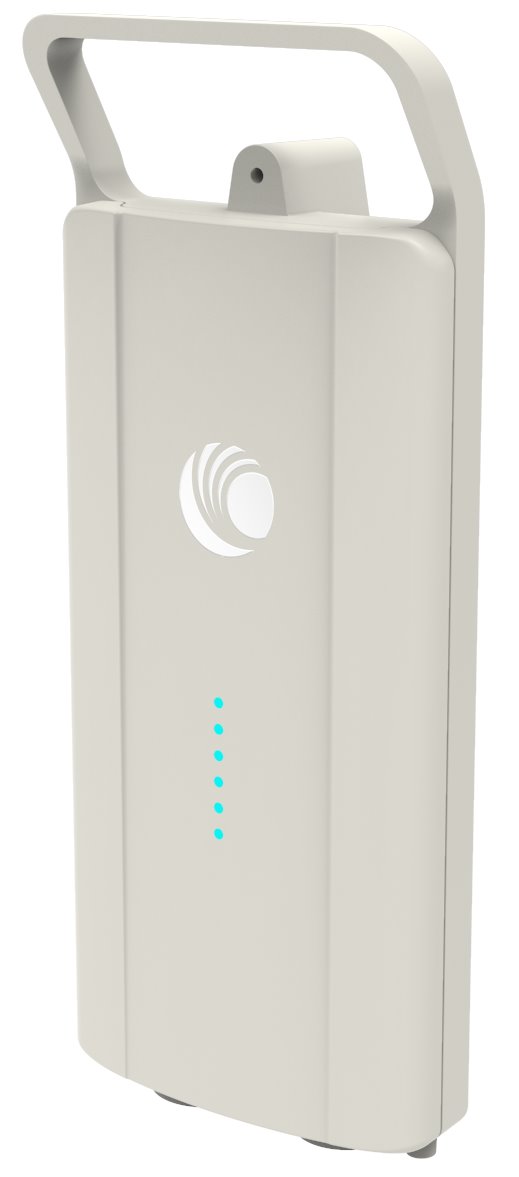

Cambium Networks ePMP 5 GHz Force 425 SM
Cambium Networks introduces the ePMP Force 425 and Force 400C point-to-point solutions which deliver up to 1 Gbps throughput at a breakthrough price point based on the latest 802.11ax standards. The Force 400 Series is the ideal solution for service providers looking to deliver high-capacity access services to enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOPs and outdoor Wi-Fi access points that require lots of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.
Force 425 is built for the real world with IP67 ruggedization, simplified mounting scheme and Cambium Networks’ 3-year hardware warranty.
Plan and manage your Force 425 deployments with Cambium Networks LINKPlanner and cnMaestro or web interface.
Link to cnMaestro™:
Link to LINKPLanner:
Package content
Download
Datasheet User GuideGPSR
