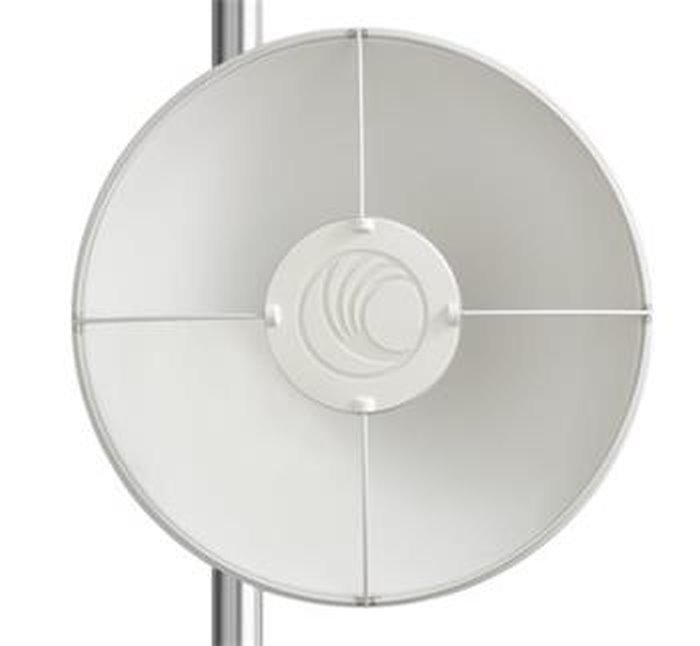

Cambium Networks ePMP Force 110 PTP, 5 GHz
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
shipmin: 30.1.2026
Expected 30.1.2026
PCU5E-5-MSC
3.80 EUR excl. VAT
4.60 EUR incl. VAT
stiqtyfree:198
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
300
Tx power 5GHz [dBm]:
30
Security:
128bit AES
Elevation beam width (-6dB) [°]:
7
Azimuth beam width (-6dB) [°]:
7
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
2
Antenna gain [dBi]:
25
Connectors and Interfaces
RF connectors:
(2) RSMA male
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 23 .. 56V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
10
Physical characteristics
Protection class:
IP55
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
4100
Width [mm]:
470
Height [mm]:
470
Depth [mm]:
270
Software
IPv6 support:
Yes
Default login and password:
admin / admin
Video
Product description

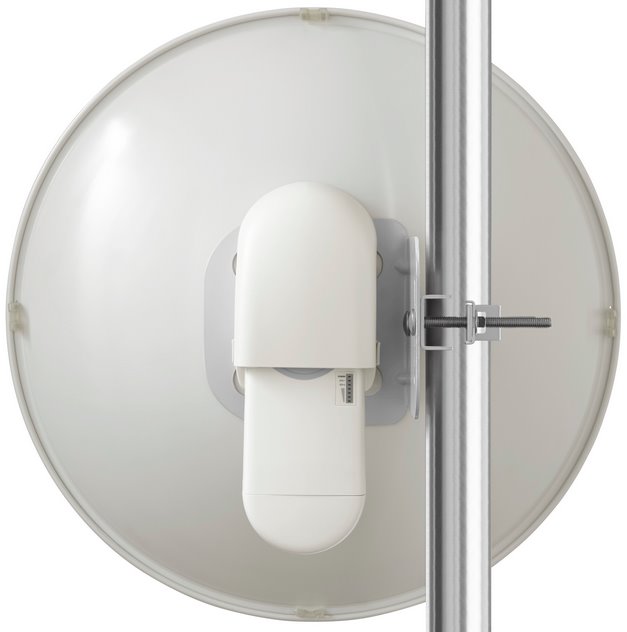

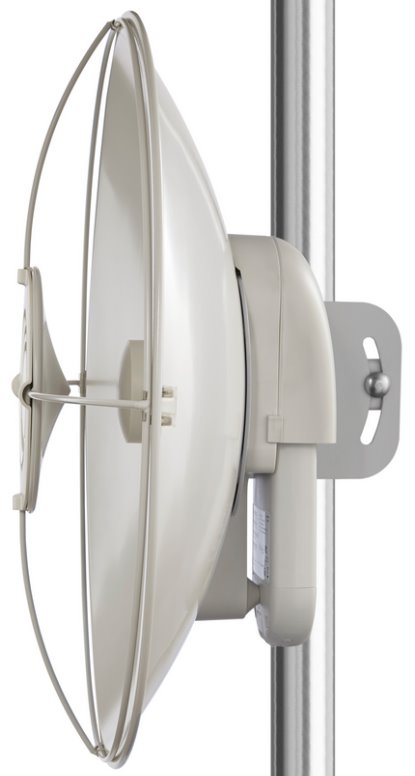

The ePMP™ Force 110 PTP high gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 200 Mbps of real user data). Force 110 PTP acheives 2 ms of round-trip latency and provides a 802.3af compliant Gigabit Ethernet port. Comprised of the ePMP 1000 Connectorized Synchronized Radio and the ePMP110A-525 Dish.
Download
DatasheetGPSR
