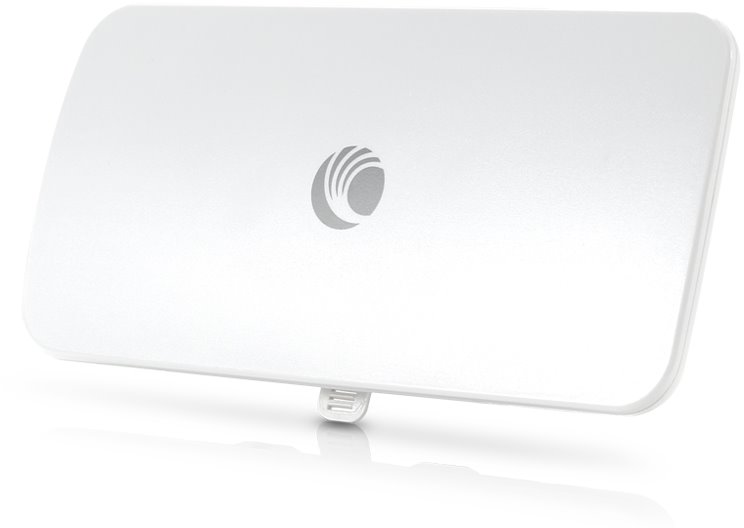

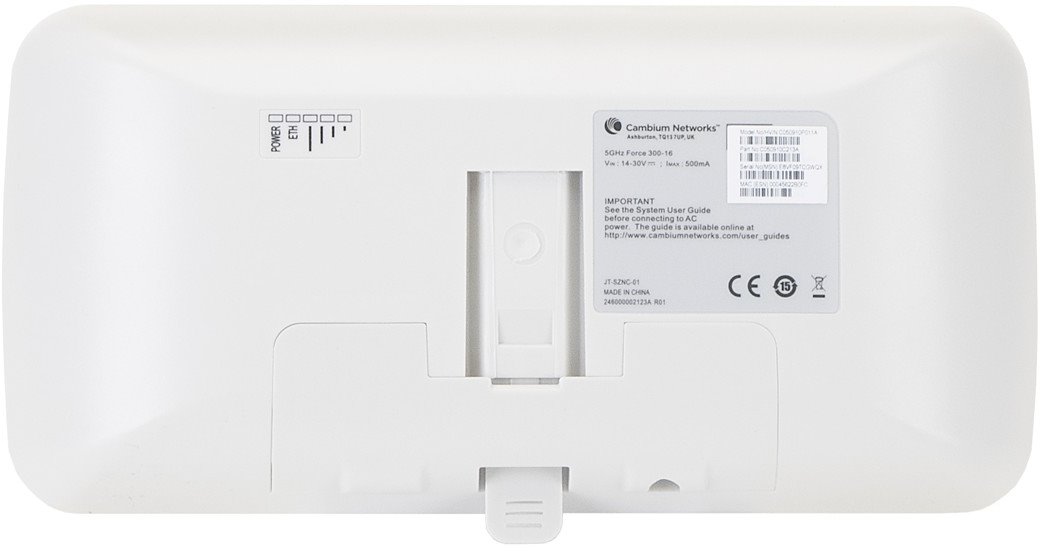

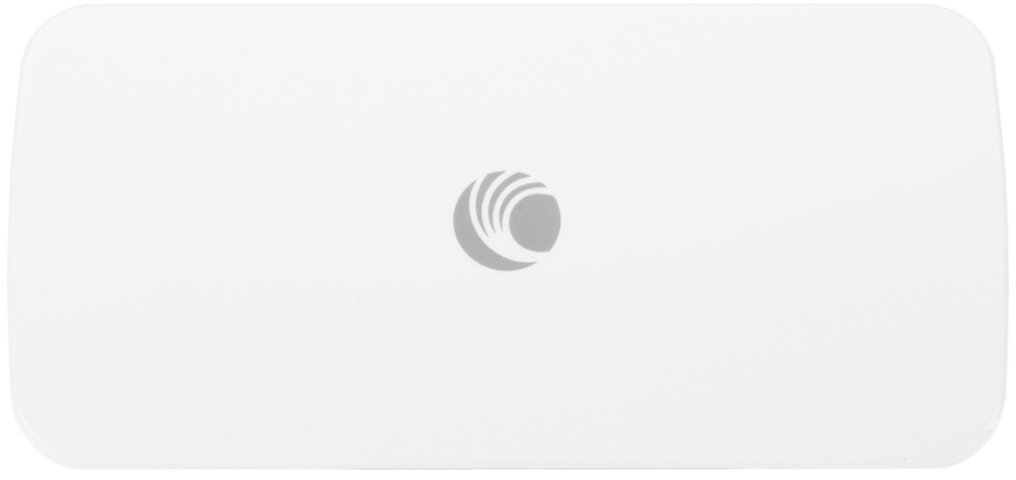

Cambium Networks ePMP Force 300-16, 5GHz (EU, EU cord)

Product description

ePMP Force 300-16 is the next generation of ePMP products in the 5 GHz band. The radio with integrated 16dBi antenna offers high gain. New in 802.11ac Wave 2 technology and with the original very easy to assemble dish and adjustable holder, it simplifies the installation and radio tuning of the units. The powerful and elegant Force 300-16 is equipped with a Giagabit Ethernet port, which allows you to deliver maximum throughput.

Key Features

• Cambium Networks' ePMP Force 300-16 is designed to work in high-interference environments and provides excellent throughput of up to 600 Mbps of real user data.
• The ePMP Force 300-16 supports channel sizes from 20 MHz to 80 MHz and modulation up to 256 QAM.
• ePMP Force 300-16 supports real-time spectrum monitoring without reducing throughput.
• Configurable operating modes provide robust adaptability to both symmetrical and asymmetrical operation while providing high performance and 3-5 ms latency.
• QoS management offers the superior quality of Triple Play services - VoIP, video and data - and provides three levels of transmission priority.
• The integrated 16dBi panel antenna has a small form factor and provides excellent range. For information on estimating capacity and availability, see the LINKPlanner from Cambium Networks.
• Installation is fast and reliable, and supports both pole and wall mounting.
• 16dBi integrated antenna design
• Gigabit Ethernet and built-in surge protection
• High-performance pps 802.11ac Wave 2 technology
• Support between 4910 MHz up to 5970 MHz (depending on country regulatory requirements)
• Proprietary TDP ePMP protocol that improves interference performance
• WiFi management option
• Background Spectrum Analyzer
• The device could be managed by web interface or cnMaestro™ cloud - element management system for easy provisioning, monitoring and upgrades

Link to cnMaestro™:

Link to LINKPLanner:

Package Contents

• Radio unit
• Mounting bracket
• PoE power supply including network cable

Cloud-managed Access

ePMP Force 300-16 can be managed by cnMaestro from the cloud, an onpremises VM or a private datacenter. cnMaestro provides a single-pane-of-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers. cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, licenses or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.
