Cambium Networks ePMP Force 300-19 5GHz SM (RoW, EU cord)
We are sorry, this product is no longer in our offer.
Cambium Networks ePMP Force 300-19 5GHz SM (RoW, EU cord)
×
0/0
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
28
Security:
128bit AES
Elevation beam width (-6dB) [°]:
13
Azimuth beam width (-6dB) [°]:
15
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
19
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
14 .. 30V DC
Power type:
PoE
PoE type:
PoE-In (only)
Max. power consumption [W]:
12
Physical characteristics
Protection class:
IP55
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
1450
Width [mm]:
278
Height [mm]:
278
Depth [mm]:
45
Software
Operating mode:
Client, Bridge
IPv6 support:
Yes
Default login and password:
admin / admin
Product description

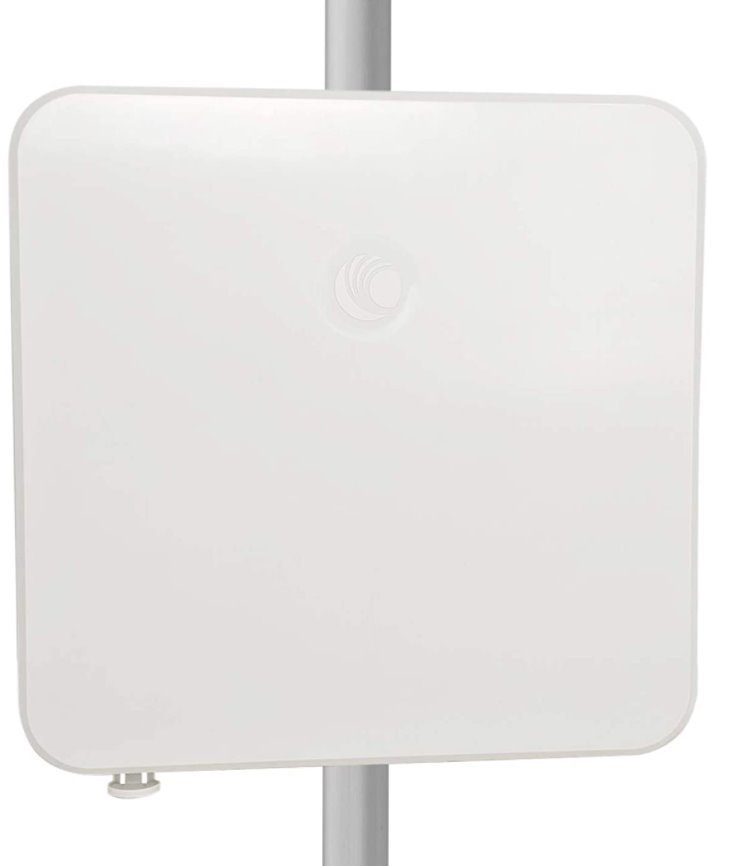

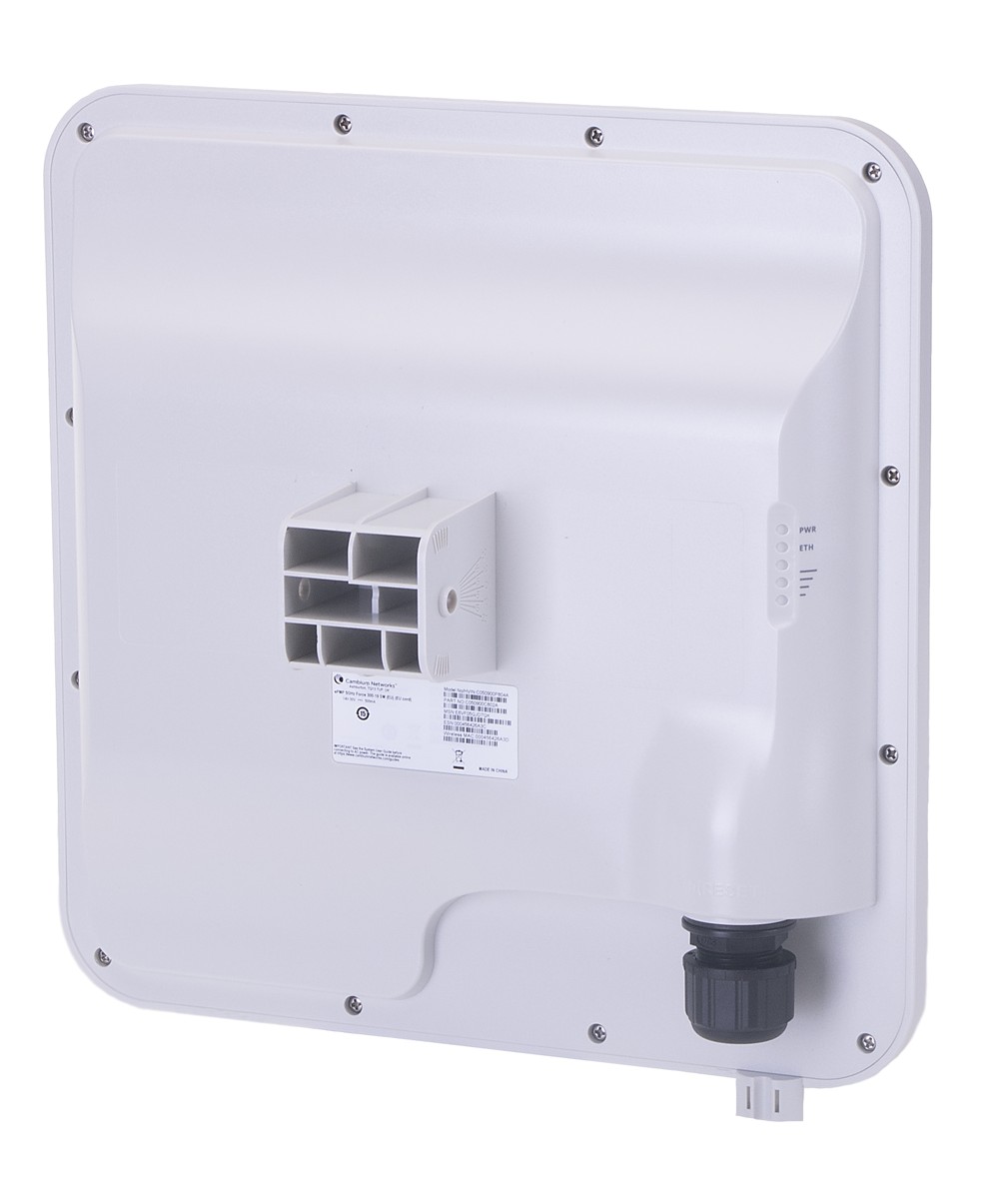

The ePMP Force 300-19 is a powerful yet affordable subscriber module compatible with the ePMP 3000 and ePMP 2000 to ease the migration into the 802.11ac Wave 2 technology.
Combining the latest 802.11ac Wave 2 technology and the field proven scalable performance of ePMP™, the Force 300-19 delivers up to 600 Mbps of capacity. It has a 19 dbi integrated antenna with a narrow beamwidth and reliable IP67 mechanics. This SM is excellent for areas where severe weather occurs often or in industrial, enterprise and government applications where IP55 and other security features are important. The ePMP Force 300-19 also supports 4.9 GHz in FCC jurisdictions which along with 5/10 MHz channels in PTP topology makes it a great solution for CCTV and video surveillance solutions.
Cloud-managed Access
ePMP Force 300-19 can be managed by cnMaestro from the cloud, an onpremises VM or a private datacenter. cnMaestro provides a single-pane-of-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers. cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, licenses or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.
Download
DatasheetGPSR
