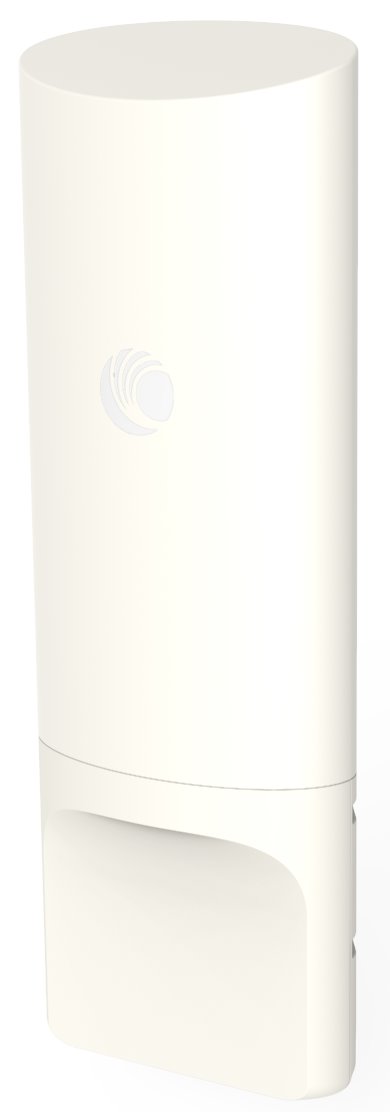

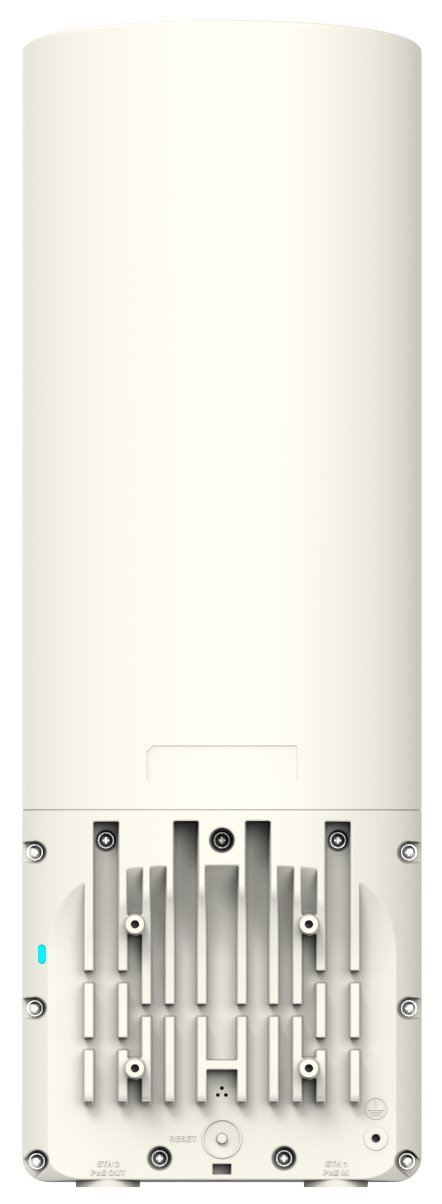

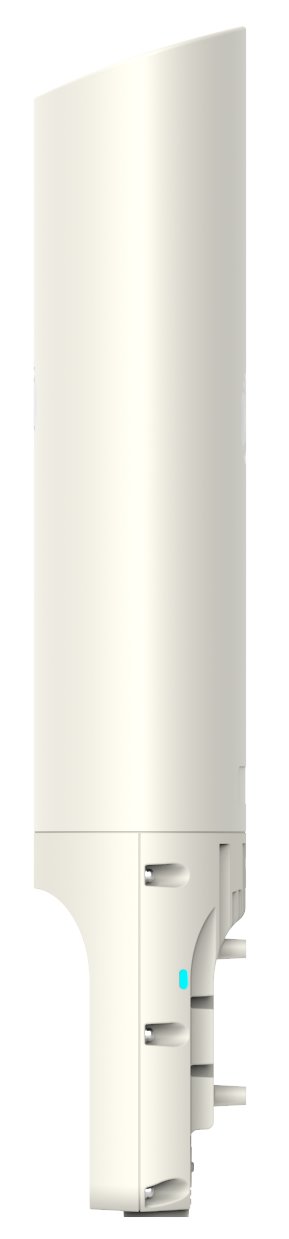

Cambium Networks XV2-2T Outdoor Dual Band Wi-Fi 6 AP (EU)
Your price excl. VAT
756.61 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 756.68 EUR |
| Your price incl. VAT (21%) | 915.58 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Cambium Networks |
|
|---|---|---|
| Code | 17700130 | |
| Part No. | XV2-2T0XA00-EU | |
| Warranty | 36 months | |
ETH-SP-G2
10.45 EUR excl. VAT
12.73 EUR incl. VAT
In Stock
N000000L142A
31.51 EUR excl. VAT
38.22 EUR incl. VAT
In Stock
CT-290-48-B
6.20 EUR excl. VAT
7.50 EUR incl. VAT
In Stock
OFTP5E24-MSC
124.62 EUR excl. VAT
150.79 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
PL-E505X00A-EU
379.38 EUR excl. VAT
459.13 EUR incl. VAT
Not in stock
PL-E500INTA-EU
558.32 EUR excl. VAT
675.65 EUR incl. VAT
In Stock
PL-E510X00A-EU
560.30 EUR excl. VAT
678.05 EUR incl. VAT
In Stock
PL-502S000A-EU
704.15 EUR excl. VAT
852.11 EUR incl. VAT
In Stock
XV2-2T1XA00-EU
870.26 EUR excl. VAT
1 053.10 EUR incl. VAT
In Stock
PL-E700X00A-EU
960.06 EUR excl. VAT
1 161.76 EUR incl. VAT
Not in stock
Parameters
Download
Video
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11ac - wave2, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1201
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
33
Tx power 5GHz [dBm]:
36
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Roaming:
Yes
Antenna gain [dBi]:
5, 9
Connectors and Interfaces
LAN speed:
(1) 100/1000/2500Mbps + (1) 10/100/1000Mbps
Gigabit LAN:
Yes
Other features:
Bluetooth
Power
Power over Ethernet:
802.3at, 802.3bt
PoE type:
PoE-Out + PoE-In
PoE budget [W]:
30
Max. power consumption [W]:
20
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 65
Weight [g]:
1200
Width [mm]:
200
Height [mm]:
582
Depth [mm]:
80
Software
Operating mode:
Access Point
Management:
Web management, Cambium cnMaestro cloud
Product description
Dual radio with integrated omnidirectional antenna for 2.4 GHz and 5 GHz bands. It supports the Wi-Fi 6 802.11ax standard, 2x2 MU-MIMO with a maximum capacity of 1 774 Mbps. The AP is equipped with 2.5G Multigigabit port and PoE 802.3at power supply and 1× 1G port with PoE Out function, to reduce interference in the 2.3 - 2.5 GHz band, the unit is equipped with an LTE filter.
Main Features
- Outdoor Dual AP 2.4 GHz + 5 GHz
- 2.4 GHz: 802.11n 2x2 MIMO, max. 574 Mbps
- 5 GHz: 802.11ac, 2x2 MU-MIMO, max. 1,200 Mbps
- Integrated omnidirectional antennas
- 1x 2.5G Multigig LAN RJ-45 port with PoE802.3at support
- 1x 1G LAN port RJ-45 with PoE Out support
- PoE power supply
- LTE filter 2.4 GHz
Free online tool for designing your Cambium Wi-Fi networkLink to Wi-Fi Designer:
Package contents
