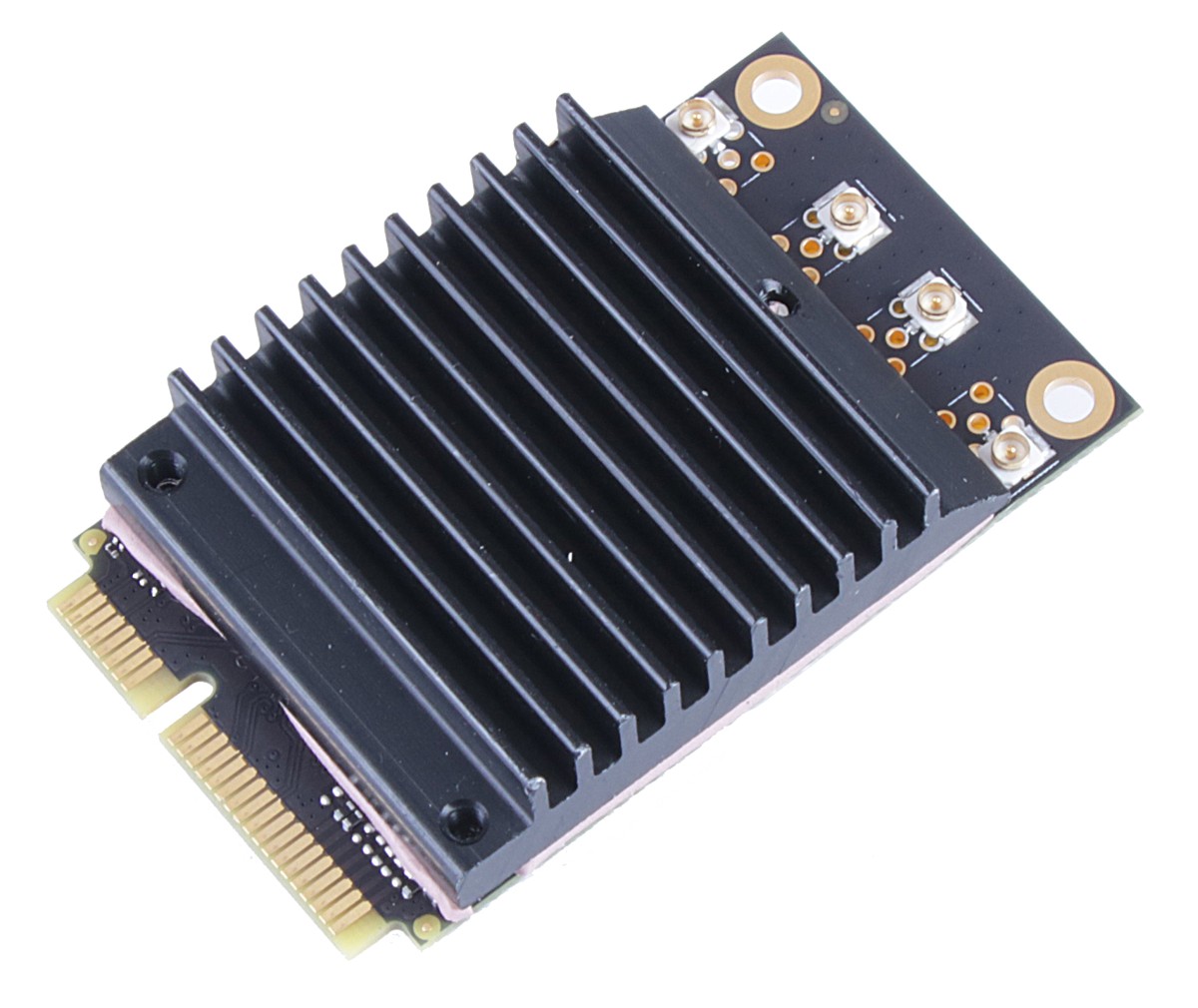

Compex WLE1216V5-20 miniPCIe, 802.11ac wave 2, 4x4 MU-MIMO, 4x u.Fl
We are sorry, this product is no longer in our offer.
Compex WLE1216V5-20 miniPCIe, 802.11ac wave 2, 4x4 MU-MIMO, 4x u.Fl
×
0/0
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-94
Frequency range [MHz]:
5180 - 5825
Wireless frequency:
5 GHz
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11ac - wave2
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
1730
Tx power 5GHz [dBm]:
20
Connectors and Interfaces
Bus type:
miniPCI-e
RF connectors:
(4) u.Fl
Power
Max. power consumption [W]:
8,5
Physical characteristics
Operating temperature [°C]:
-20 up to 70
Width [mm]:
51
Height [mm]:
30
Depth [mm]:
12
Hardware
Chipset:
Atheros QCA9984
Product description
5GHz 4×4 MU-MIMO 802.11ac Wave 2 80+80MHz Module
