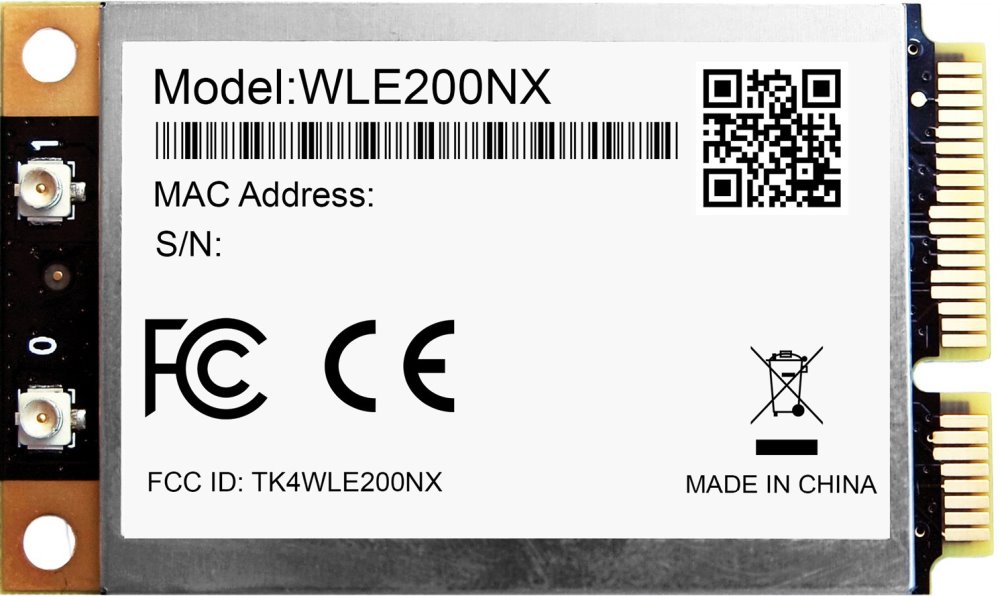

Compex WLE200NX miniPCI-e card
Compex WLE200NX miniPCI-e card
×
0/0
Your price excl. VAT
56.39 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 56.46 EUR |
| Your price incl. VAT (21%) | 68.32 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Compex |
|
|---|---|---|
| Code | 10700120 | |
| Part No. | wle200nx | |
| Warranty | 24 months | |
Parameters
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz, 5 GHz
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
300
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
20
Tx power 5GHz [dBm]:
20
Security:
WEP, WPA, WPA2
Connectors and Interfaces
Bus type:
miniPCI-e
RF connectors:
(2) u.Fl
Power
Max. power consumption [W]:
2,7
Physical characteristics
Operating temperature [°C]:
-20 up to 70
Width [mm]:
30
Height [mm]:
3,2
Depth [mm]:
60
Hardware
Chipset:
Atheros AR9280
Product description
Dual chain 802.11n/a/b/g miniPCI express card with Atheros chipset AR9280 with implemented XSPAN protocol and using 2x2 MIMO technology allows support of two transmitting and two receiving streams for one direction using two antennas or one dual polarity antenna. Up to 4 times higher performance than 802.11a/g cards (up to 300Mbps physical data rate - 200Mbps effective throughput for uplink and download). Transmit power 18dBm @ 802.11a (DFS and TPC support). Atheros integrated XSPAN technology to optimize higher data rates over longer distances, support for IEEE802.11d (Multi-Country Roaming).
Supported OS: Supports Windows 7, Windows Vista, Windows XP, Windows 2000 operating system.
