Compex WLE600VX-7BA
We are sorry, this product is no longer in our offer.
Compex WLE600VX-7BA
×
0/0
Parameters
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-94
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ac, 802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
21
Connectors and Interfaces
Bus type:
miniPCI-e
RF connectors:
(2) u.Fl
Power
Max. power consumption [W]:
3,5
Physical characteristics
Operating temperature [°C]:
-40 up to 70
Width [mm]:
60
Height [mm]:
3,2
Depth [mm]:
30
Hardware
Chipset:
Atheros QCA9892
Product description

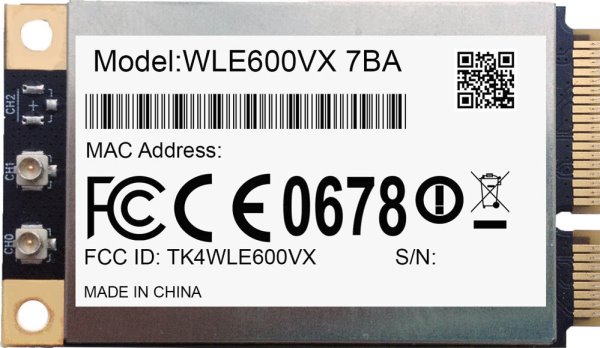

The WLE600VX-7BA is an IEEE 802.11ac WiFi module and operates in the 2.4 and 5GHz band. It is mounted in the miniPCIe v1.1 slot. Based on the QCA9892 chipset, it offers a dramatic increase in throughput up to 867Mbps using 2 * 2 MIMO technology. The WLE600VX-7BA is backwards compatible with the 802.11a / b / g / n standard and fully supports industry and security standards.
