Compex WPJ563HV-7A, 16MB flash, 128MB RAM, PCI-e, 2x Gbit Ethernet,SIM
We are sorry, this product is no longer in our offer.
Compex WPJ563HV-7A, 16MB flash, 128MB RAM, PCI-e, 2x Gbit Ethernet,SIM
×
0/0
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-95
Frequency range [MHz]:
2412 - 2472
Wireless frequency:
2.4 GHz
WiFi standards:
802.11n
Transmission speed - 2.4GHz [Mb/s]:
450
Tx power 2.4GHz [dBm]:
23
2.4GHz MIMO:
3 x 3
Connectors and Interfaces
RF connectors:
(3) u.Fl
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 36 .. 56V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
8,6
Power via connector/terminal:
12V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-20 up to 70
Width [mm]:
117
Height [mm]:
105
Depth [mm]:
18
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
775
RAM [MB]:
128
Software
Default IP address:
192.168.1.1
Default login and password:
admin / password
Product description

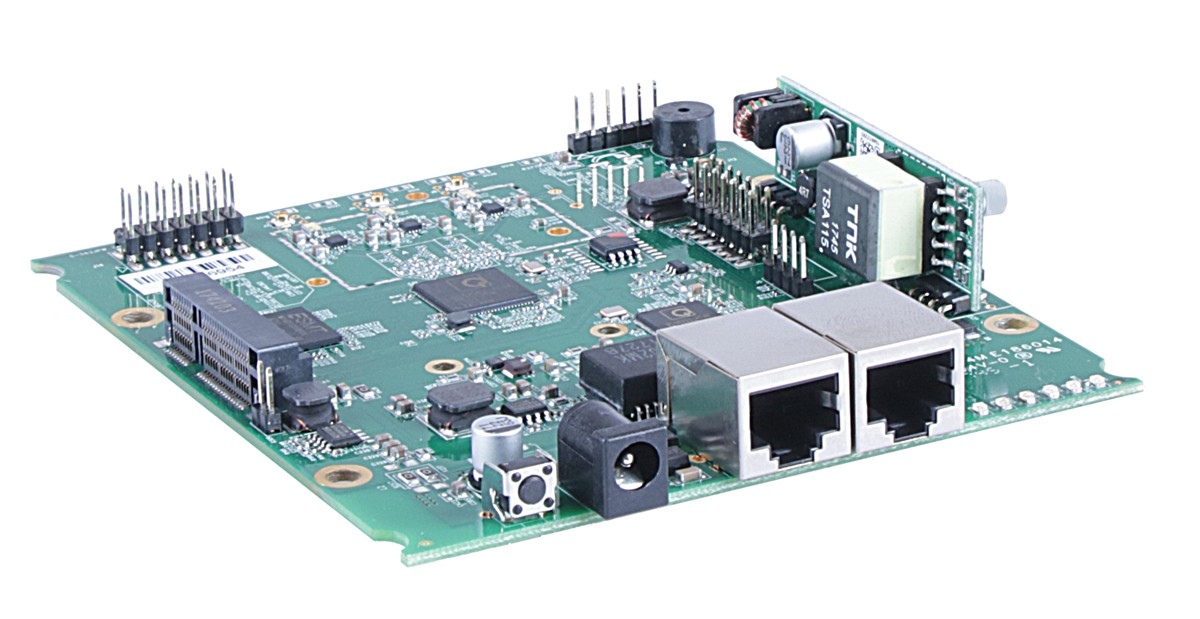

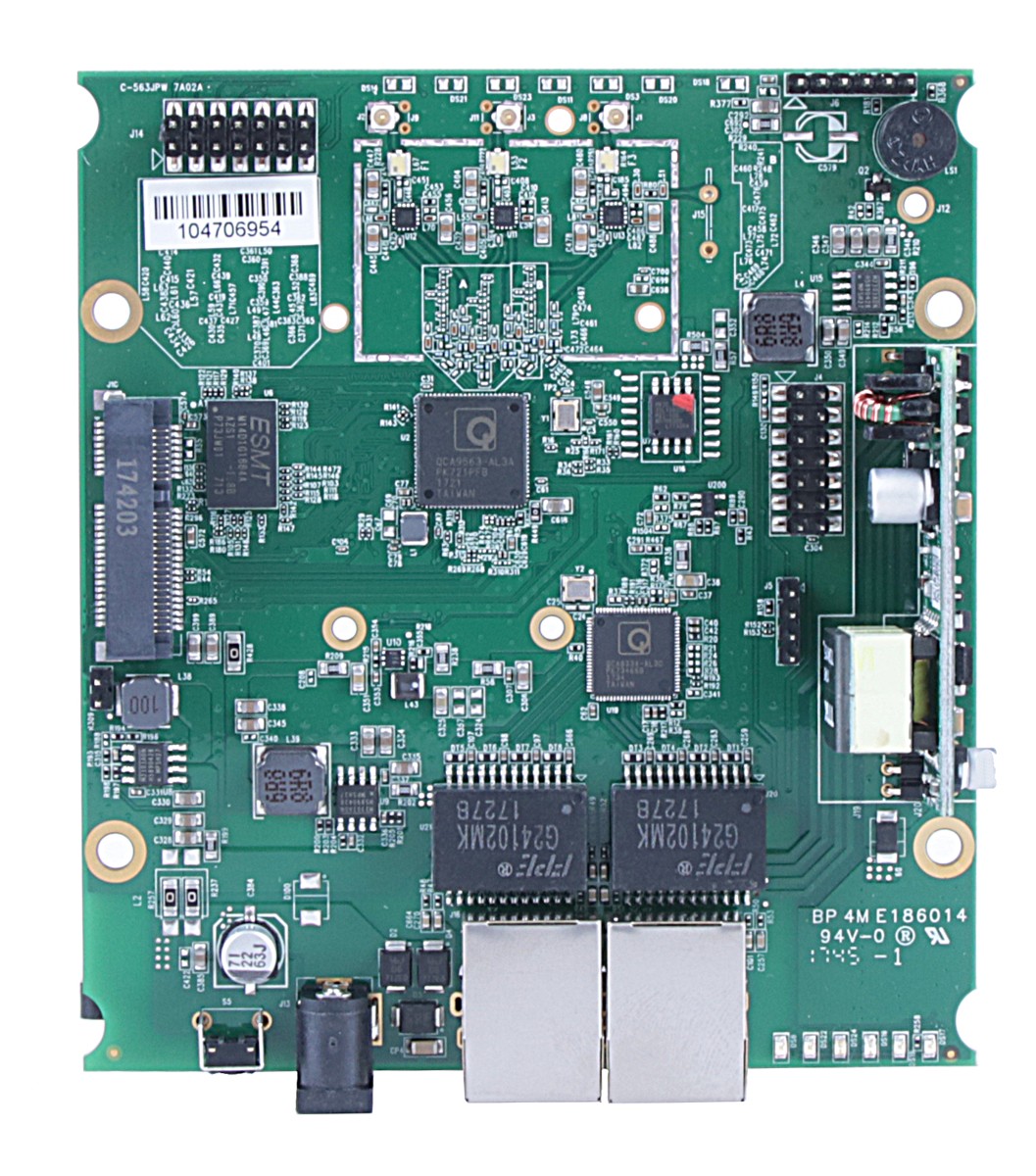

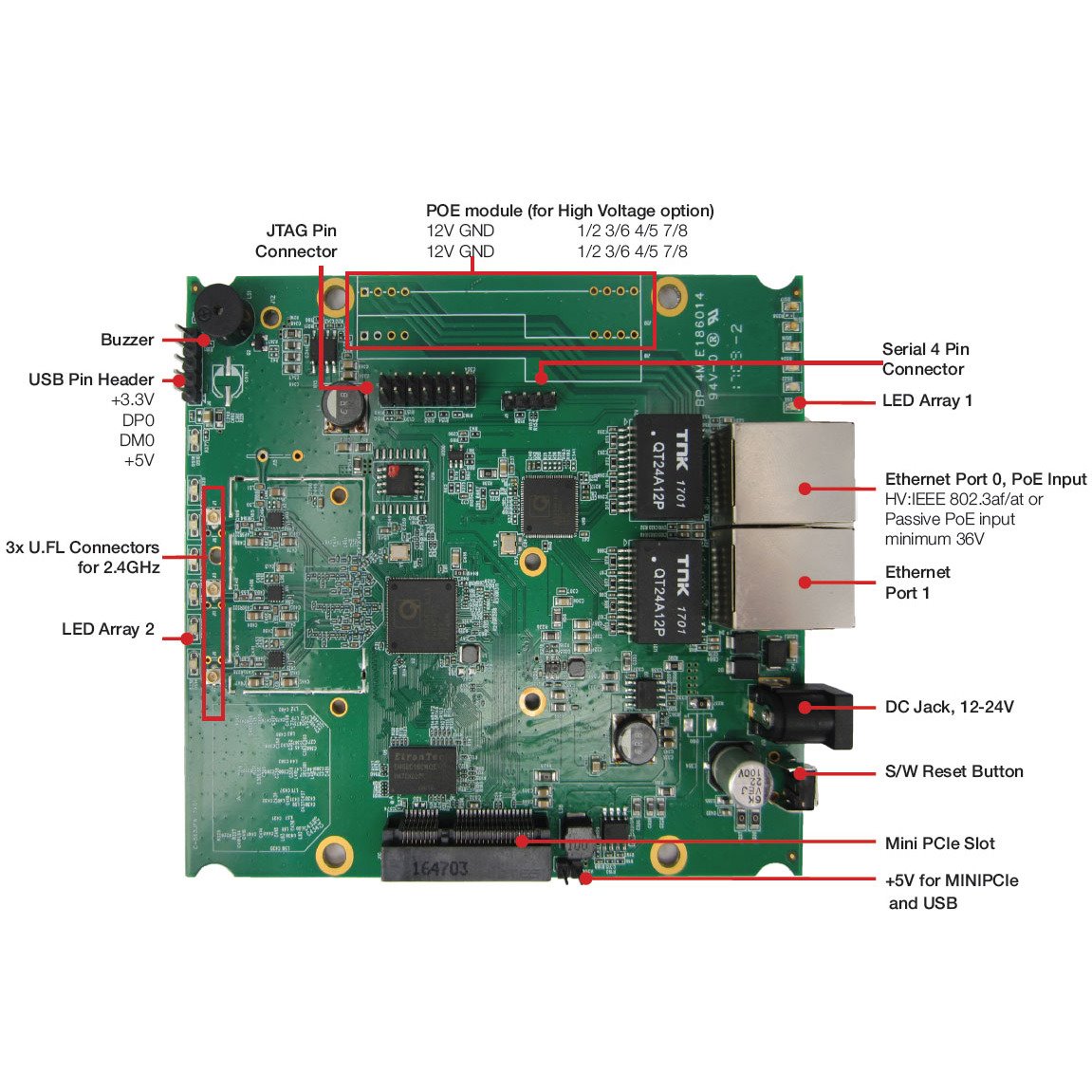

2.4GHz 3×3 MIMO Wireless Embedded Board with MiniPCI-e Slot
