MikroTik R52nM Atheros miniPCI 802.11a/b/g/n (MMCX)
We are sorry, this product is no longer in our offer.
MikroTik R52nM Atheros miniPCI 802.11a/b/g/n (MMCX)
×
0/0
Sale
Parameters
Download
GPSR
Technical parameters
Wireless features
Sensitivity [dBm]:
-95
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
300
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
21
Security:
802.11X authentication, 64/128/152Bit WEP, IEEE802.11i encryption
Connectors and Interfaces
Bus type:
miniPCI
RF connectors:
(2) MMCX
Power
Max. power consumption [W]:
2
Physical characteristics
Operating temperature [°C]:
-50 up to 70
Width [mm]:
60
Height [mm]:
7,5
Depth [mm]:
45
Hardware
Chipset:
Atheros AR9220
Product description

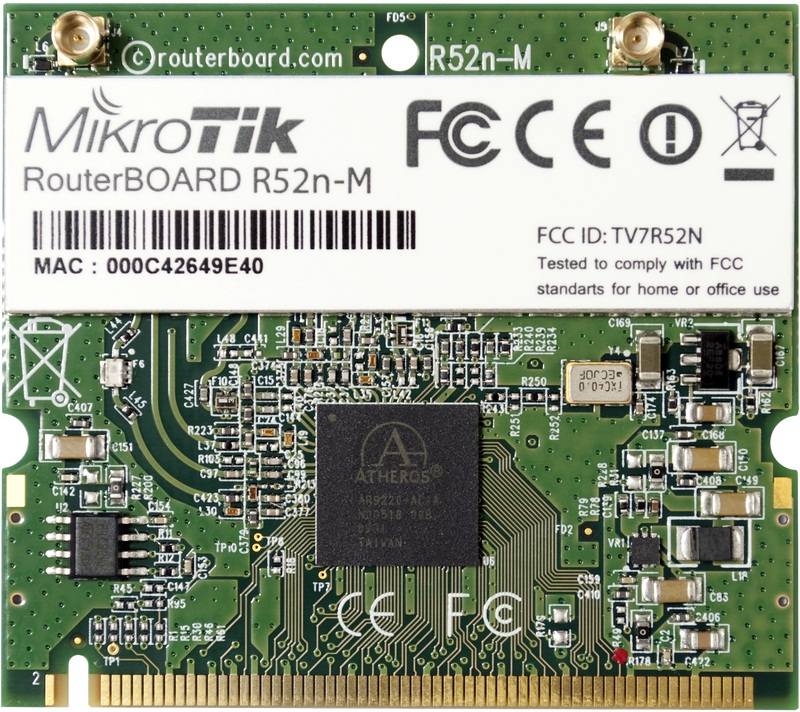

The RouterBOARD R52n-M miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. This card features the sturdy MMCX connectors for higher durability. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.
Card has two MMCX connectors for external antennas.
