Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR

We are sorry, this product is no longer in our offer.

Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
×
0/0
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Ezviz DB1 3MP Wi-Fi Video Doorbell - CS-DB1-A0-1B3WPFR
Sale
Manufacturer

Ezviz

Code16100101
Part No.CS-DB1-A0-1B3WPFR
Parameters
Download
Video
GPSR

Product description

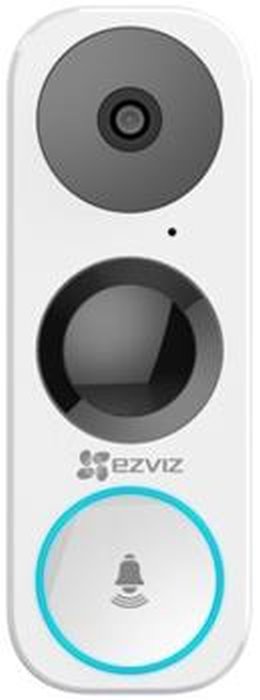

EZVIZ’s DB1 is a 3MP Wi-Fi Smart Doorbell that lets you see who’s there from head to toe and even talk to them when you are not home. Connect it to your smartphone to keep your home safe.

EZVIZ CS-DB1-A0-1B3WPFR

Answer the Door from Anywhere

The DB1 initiates a video call via the EZVIZ App when someone rings your doorbell, so you’ll never miss a visitor.

EZVIZ CS-DB1-A0-1B3WPFR

Get Intelligent Alerts with Two-Way Talk

See and talk to your visitors from your smartphone anywhere, any time. The built-in microphone and speaker make it easy for you to hear what’s happening outside the door.

EZVIZ CS-DB1-A0-1B3WPFR

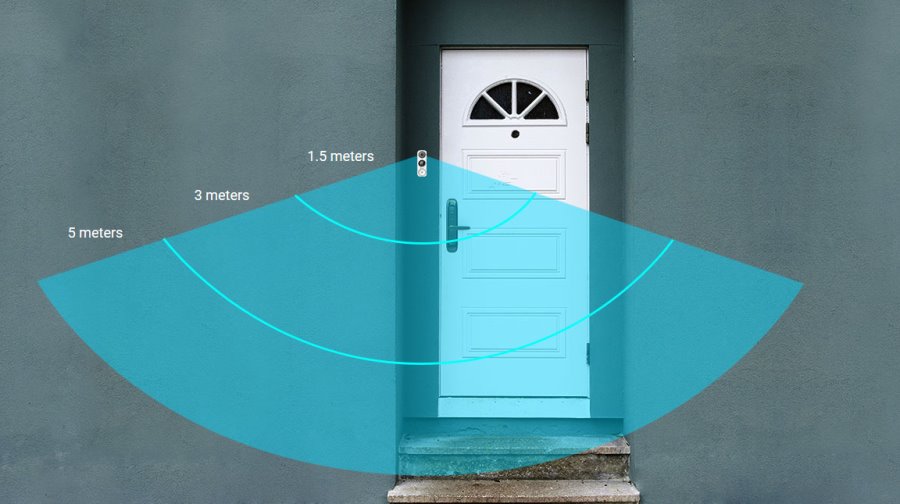

Be the First to Know Who's There

Featuring PIR motion detection, the DB1 sends an instant alert to you when a visitor is approaching. The DB1 also lets you customize the detection area, so you’ll only get efficient alerts from the area you want to have your eyes on.

EZVIZ CS-DB1-A0-1B3WPFR

Designed for All Conditions

The DB1 comes with clear, 5-meter night vision and an IP65 weatherproof design, so you can see who is at your door any time of day and in any kind of weather.

Multiple Storage Solutions

Save your recordings with flexible and secured solutions. The DB1 comes with a built-in MicroSD card slot that can store up to 128 GB of recorded footage. You can also save your images to the EZVIZ Cloud for additional back-up.

Package contains

  • Doorbell camera
  • Brackets
  • Installation package included power adapter
  • Interchangeable faceplates of many colors

Download

Datasheet Manual

GPSR

Contact:
EZVIZ Europe B.V.
Dirk Storklaan 3, 2132PX Hoofddorp
support.eu@ezviz.com

Bussines information

Daniel Špilar, +420 370 380 967 , daniel.spilar@discomp.cz

Technical parameters

Camera

WDR: Digital
Lens type: Fixed
Lens [mm]: 2,2 (fixed)
Illumination: IR
Illumination range [m]: 5
Viewing Angle [°]: 180
Image sensor ["]: 1/2.8

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
Integrated WiFi: Yes


Resolution: 3MP
Max. resolution [pixels]: 2048 x 1536 (QXGA)

Connectors and Interfaces

Slot for Memory Card: microSD - up to 128GB
Audio: Yes
Alarm: Yes

Power

Power type: AC terminal
Max. power consumption [W]: 5
Power via connector/terminal: 8 .. 24V AC

Physical characteristics

Protection class: IP65
Purpose: Outdoor
Operating temperature [°C]: -30 up to 60

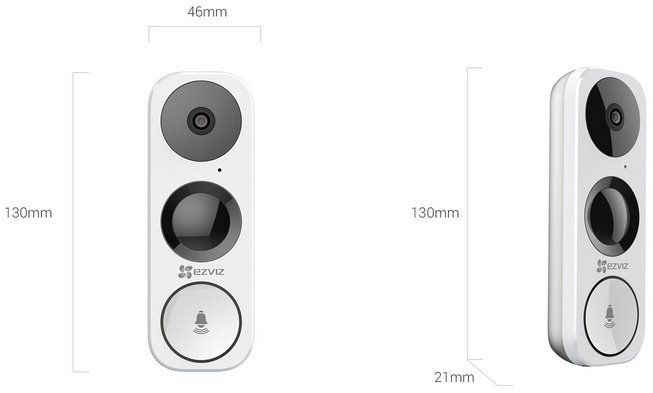

Weight [g]: 125
Width [mm]: 46
Height [mm]: 130
Depth [mm]: 21

Compression standard

Video compression: H.264

Video
