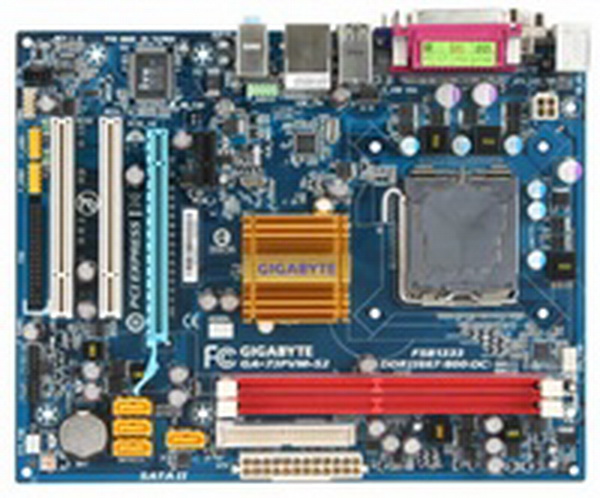

GIGABYTE MB Sc 775 73PVM-S2, nVidia 7100/630i, VGA, 2xDDR2, 4xSATA2, Raid, mATX

Product description

Technická podpora: podpora@gigabyte.cz



Specifications

CPU Support for an Intel Core™ 2 Extreme processor/Intel Core™ 2 Quad processor/Intel Core™ 2 Duo processor/ Intel Pentium processor Extreme Edition/ Intel Pentium D processor/ Intel Pentium 4 processor Extreme Edition/ Intel Pentium 4processor/Intel Celeron processor in the LGA 775 package
**L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB

Chipset NVIDIA GeForce 7100/nForce 630i
Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Support for DDR2 800/667/533 MHz memory modules

Onboard Graphics Integrated in the NVIDIA GeForce 7100/nForce 630i chipset

Audio Realtek ALC662 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Support for CD In

LAN RTL 8211B chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

Storage Interface NVIDIA GeForce 7100/nForce 630i chipset:
4 x SATA 3Gb/s connectors supporting up to 3 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the NVIDIA GeForce 7100/nForce 630i chipset
Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x chassis intrusion header
1 x power LED header

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x DVI-D port (Note 1)
1 xD-sub port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
