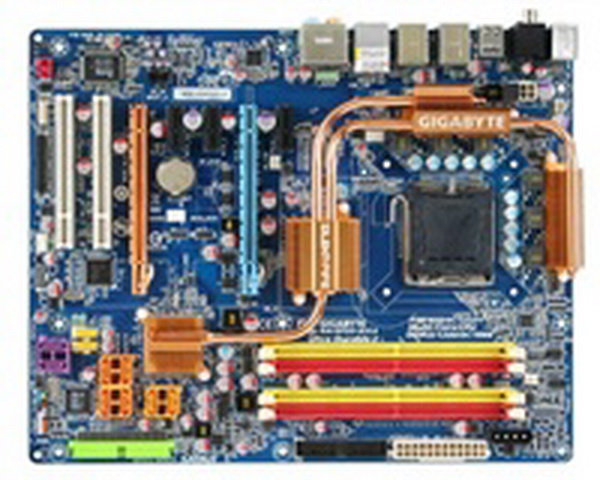

GIGABYTE MB Sc 775 EP35-DS4, Intel P35, 8xSATA2, 4xDDR2, 1394, Raid, (DES)

Product description

Technická podpora: podpora@gigabyte.cz



Model GA-EP35-DS4(rev. 2.1)
CPU Type Socket 775
FSB 1600 (O.C.)/1333/1066/800 MHz FSB
Chipset Intel P35 Express Chipset
Memory type Dual Channel, DDR2 1200 (O.C.)/1066/800/667
Memory socket DDR2 *4
Max. Memory 8GB
Graphics interface PCI-Express x16 *2
PCI-Express X16 (X8) 2 (x16, x4)
PCI-Express X1 (X2,X4) 3
PCI 2
ISA slot 0
AMR/CNR 0/0
VGA N/A
RAID Function SATA RAID 0,1,5,10
LAN Realtek 8111B Gigabit LAN Controller
Audio HD Audio (Realtek ALC889A)
Codec channel 8
IDE ATA 8* Serial ATA 3Gb/s / 1*PATA
USB 1.1 Same as USB 2.0
USB 2.0 12 (4 by cable)
DualBIOS Yes
PCB size 30.5*24.4 CM
Form Factor ATX
IEEE 1394 3
Thermal Solution Silent-Pipe
eSATAII 2 (by cable)
