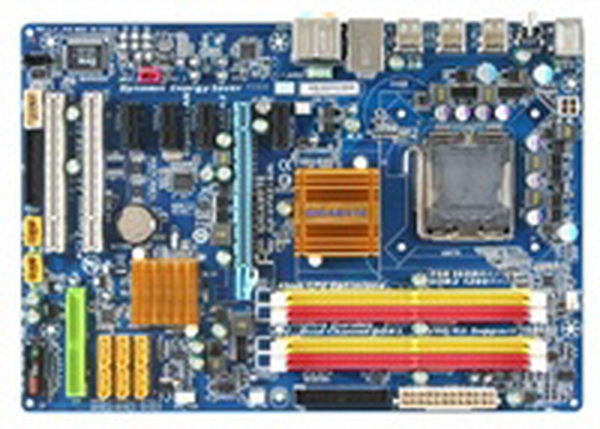

GIGABYTE MB Sc 775 EP43-S3L , Intel P43

Product description

Specifications

CPU Support for an Intel Core? 2 Extreme processor/ Intel Core? 2 Quad processor/Intel Core? 2 Duo processor/ Intel Pentium Dual-Core processor/Intel Celeron processor in the LGA 775 package
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
L2 cache varies with CPU

Front Side Bus 1600(O.C.)/1333/1066/800 MHz FSB

Chipset North Bridge: Intel P43 Express Chipset
South Bridge: Intel ICH10

Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR2 1200+/1066/800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)

Audio Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In

LAN Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
4 x PCI Express x1 slots
2 x PCI slots

Storage Interface South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
JMicron 368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller iTE IT8718 chip

H/W Monitoring System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control

BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS?
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver Advanced
Support for Time Repair
Support for Q-Share

Bundle Software Norton Internet Security (OEM version)

Operating System Support for Microsoft Windows Vista/XP

Form Factor ATX Form Factor; 30.5cm x 21.0cm
