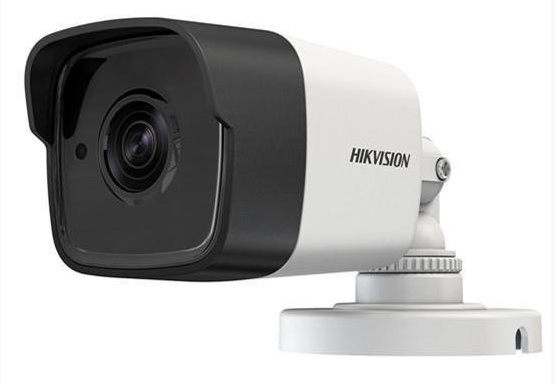

Hikvision 4v1 bullet camera DS-2CE16H0T-ITPF/28, 5MP, 2.8mm
We are sorry, this product is no longer in our offer.
Hikvision 4v1 bullet camera DS-2CE16H0T-ITPF/28, 5MP, 2.8mm
×
0/0
Sale
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Digital
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
20
Viewing Angle [°]:
85
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Resolution:
5MP
Max. resolution [pixels]:
2560 x 1944
Connectors and Interfaces
Analog output:
Yes
Power
Power type:
DC connector
Max. power consumption [W]:
4,3
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Switch mode
Operating temperature [°C]:
-40 up to 60
Weight [g]:
340
Width [mm]:
58
Height [mm]:
61
Depth [mm]:
163
Software
Supported standards:
TVI, CVI, AHD, CVBS
OSD menu:
Yes
Product description
Analog bullet camera DS-2CE16H0T-ITPF supports 4 different video outputs - TVI/AHD/CVI/CVBS - you can switch between them using button on the camera. It is suitable as cheap replacement for old analog cameras. You can utilize HD video output later when you purchase appropriate DVR.
5MPx sensor is equipped with 2.8mm fixed lens. Field of view is 85.5°, IR illumination up to 20m. The camera is powered by 12V DC voltage and its consumption is only max. 4.3W. It meets IP67 certification for outdoor use despite it is made from plastic.
