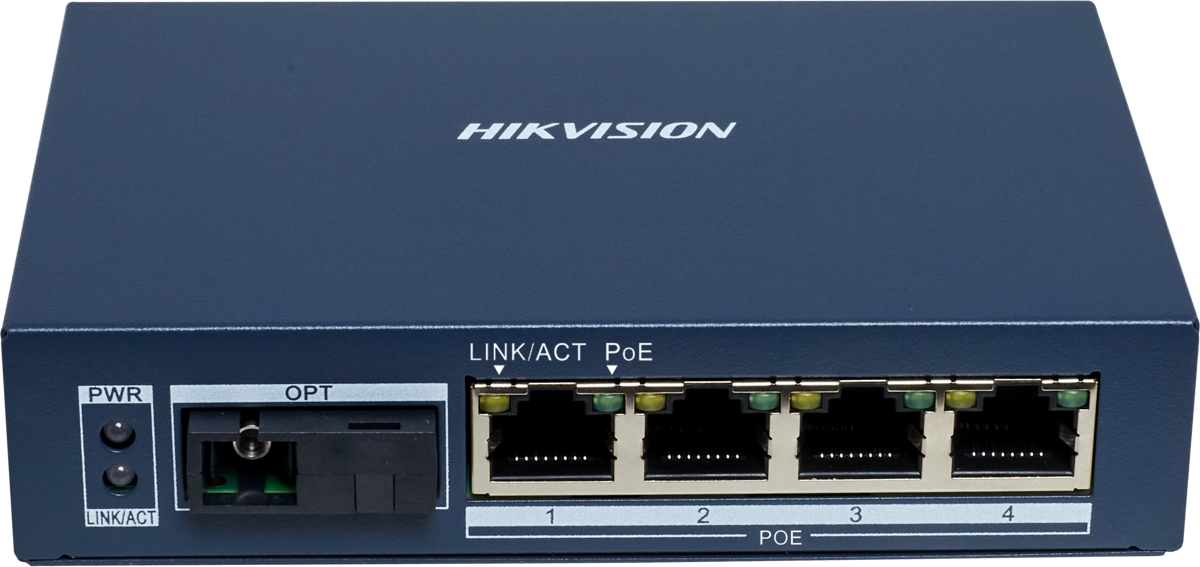

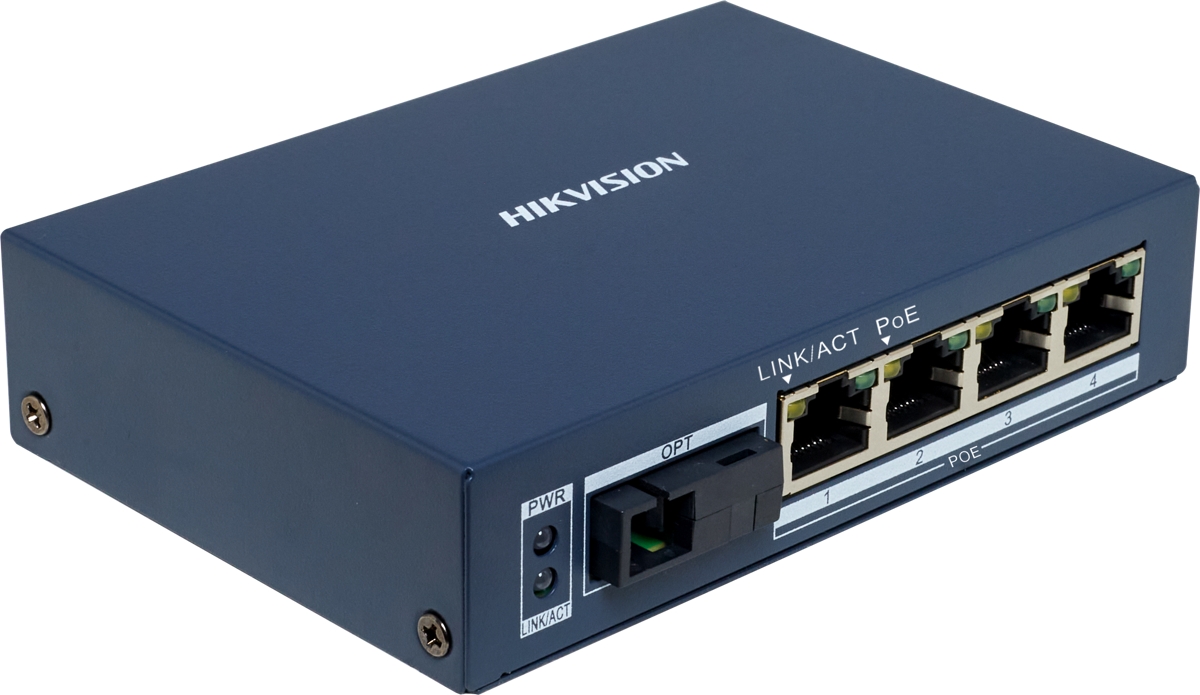

Hikvision DS-3D504TP-A Gbit Media Converter and PoE Switch
Your price excl. VAT
75.61 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 75.67 EUR |
| Your price incl. VAT (21%) | 91.56 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10982080 | |
| Part No. | DS-3D504TP-A | |
| Warranty | 36 months | |
PCU5E-1-MSC
1.55 EUR excl. VAT
1.88 EUR incl. VAT
stiqtyfree:2633
_17:
avail:2
infocode: stock
queu:
In Stock
SCupc/SCupc-SSM.9/125-01
2.52 EUR excl. VAT
3.05 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 18.12.2025
SCapc/SCapc-SSM.9/125-01
2.48 EUR excl. VAT
3.00 EUR incl. VAT
stiqtyfree:114
_17:
avail:2
infocode: stock
queu:
In Stock
LCupc/SCupc-SSM.9/125-01
2.00 EUR excl. VAT
2.42 EUR incl. VAT
stiqtyfree:130
_17:
avail:2
infocode: stock
queu:
In Stock
LCapc/SCapc-SSM.9/125-01
2.32 EUR excl. VAT
2.81 EUR incl. VAT
stiqtyfree:284
_17:
avail:2
infocode: stock
queu:
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 30.1.2026
PCU5E-5-MSC
3.80 EUR excl. VAT
4.60 EUR incl. VAT
stiqtyfree:248
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
For cable type:
Single Mode
Transmission speed:
1 Gbps
Wavelength - Tx/Rx [nm]:
1310 / 1550
Distance [km]:
20
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(4) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power

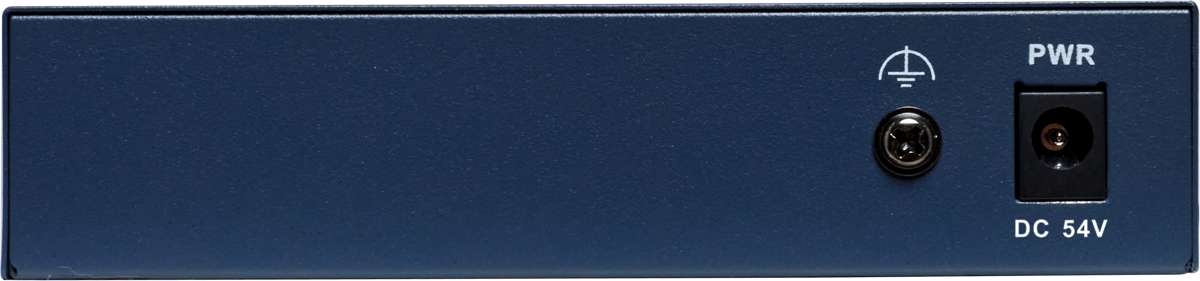

Power type:
DC connector
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
60
Max. power consumption [W]:
65
Power via connector/terminal:
54V / 1,2A
Physical characteristics
Design:
On the wall, Desktop
Fans:
No
Chassis design:
Metal
Operating temperature [°C]:
0 up to 40

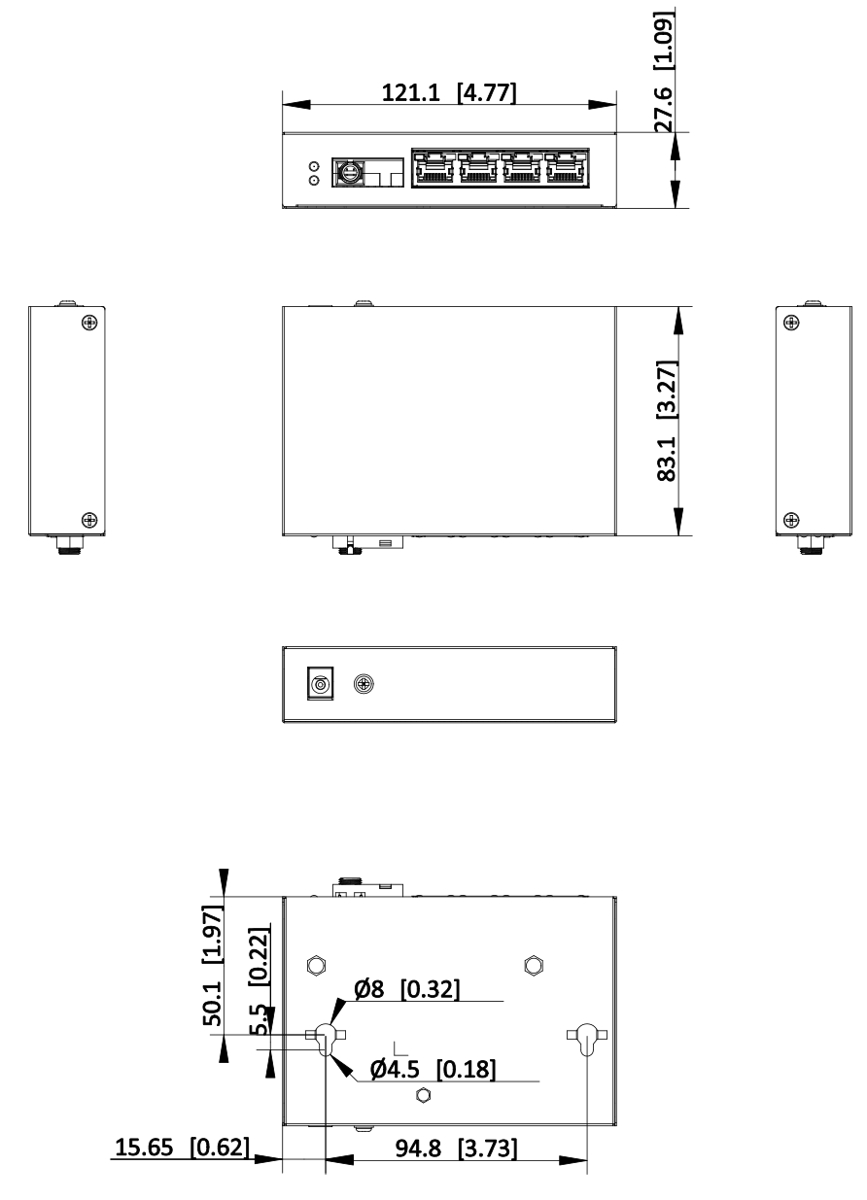

Width [mm]:
121
Height [mm]:
28
Depth [mm]:
50
General
Switchning capacity [Gbps]:
14
Packet forwarding rate [Mpps]:
10,4
Product description

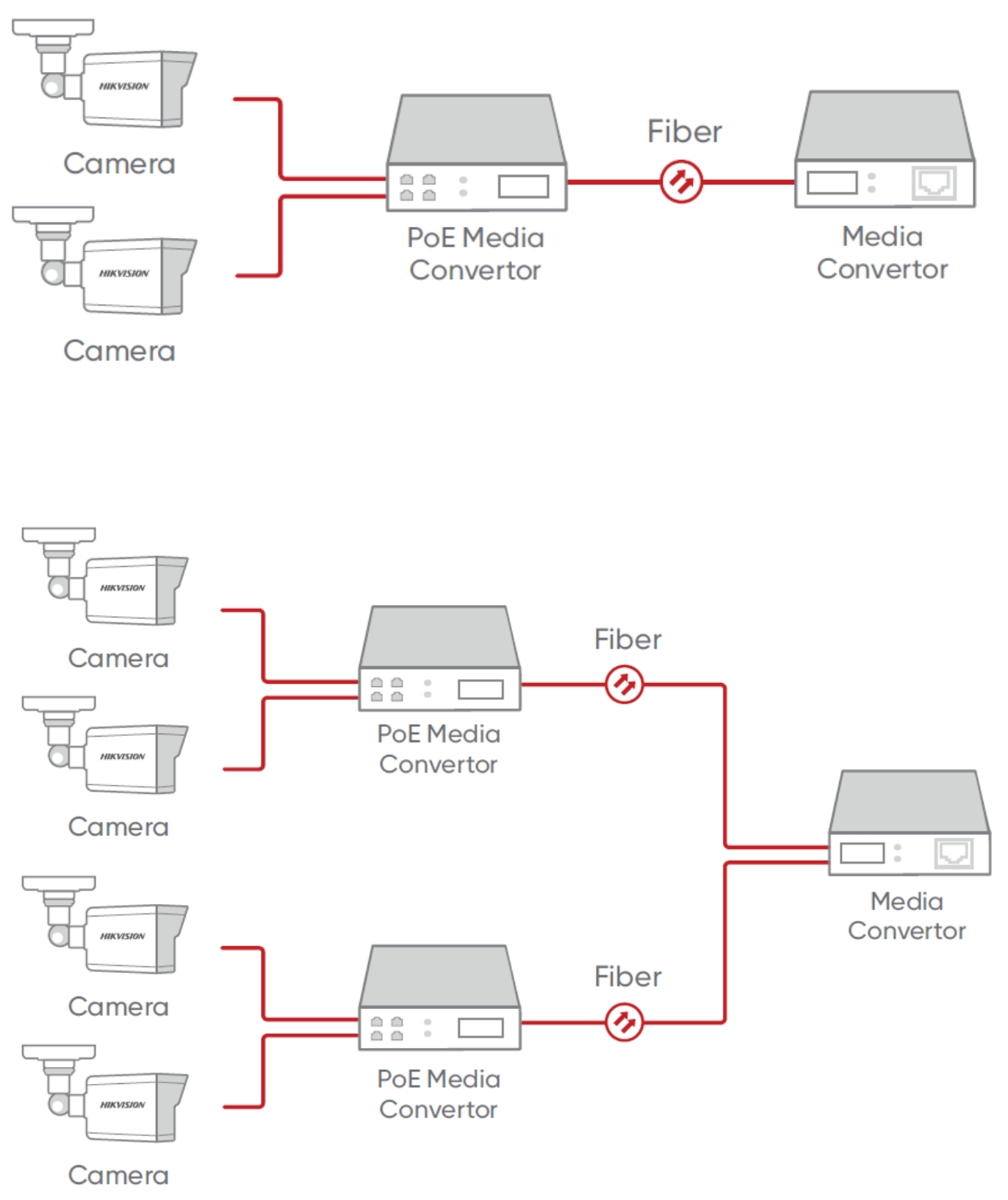

Hikvision DS-3D504TP-A je Gigabitový opticko-metalický WDM media konvertor a nemanagovatelný PoE Switch určený pro použití se singlemode optickým kabelem s konektorem SC na maximální vzdálenost až 20km, vlnová délka Tx/Rx 1310/1550nm. Disponuje kapacitou přepínání 14Gbps a (4) Gbit PoE porty, které podporují PoE+ 802.3af/at s budgetem 60W. Spotřeba energie zařízení je 2W (bez PoE zátěže).
Obsah balení
Download
Datasheet Quick Start GuideGPSR
