Hikvision DS-3T0306HP-E/HS industrial PoE switch, 4x PoE, 60W

Product description

Hikvision DS-3T0306HP-E/HS is an industrially designed unmanaged PoE switch with a metal chassis for powering active elements such as cameras, VoIP phones and others. This switch contains 4× 10/100 Mbps LAN ports and supports 802.3af/at (max.30W/port) PoE on all of them, even 802.3bt (max.60 W/port) on port 1. The total PoE budget is 60 W for all ports. The switch also includes one uplink Gigabit LAN and one optical SFP port. It also supports port isolation, PoE watchdog and Long Range mode on ports 3 and 4, which enables power supply and communication over a distance of up to 300 m, which is achieved thanks to lowering the line speed to 10 Mbps. The Switch comes without a power adapter.

Key Features

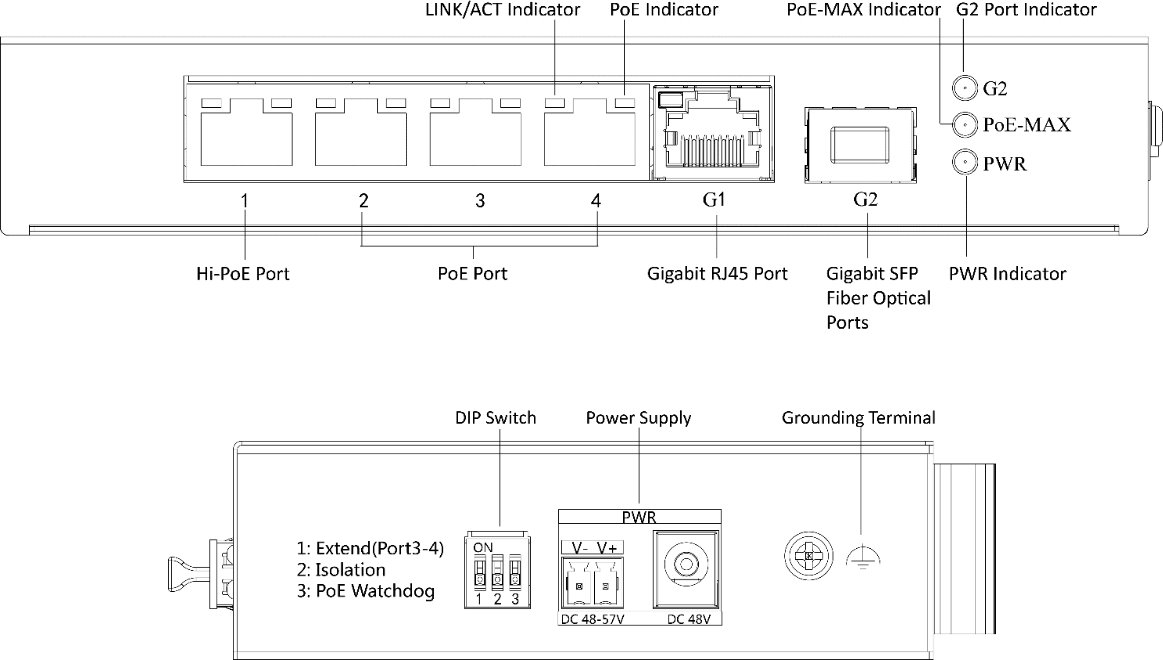

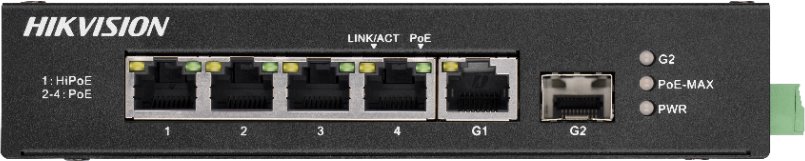

• (4) 10/100 Mbps + (1) 10/100/1000 Mbps LAN
• (1) SFP port
• Total PoE Budget 60 W, consumption itself max 5 W
• (1) 802.3af/at/bt (max. 60 W/port) + (3) 802.3af/at (max. 30 W/port)
• Long range PoE: Ports 3 and 4 (PoE at a distance of 300 m)
• Dimensions 158 x 101 x 32 mm
• Mounting on DIN rail or wall

Package contents

• Device
• DIN and wall mounting
