Hikvision DS-3T0310HP-E/HS Industrial PoE switch, 8x PoE, 110W
Hikvision DS-3T0310HP-E/HS Industrial PoE switch, 8x PoE, 110W
×
0/0
Your price excl. VAT
| Manufacturer |
Hikvision |
|
|---|---|---|
| Code | 10980328 | |
| Part No. | DS-3T0310HP-E/HS | |
| Warranty | 36 months | |
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100Mbps + (1) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power type:
DC connector, DC terminal
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
PoE Out ports:
8
PoE budget [W]:
110
Long range PoE - up to 250m:
Yes
Max. power consumption [W]:
10
Power via connector/terminal:
48 .. 57V DC
Physical characteristics
Design:
On the wall, DIN rail, Industry
Fans:
Without fan
Chassis design:
Metal
Buttons:
Normal / VLAN / 250m
Operating temperature [°C]:
-30 up to 65
Width [mm]:
197
Height [mm]:
42
Depth [mm]:
114
General
Switchning capacity [Gbps]:
5,6
MAC address table:
2000
Packet forwarding rate [Mpps]:
4,2
Product description

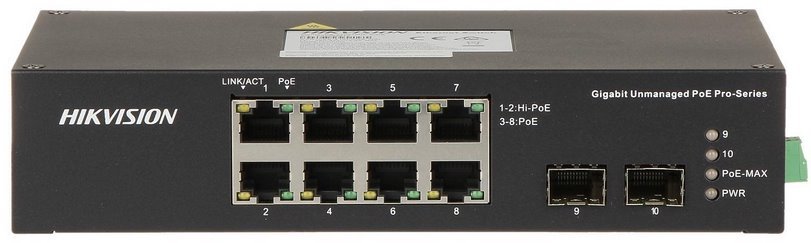

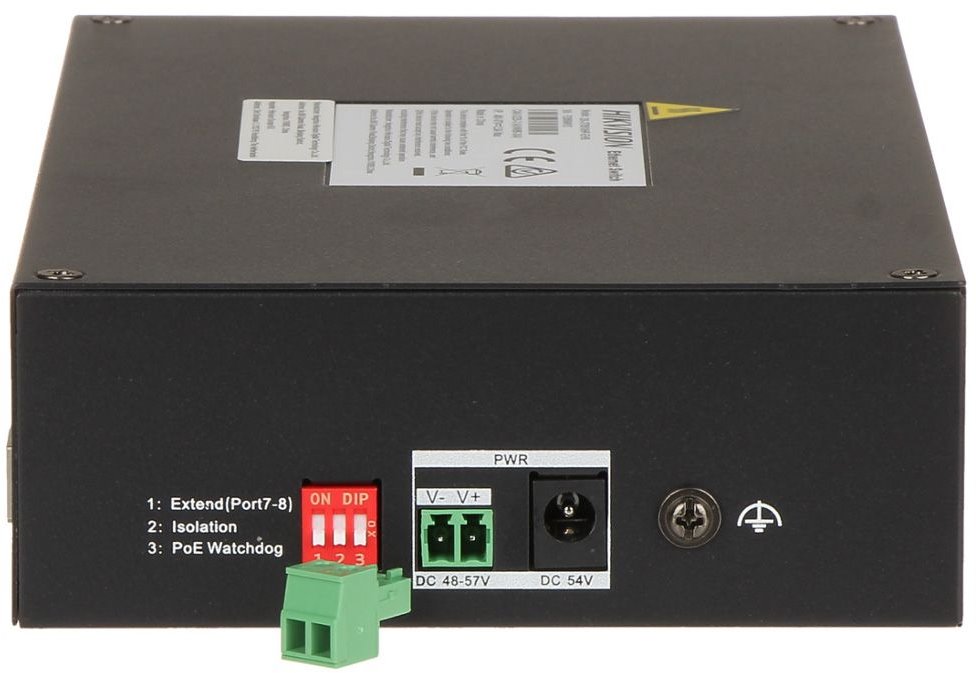

Hikvision DS-3T0310HP-E/HS is an industrially designed unmanaged PoE switch with a metal chassis for powering active elements such as cameras, VoIP phones and others. This switch contains 8× 10/100 Mbps LAN ports and supports 802.3af/at (max. 30 W/port) PoE on all of them, on ports 1 to 2 even 802.3bt (max. 90 W/port). The total PoE budget is 110 W for all ports. The switch also includes one uplink Gigabit LAN and one optical SFP port. It also supports port isolation, PoE watchdog and Long Range mode on ports 7 and 8, which enables power supply and communication over a distance of up to 300 m, which is achieved by lowering the line speed to 10 Mbps.
Key Features
Package contents
