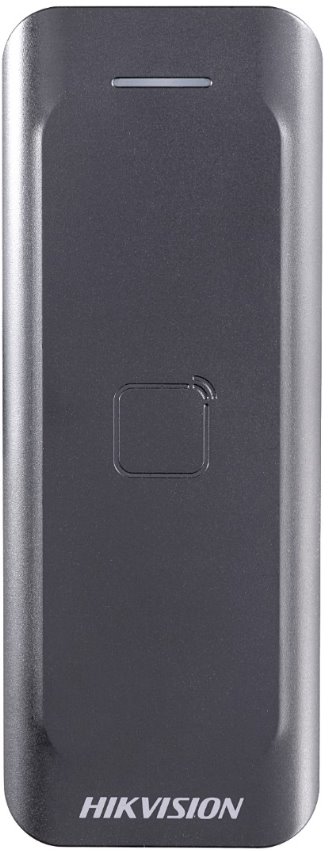

Hikvision DS-K1802M - Card reader, Mifare

Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
×
0/0
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Hikvision DS-K1802M - Card reader, Mifare
Fanděte našim na MS v hokeji s Hikvision

Your price excl. VAT
Price after login
In Stock
PlzeňTo order within 48h
OstravaTo order within 48h
Availability
at our branches
Manufacturer

Hikvision
Code10901676
Part No.DS-K1802M
Warranty 36 months
You have a choice of 4 variantscompare all
Hikvision DS-K1802M - Card reader, Mifare
Mifare, Čtečka
DS-K1802M
Price after login
In Stock
Hikvision DS-K1802E - Card reader, EM 125kHz
EM 125kHz, Čtečka
DS-K1802E
Price after login
In Stock
Hikvision DS-K1802EK - Card reader with keyboard, EM 125kHz
EM 125kHz, Čtečka + klávesnice
DS-K1802EK
Price after login
Not in stock
Hikvision DS-K1802MK - Card reader with keyboard, Mifare
Mifare, Čtečka + klávesnice
DS-K1802MK
Price after login
Not in stock
  • Related products7
Parameters
Download
Video

Product description

Elegantní bezkontaktní venkovní čtečka od značky Hikvision s technologií čtení Mifare a stupněm krytí IP65. Čtecí vzdáleností karet je max.50mm dle použitého identifikátoru. Maximální spotřeba je menší než 2W.

Důležité vlastnosti

  • RS485 a Wiegand (W26/W34) protokol (nastavení pomocí DIP switchů)
  • Stupeň krytí IP65
  • Rádiový frekvenční standard: ISO 14443-A
  • Vestavěný bzučák
  • Tamper switch
  • DIP switch
  • Napájení 12VDC; Spotřeba: < 2W
  • Povrchová montáž

Download

Datasheet Manual

Bussines information

Tomáš Petržílka, +420 702 564 566 , tomas.petrzilka@discomp.cz

Technical parameters

Connectors and Interfaces

Reader technology: Mifare (13.56 MHz)

Power

Power type: DC terminal
Max. power consumption [W]: 2
Power via connector/terminal: 12V DC

Physical characteristics

Protection class: IP65
Purpose: Outdoor
LED indication: Yes
Operating temperature [°C]: -20 up to 65
Width [mm]: 43
Height [mm]: 116
Depth [mm]: 17
