Hikvision IP dome camera DS-2CD2146G1-I(2.8mm), 4MP, lens 2.8mm, Acusense
We are sorry, this product is no longer in our offer.
Hikvision IP dome camera DS-2CD2146G1-I(2.8mm), 4MP, lens 2.8mm, Acusense
×
0/0
DS-1272ZJ-120
Price after login
To order within 48h
DS-1280ZJ-DM18
Price after login
In Stock
DS-1259ZJ
Price after login
In Stock
DS-1271ZJ-110
Price after login
In Stock
DS-1272ZJ-110B
Price after login
To order within 48h
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
104
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,007
Image sensor ["]:
1/2.7
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
10
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Operating temperature [°C]:
-30 up to 50
Weight [g]:
600
Width [mm]:
121
Height [mm]:
92
Depth [mm]:
121
Color:
White
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
2
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Standard Hikvision
Technology and conveniences:
AcuSense
Software
Default IP address:
192.168.1.64
Default login and password:
admin / -
Product description

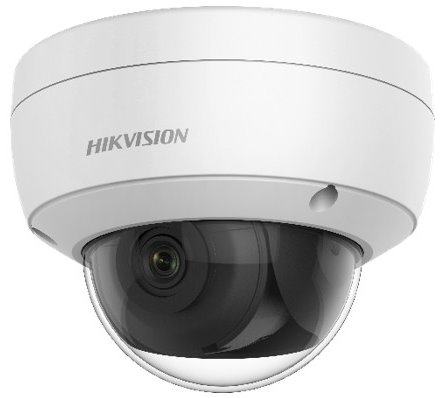

DS-2CD2146G1-I / 28 is 4 megapixel Hikvision outdoor dome camera with a fixed lens 2.8mm and IR illumination up to 30m.
The camera has a maximum resolution of 2688 x 1520px with a wider focal length of 2.8mm (FOV 104°), 2 independent streams, IP67 protection, IK10 antivandal protection, WDR sensor and H.265 codec support.
The camera has a maximum power consumption of 10W with the IR light on and can be powered via a 12V DC connector, or via an Ethernet cable via 802.3af POE.
AcuSense technology
AcuSense technology is used to analyze and filter out false alarms such as rain, snowfall, leaf movement in the wind, rapid alternation of light, shadows, etc., significantly reducing the number of motion-based alarms while saving disk space.
