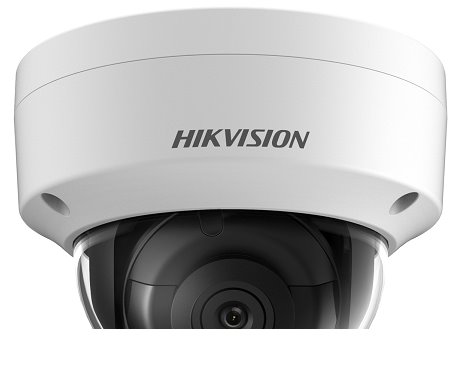

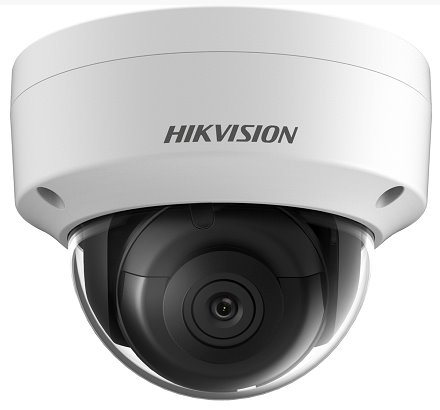

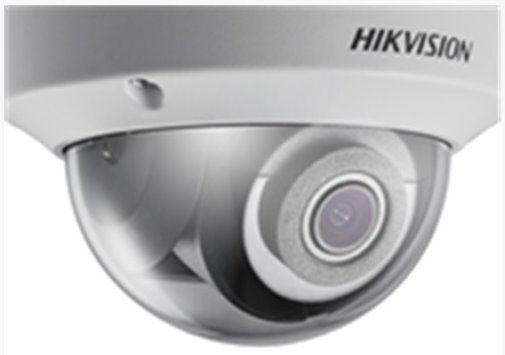

Hikvision IP dome camera DS-2CD2165FWD-I/28, 6MP, lens 2.8mm
We are sorry, this product is no longer in our offer.
Hikvision IP dome camera DS-2CD2165FWD-I/28, 6MP, lens 2.8mm
×
0/0
DS-1259ZJ
Price after login
In Stock
DS-1272ZJ-110B
Price after login
To order within 48h
DS-1271ZJ-110
Price after login
In Stock
DS-1280ZJ-DM18
Price after login
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
True WDR (120 dB) - Darkfighter
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
99
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,008
Image sensor ["]:
1/2.4
Resolution:
6MP
Max. resolution [pixels]:
3072 x 2048
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
7,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
500
Width [mm]:
111
Height [mm]:
82
Depth [mm]:
111
Color:
White
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Standard Hikvision
Software
Default IP address:
192.168.1.64
Default login and password:
Is set by the user at the first startup
Product description
DS-2CD2165FWD-I/28 is Hikvision outdoor dome IP camera which is equipped with 6MPx sensor (3072x2048px, 20fps), 2.8mm fixed lens (horizontal FOV 99°, vertical FOV 61°) and automatic IR up to 30m. Size of image sensor is 1/2.4".
It is possible to power the camera by 12V DC or PoE 802.3af compatible switch or injector. Max. consumption is 7.5W.
The camera supports H265 compresion (and H264 too) and H265+ - it is derived from H265 and it will reduce the bitrate and still maintain sufficient video quality. Local video storage on microSD with size up to 128GB is supported. Of course there is a WDR function (in this case 120dB True WDR Darkfighter). For outdoor use there is IP67 certification and antivandal IK10.
You can conveniently view the image in browsers IE8 and later, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0 and later, or use iVMS for Windows, MAC, Android and iOS as well as Hik-Connect available for Android and iOS
Hikvision is not only the Czech Republic, but also the world leader in CCTV and in addition to their IP cameras, they also have analog cameras or access systems such as ringbells and videophones, card readers and more in their portfolio.
