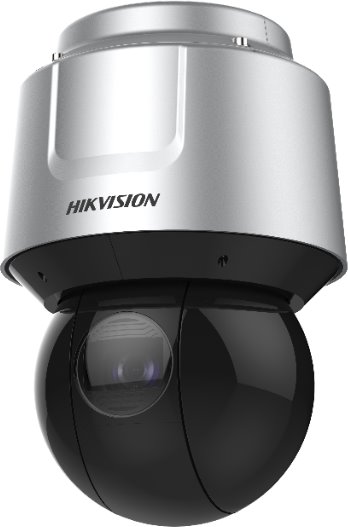

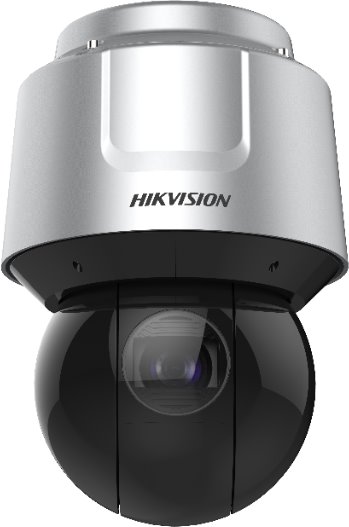

Hikvision IP PTZ camera DS-2DF8A842IXS-AEL(O-STD)(T2), 8MP, 42x zoom
We are sorry, this product is no longer in our offer.
Hikvision IP PTZ camera DS-2DF8A842IXS-AEL(O-STD)(T2), 8MP, 42x zoom
×
0/0
DS-1604ZJ-corner
Price after login
To order within 48h
DS-1604ZJ-box
Price after login
To order within 48h
DS-1663ZJ
Price after login
To order within 48h
DS-1661ZJ
Price after login
To order within 48h
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Zoom (optical):
42x
Zoom (digital):
16x
Lens type:
Varifocal - motorized
Lens [mm]:
6 to 252 (adjustable)
Illumination:
IR
Illumination range [m]:
500
Viewing Angle [°]:
1,7 up to 56,6
Day/night mode:
IR cut filter
Heating:
Yes
Minimum illumination [Lux]:
0,005
Image sensor ["]:
1/1.8
Pan and Tilt:
Pan: 360° endless; Tilt: -20° ~ 90° (Auto Flip)
Speed of Pan and Tilt:
0.1° ~ 210°/s and 0.1° ~ 150°/s
Resolution:
8MP
Max. resolution [pixels]:
3840 x 2160 (4K UHD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3bt
Power type:
AC terminal, PoE
Max. power consumption [W]:
60
Power via connector/terminal:
24V AC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Operating temperature [°C]:
-40 up to 70
Weight [g]:
8500
Width [mm]:
267
Height [mm]:
405
Depth [mm]:
267
Color:
Grey
Compression standard
Bit rate:
32Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Profi Hikvision
Software
Default IP address:
192.168.1.64
Default login and password:
admin / -
Product description
IP kamera DS-2DF8A842IXS-AEL(O-STD)(T2) v provedení PTZ speed dome, disponující 8 MP variofokálním motorizovaným objektivem (3840 x 2160, 30 fps) s ohniskovou vzdáleností 6 - 252 mm, 42x optický zoom, 16x digitální zoom, snímačem 1/1.8", citlivostí 0,005 Lux a výhřevem. Nechybí ani slot na microSD karty o velikosti až 256 GB, IR na vzdálenost 500m, audio i alarmové vstupy/výstupy.
Kameru je možné napájet prostřednictvím 24V AC zdrojem nebo přes 802.3bt (60W) PoE adaptér. Maximální spotřeba kamery je 60 W včetně 6 W pro výhřev a 18 W pro IR.
Klíčové vlastnosti
