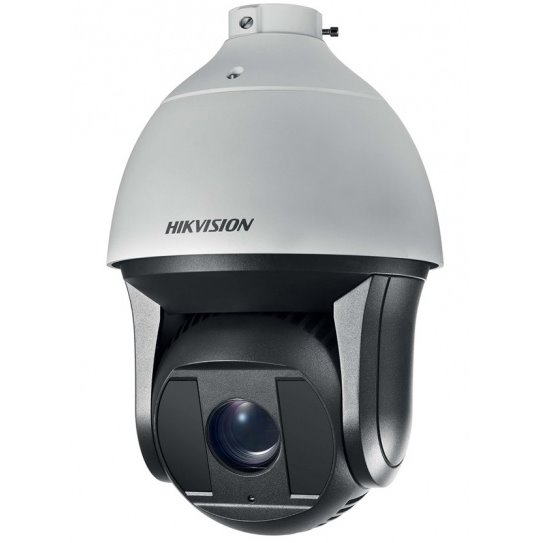

Hikvision IP speed dome kamera DS-2DF8236I-AEL, 2MP, 1920x1080, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, PoE, DF

We are sorry, this product is no longer in our offer.

Hikvision IP speed dome kamera DS-2DF8236I-AEL, 2MP, 1920x1080, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, PoE, DF
Hikvision IP speed dome kamera DS-2DF8236I-AEL, 2MP, 1920x1080, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, PoE, DF
×
0/0
Hikvision IP speed dome kamera DS-2DF8236I-AEL, 2MP, 1920x1080, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, PoE, DF
Hikvision IP speed dome kamera DS-2DF8236I-AEL, 2MP, 1920x1080, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, PoE, DF

Manufacturer

Hikvision

Code10901316
Part No.DS-2DF8236I-AEL
  • Related products7
Hikvision wall mount DS-1602ZJ - wall mount for PTZ speed dome cams
DS-1602ZJ
Price after login
To order within 48h
Hikvision pole bracket DS-1602ZJ-pole - pole bracket for PTZ speed dome cams
DS-1602ZJ-pole
Price after login
To order within 48h
Hikvision DS-1663ZJ - Ceiling mount for PTZ and speed dome cameras
DS-1663ZJ
Price after login
To order within 48h
Hikvision DS-1661ZJ- ceiling mount 200mm for PTZ (speed dome) cams
DS-1661ZJ
Price after login
To order within 48h
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
show moreshow less 2
Parameters
Download
GPSR

Product description

HikvisionDarkfighterseriesDS-2DF8236I-AEL(W) smart PTZ dome cameras are able to capture high quality colored images in dim light environment with its cutting-edge low illumination level down to 0.002Lux (color). Embedded with 1/1.9’’ progressive scan CMOS chip makes true WDR (120dB) and 2MP real-time resolution possible. With the 36X optical zoom Day/Night lens, the camera offers more details over expansive areas.

The Darkfighter PTZ camera also features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve image quality in challenging conditions.

GPSR

Contact:
Hikvision Czech s.r.o.
Vyskočilova 1481/4
HSRC@hikvision.com

Bussines information

Tomáš Petržílka, +420 702 564 566 , tomas.petrzilka@discomp.cz

Technical parameters

Camera

WDR: True WDR (120 dB) - Darkfighter
Zoom (optical): 36x
Zoom (digital): 16x
Lens type: Varifocal - motorized
Lens [mm]: 5,7 to 205,2 (adjustable)
Illumination: IR
Illumination range [m]: 200
Viewing Angle [°]: 2,3 up to 65,1
Day/night mode: IR cut filter
Minimum illumination [Lux]: 0,002
Image sensor ["]: 1/1.9
Pan and Tilt: Pan: 360° endless; Tilt: -20° ~ 90° (Auto Flip)
Speed of Pan and Tilt: 0.1° ~ 160°/s and 0.1° ~ 120°/s


Resolution: 2MP
Max. resolution [pixels]: 1920 x 1080 (Full HD)

Connectors and Interfaces

Slot for Memory Card: microSD - up to 128GB
Audio: Yes
Alarm: Yes
LAN speed: (1) 10/100Mbps

Power

Power over Ethernet: 802.3at+
Power type: PoE, AC terminal
Max. power consumption [W]: 60
Power via connector/terminal: 24V AC

Physical characteristics

Protection class: IP66
Purpose: Outdoor
Antivandal (Impact protection): IK10
Operating temperature [°C]: -40 up to 65
Weight [g]: 8000
Width [mm]: 266
Height [mm]: 365
Depth [mm]: 266

Compression standard

Number of streams: 3
Video compression: MPEG4, H.264, MJPEG

Software

Default IP address: 192.168.1.64
Default login and password: admin / -
