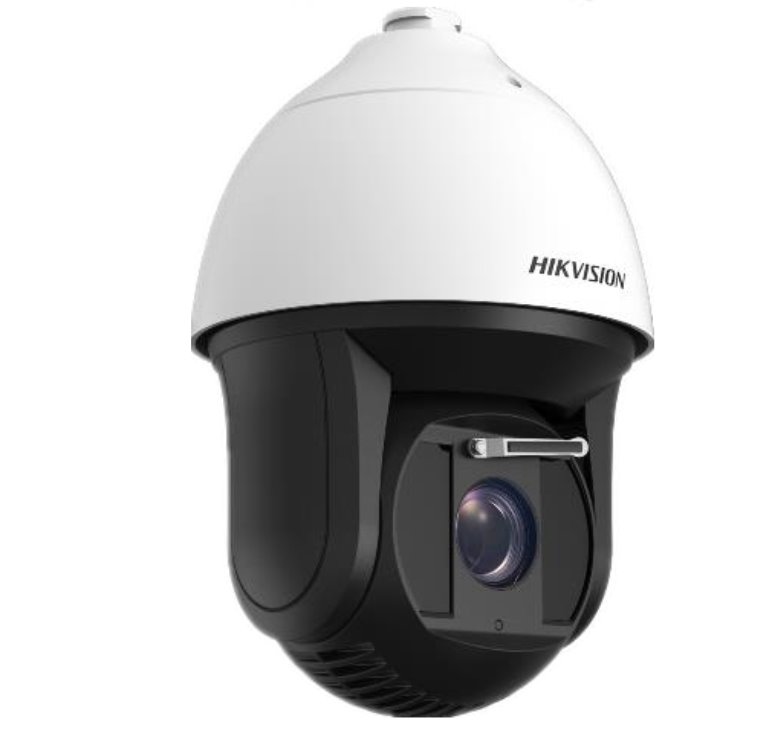

Hikvision IP speed dome camera DS-2DF8836IV-AELW, 8MP(4K), 4092×2160, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, DF

We are sorry, this product is no longer in our offer.

Hikvision IP speed dome camera DS-2DF8836IV-AELW, 8MP(4K), 4092×2160, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, DF
Hikvision IP speed dome camera DS-2DF8836IV-AELW, 8MP(4K), 4092×2160, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, DF
×
0/0
Hikvision IP speed dome camera DS-2DF8836IV-AELW, 8MP(4K), 4092×2160, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, DF
Hikvision IP speed dome camera DS-2DF8836IV-AELW, 8MP(4K), 4092×2160, 25fps, 200m IR, IR cut, 36x Zoom, IP66, WDR, DF

Manufacturer

Hikvision

Code10901319
Part No.DS-2DF8836IV-AELW
  • Related products2
Masterlan patch cable UTP, Cat5e, 1m, yellow
PCU5E-1YW-MS

0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
PCU5E-5-MSC

3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR

Product description

Hikvision4K series DS-2DF8836IV-AELW smart PTZ dome cameras are able to capture high quality colored images in dim light environment with its cutting-edge low illumination level down to 0.02Lux (color). Embedded with 1/1.9’’ progressive scan CMOS chip makes WDRand 8MP real-time resolution possible. With the 36X optical zoom Day/Night lens, the camera offers more details over expansive areas.

The 4K series PTZ camera also features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with great improvement on security efficiency, more importantly, with key events / objects being recorded for further forensic needs. These features, combined with smart tracking, which enables the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog is further supported to improve image quality in challenging conditions.

GPSR

Contact:
Hikvision Czech s.r.o.
Vyskočilova 1481/4
HSRC@hikvision.com

Bussines information

Tomáš Petržílka, +420 702 564 566 , tomas.petrzilka@discomp.cz

Technical parameters

Camera

WDR: True WDR (120 dB) - Darkfighter
Zoom (optical): 36x
Zoom (digital): 16x
Lens type: Varifocal - motorized
Lens [mm]: 5,7 to 205,2 (adjustable)
Illumination: IR
Illumination range [m]: 200
Viewing Angle [°]: 2 up to 56,8
Day/night mode: IR cut filter
Minimum illumination [Lux]: 0,02
Image sensor ["]: 1/1.9
Pan and Tilt: Pan: 360° endless; Tilt: -20° ~ 90° (Auto Flip)
Speed of Pan and Tilt: 0.1° ~ 160°/s and 0.1° ~ 120°/s


Resolution: 8MP
Max. resolution [pixels]: 4096 x 2160 (4K UHD)

Connectors and Interfaces

Slot for Memory Card: microSD - up to 128GB
Audio: Yes
Alarm: Yes
LAN speed: (1) 10/100Mbps

Power

Power over Ethernet: 802.3at+
Power type: PoE, AC terminal
Max. power consumption [W]: 60
Power via connector/terminal: 24V AC

Physical characteristics

Protection class: IP66
Purpose: Outdoor
Antivandal (Impact protection): IK10
Operating temperature [°C]: -40 up to 65
Weight [g]: 8000
Width [mm]: 266
Height [mm]: 435
Depth [mm]: 266

Compression standard

Number of streams: 3
Video compression: MJPEG, H.264

Software

Default IP address: 192.168.1.64
Default login and password: admin / -
