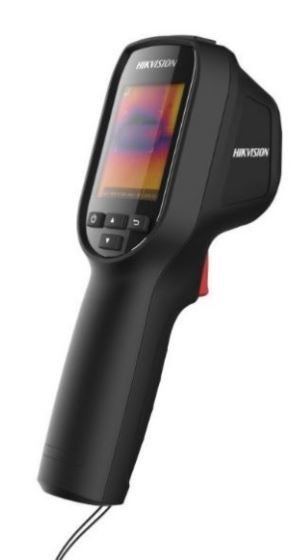

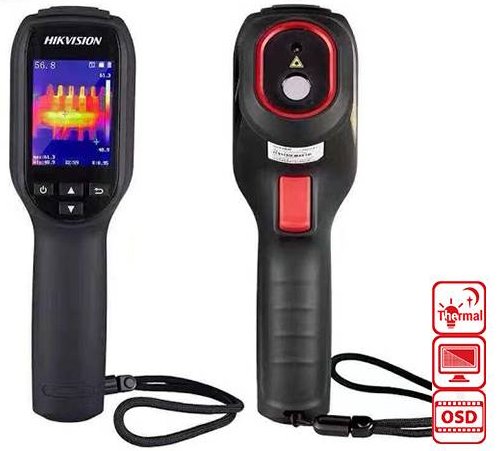

Hikvision handheld thermal camera - DS-2TP31-3AUF, 160x120 termo
We are sorry, this product is no longer in our offer.
Parameters
Download
Video
GPSR
Technical parameters
Camera
Image type:
Thermal
Thermography
Temperature measurement:
Thermal
Temperature range [°C]:
-20 up to 550
Thermal sensor resolution [pixels]:
160 x 120
Thermal lens [mm]:
3,1 (fixed)
Temperature accuracy [°C]:
±2°C, ±2%
Thermal viewing Angle [°]:
37
IFOV [mRad]:
5,48
Display resolution:
320 x 240
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 128GB
Power
Power type:
USB (5V)
Max. power consumption [W]:
1,2
Power via connector/terminal:
3.7V / 0.4A
Physical characteristics
Protection class:
IP54
Purpose:
Indoor
Operating temperature [°C]:
-10 up to 50
Weight [g]:
350
Width [mm]:
59
Height [mm]:
196
Depth [mm]:
117
General
Camera class:
Profi Hikvision
Video
Product description
The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equipped with a 160×120 resolution thermal detector. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.
Download
Datasheet Thermal brochureGPSR
