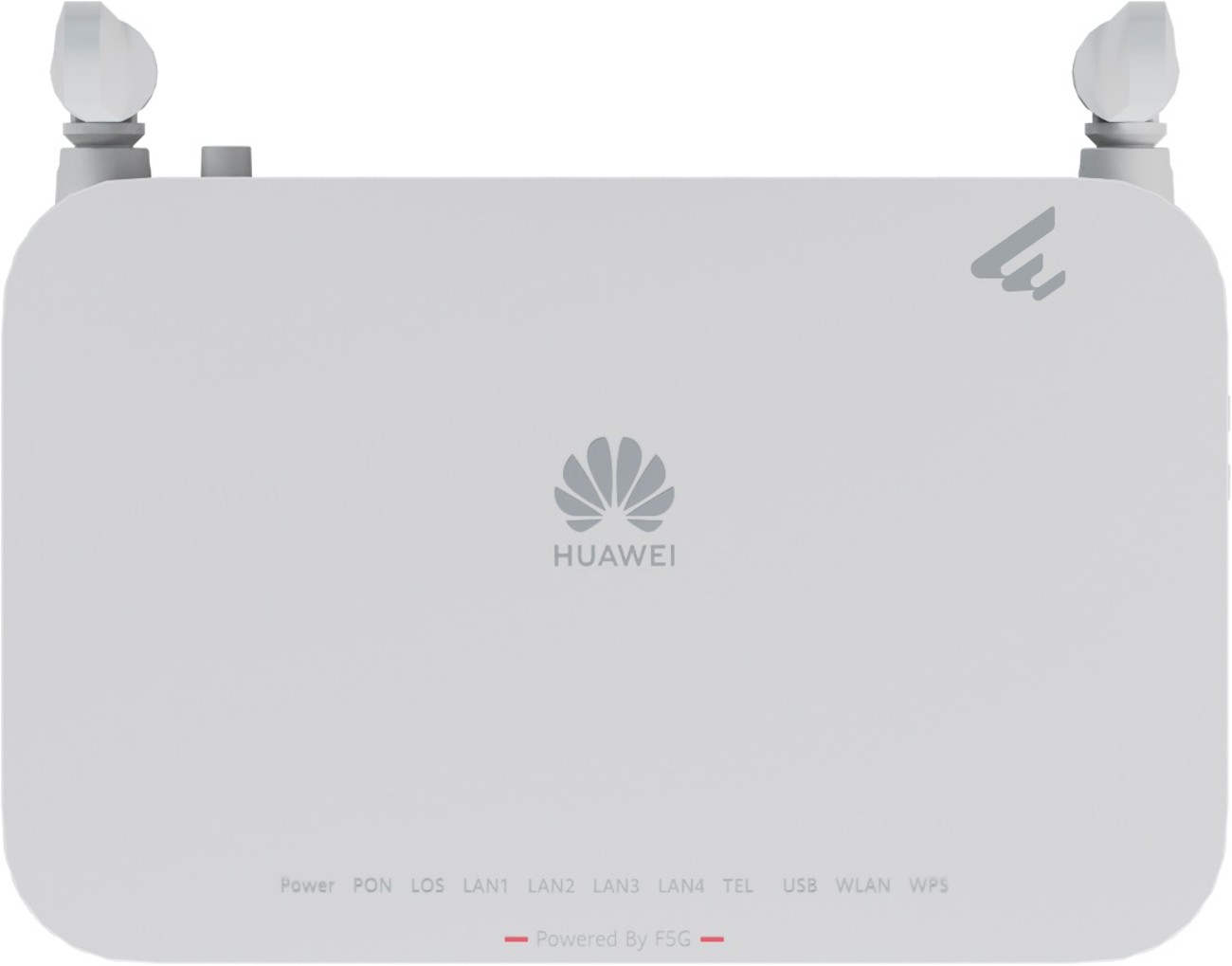

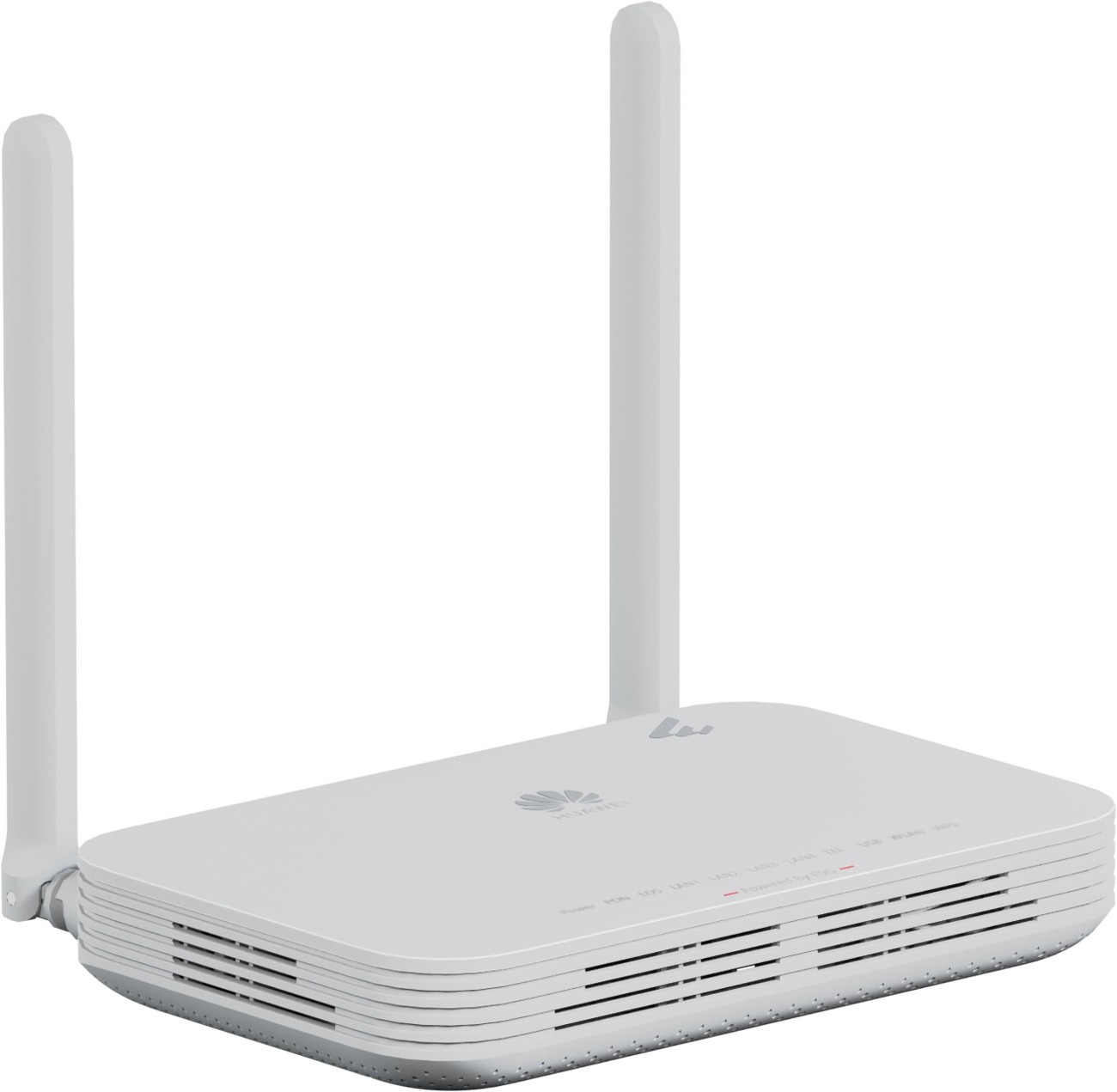

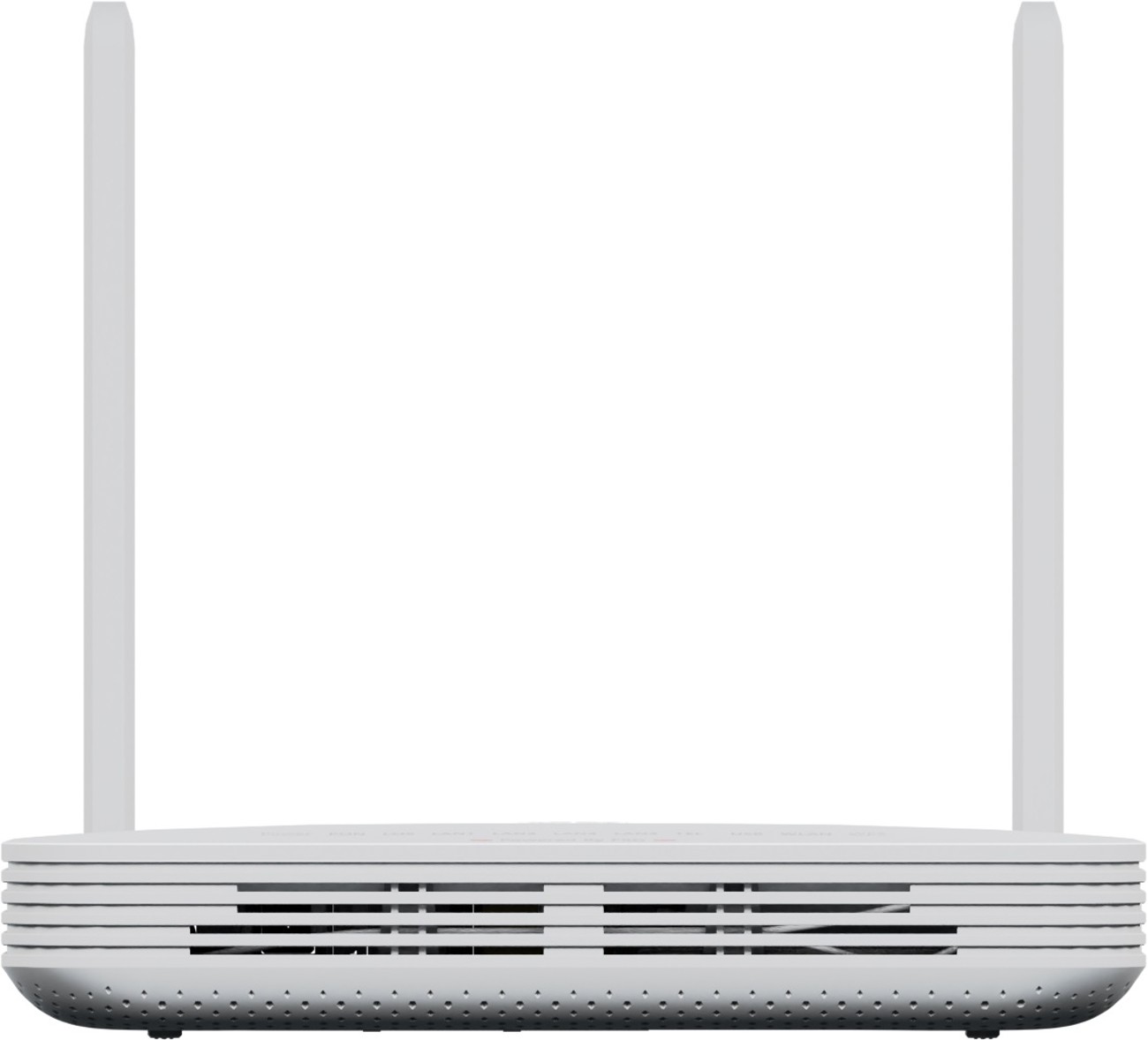

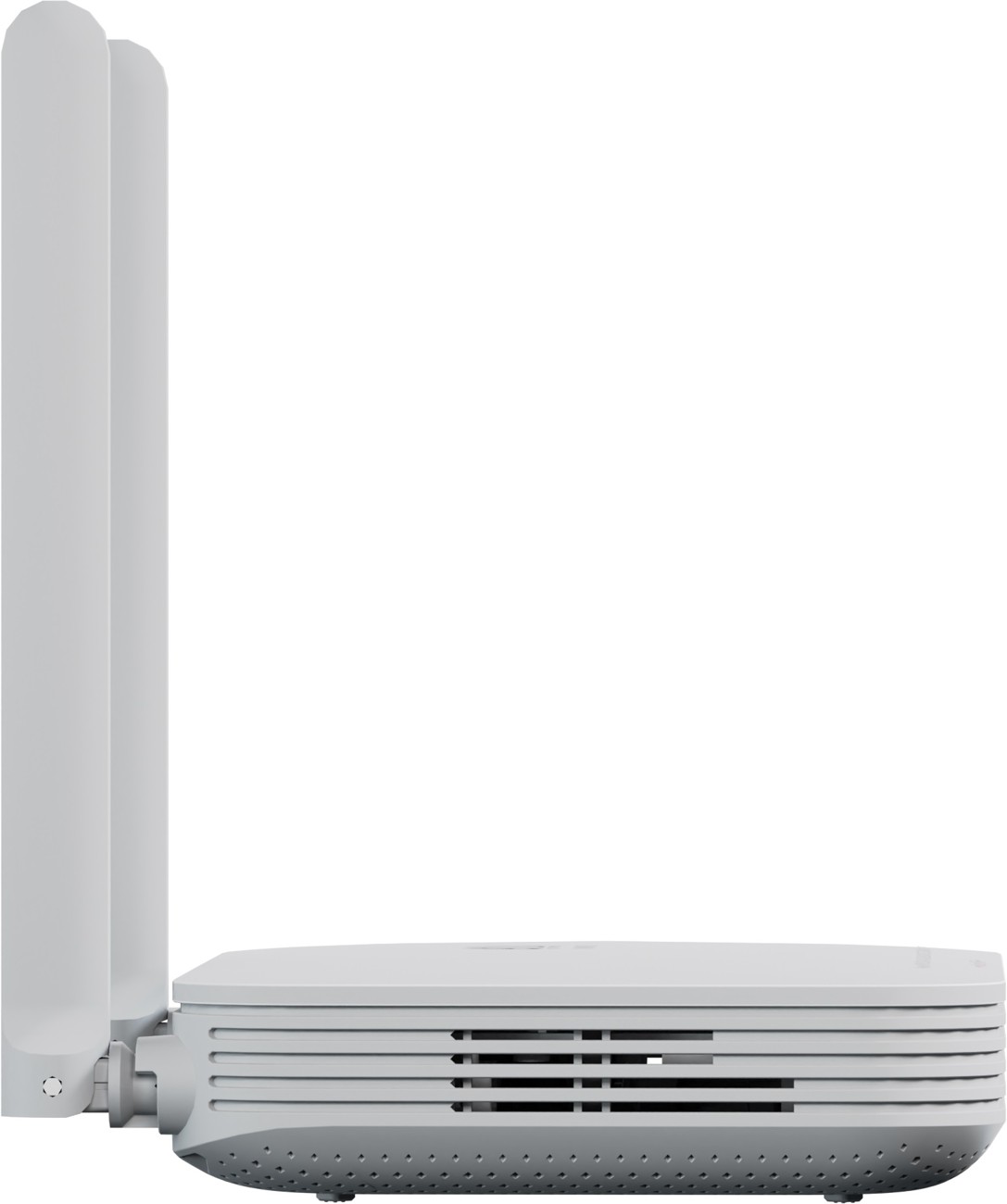

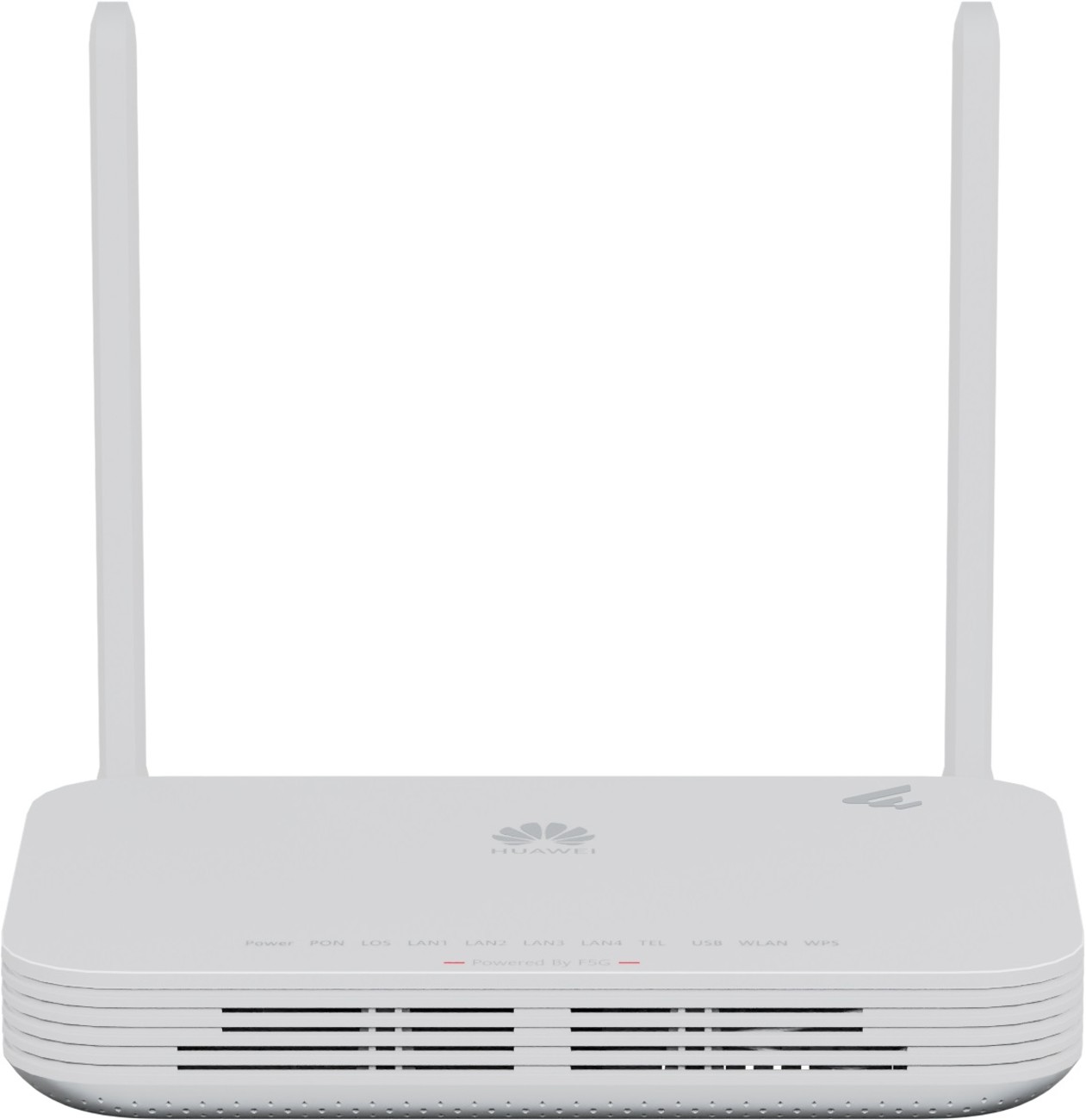

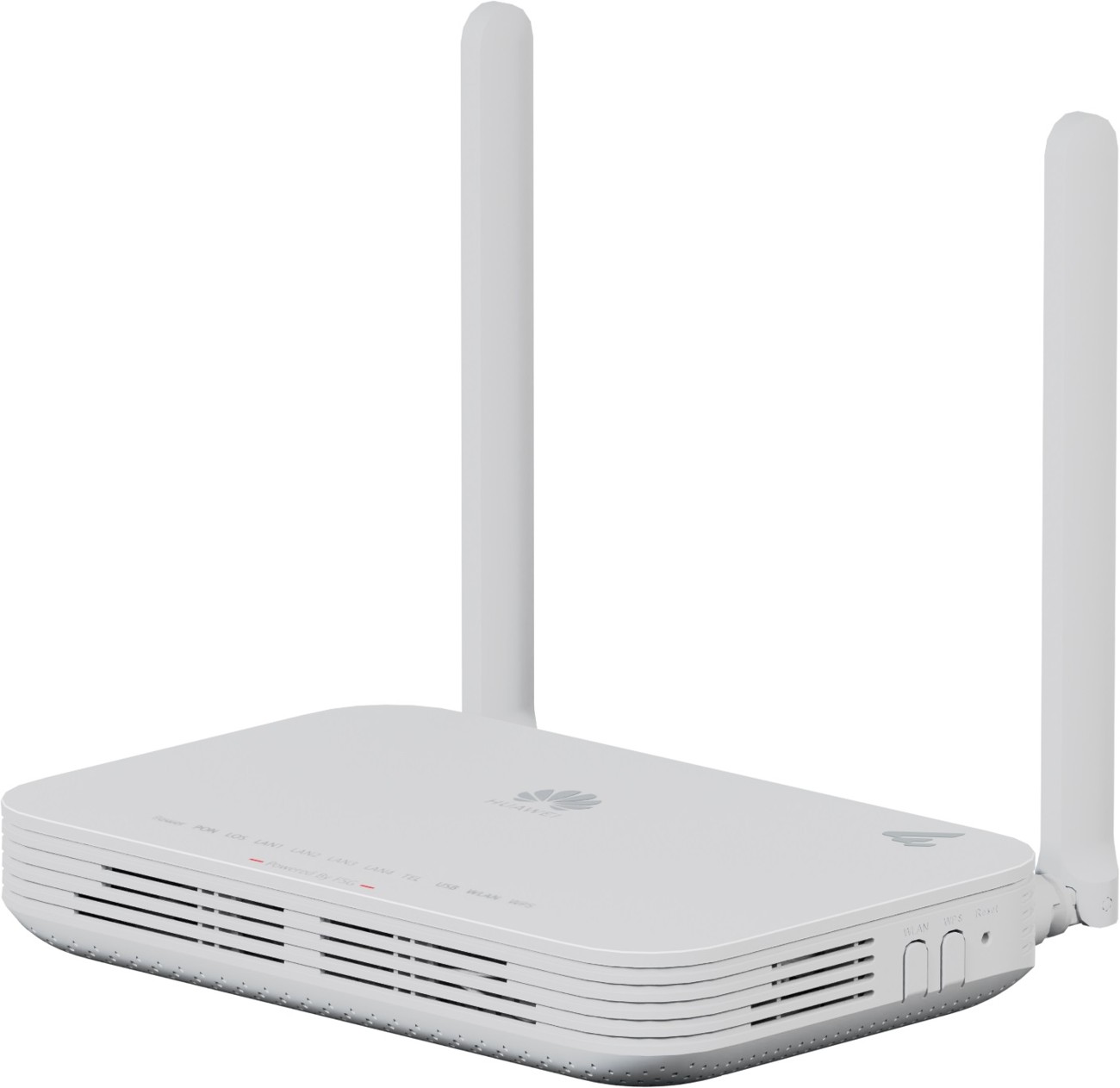

Huawei eKitOptiX F600D-30-4G1V, GPON ONU bridge, WiFi 6
Your price excl. VAT
83.66 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 83.72 EUR |
| Your price incl. VAT (21%) | 101.30 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907195 | |
| Part No. | F600D-30-4G1V | |
F1001-AC
496.78 EUR excl. VAT
601.10 EUR incl. VAT
Not in stock
F1001-AC
496.78 EUR excl. VAT
601.10 EUR incl. VAT
Not in stock
F1002-AC-H1-BOB
646.94 EUR excl. VAT
782.80 EUR incl. VAT
Not in stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Security:
WPA3 AES
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Fixed
Fixed antennas:
2
Antenna gain [dBi]:
5
Optics
Transmission speed:
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]:
1490 / 1310
Transfer type:
GPON
Polishing type:
UPC
Receiver sensitivity [dBm]:
-27
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(4) 10/100/1000Mbps
PON SFP cages:
1
Power
Max. power consumption [W]:
18
Power via connector/terminal:
12V / 1,5A
Physical characteristics
Buttons:

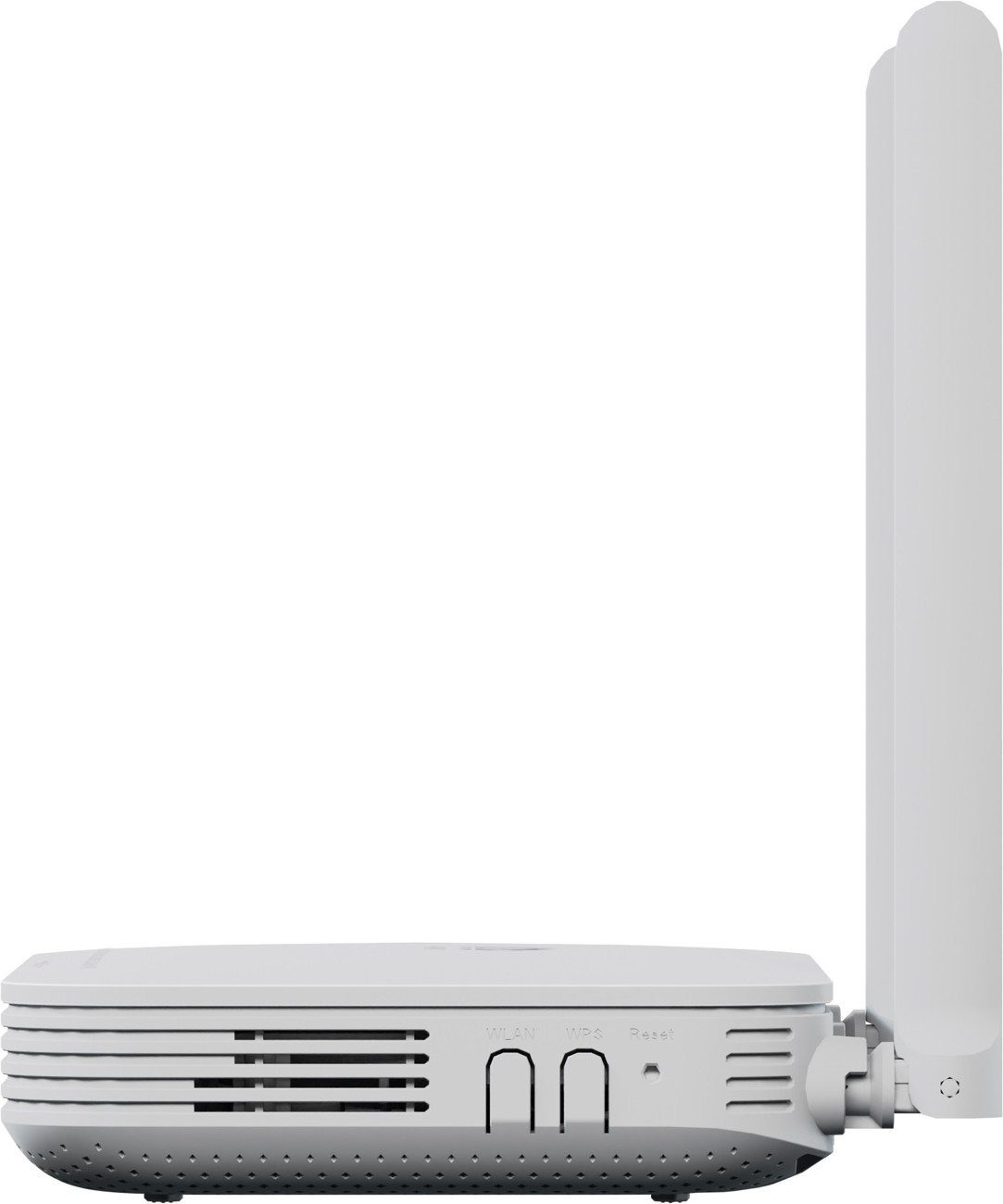

Reset, WPS, power, WiFi
Width [mm]:
195
Height [mm]:
35
Depth [mm]:
125
Product description
The eKitOptiX F600D-30-4G1V is a intelligent bridge-type Optical Network Unit (ONU) in Huawei MiniFTTO solution. By using the GPON technology, ultra-broadband access is provided for users. The F600D-30-4G1V supports 802.11ax dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the F600D-30-4G1V a perfect option for broadband access.

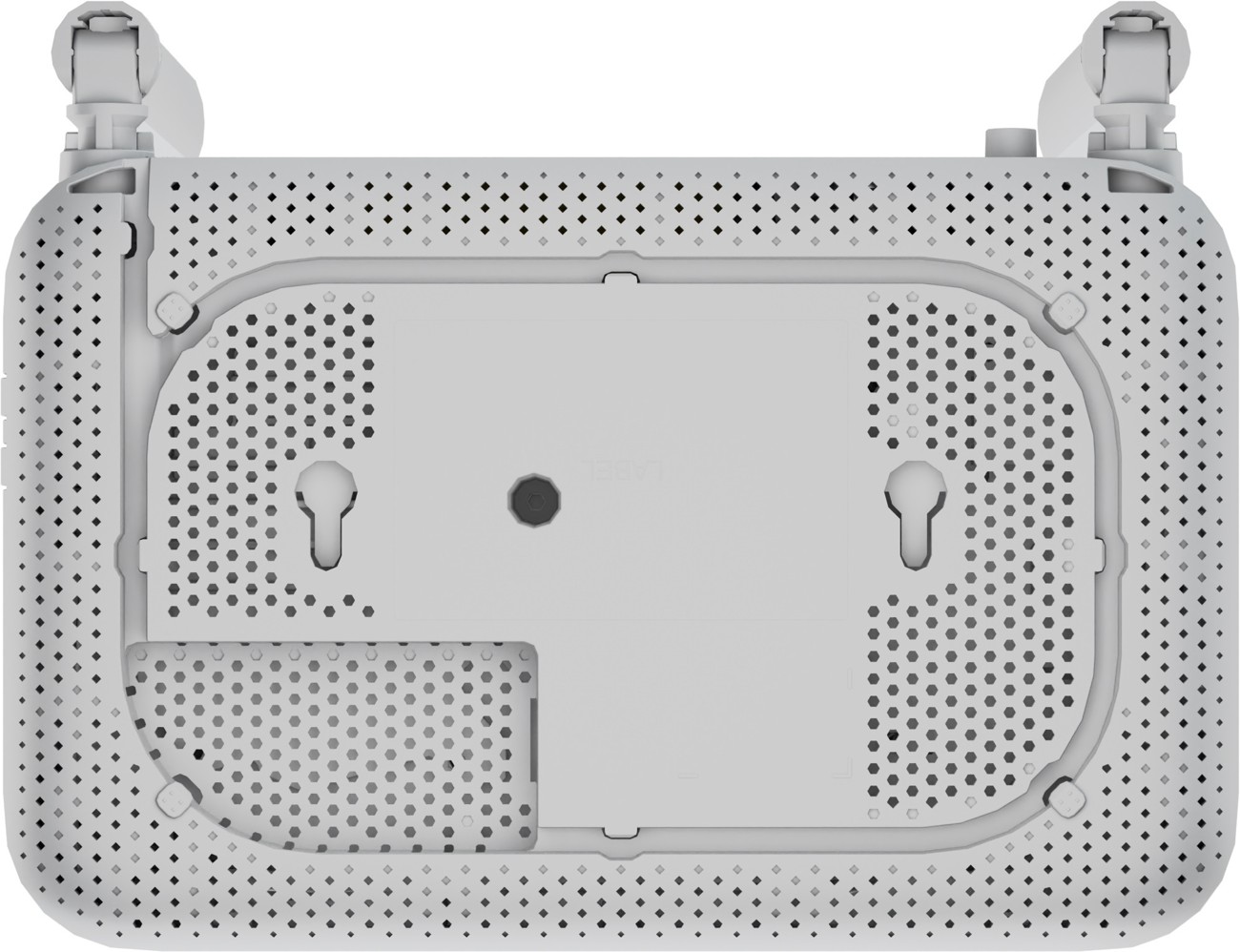

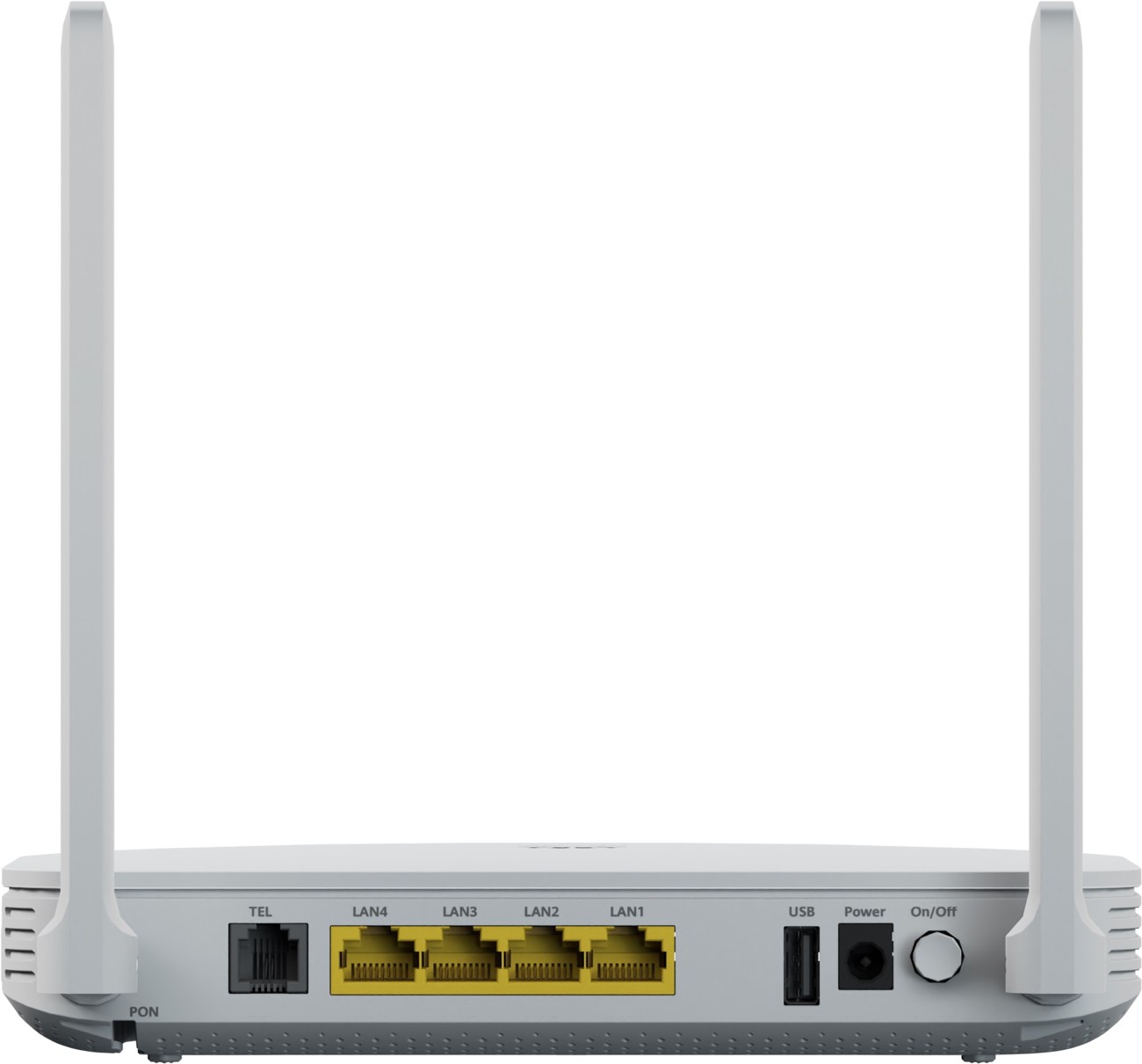

GPON ONU bridge with WiFi 6 support (802.11a/b/g/n/ac/ax) with max. modulation speed 574/2402Mbps. It is equipped with 4x GLAN ports. 1x USB 2.0 (FTP, SAMBA, DLNA support) and 1x POTS port for phone line. The GPON port for connecting an optical cable with a SC/UPC connector is ingeniously hidden on the bottom of the device.
Device comes from official Czech distribution.
Plug-and-Play

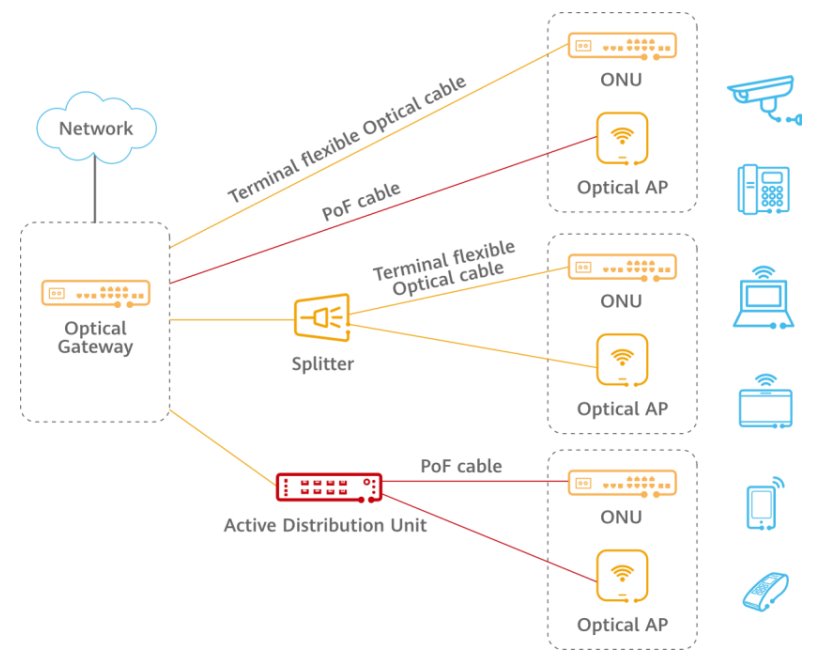

Configurations are automatically delivered by the MiniFTTO Gateway, so on-site commissioning is not required.
