Huawei ICD OPS i5 D - Computer Module for IdeaHub
Huawei ICD OPS i5 D - Computer Module for IdeaHub
×
0/0
Your price excl. VAT
961.99 EUR
| Your price incl. VAT (21%) | 1 164.01 EUR |
|---|---|
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907247 | |
| Part No. | 06190037 | |
| Warranty | 12 months | |
You have a choice of 2 variantscompare all
Intel Core i5, 8GB RAM, 128GB SSD
06190037
961.99 EUR
Intel Core i7, 16GB RAM, 512GB SSD
06190034
1 612.49 EUR
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 20.1.2026
PCU5E-5-MSC
3.78 EUR excl. VAT
4.57 EUR incl. VAT
stiqtyfree:429
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
USB ports 3.0:
3
M.2 slots:
2
HDMI interface (resolution) [pixels]:
4096 x 2160 (4K UHD)
DP interface (resolution) [pixels]:
4096 x 2160 (4K UHD)
Audio:
1 input, 1 output
LAN speed:
(1) 10/100/1000Mbps
USB ports 2.0:
3
Power
Max. power consumption [W]:
90
Physical characteristics
Buttons:
Reset, power
Operating temperature [°C]:
0 up to 40
Weight [kg]:
1,5
Width [mm]:
180
Height [mm]:
30
Depth [mm]:
195
Color:
Black
Hardware
RAM memory size [GB]:
8
CPU:
Core i5
Internal storage [MB]:
128 GB
Product description

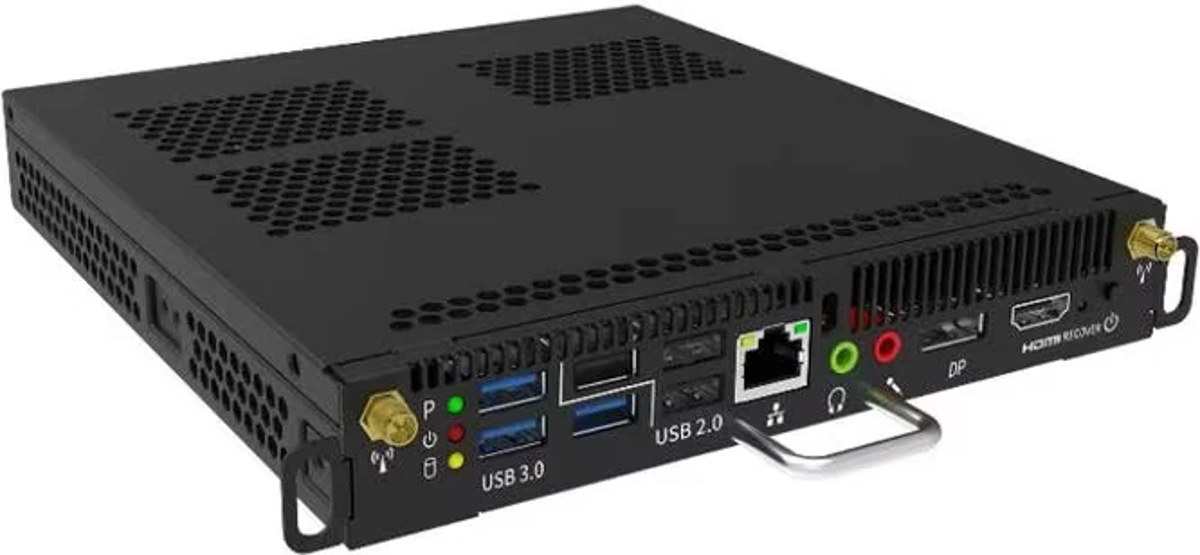

The Huawei ICD OPS i5 D is a compact computer module based on the Intel OPS-C standard, designed for integration with Huawei IdeaHub smart whiteboards. It is equipped with an Intel® Core™ i5-10500 processor and integrated Intel® UHD Graphics 630, supporting dual independent 4K output. Installation is simple - the module slides directly into the OPS slot, requiring no additional cables or external power supply.

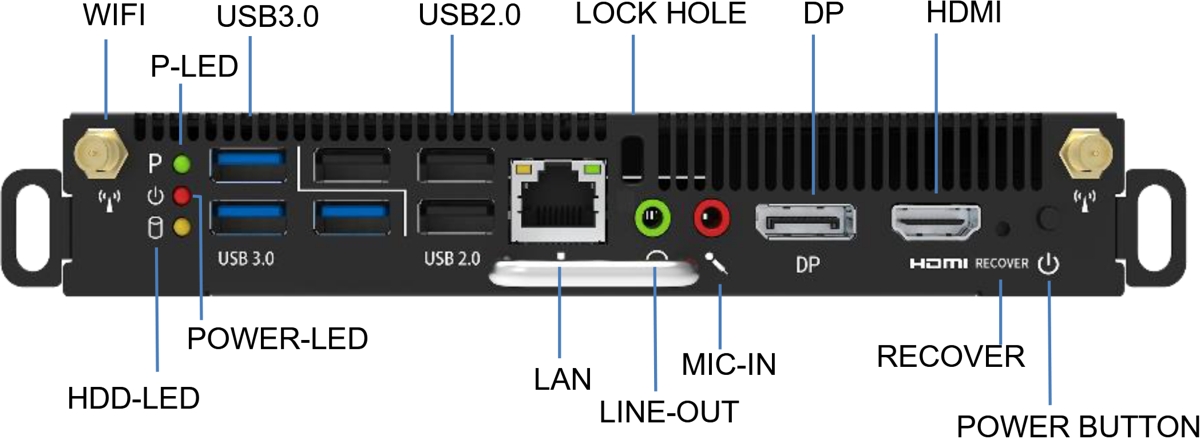

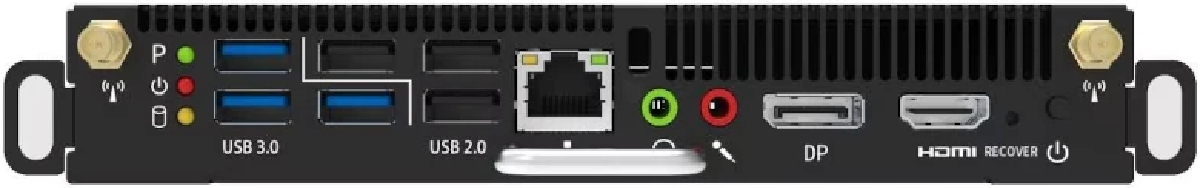

The module includes 8GB DDR4 RAM and a 128GB M.2 SSD for fast system startup. It also offers (1) M.2 2230 slot for further expansion and (1) RJ-45, (3) USB 3.0, (3) USB 2.0, (1) HDMI 1.4, (1) DisplayPort 1.2, audio line-out a mic-in. The operating system is Windows 10 IoT Enterprise.
