Huawei OptiXstar F200D-8P, GPON ONU, 8x POE
Huawei OptiXstar F200D-8P, GPON ONU, 8x POE
×
0/0
Your price excl. VAT
336.25 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 336.31 EUR |
| Your price incl. VAT (21%) | 406.94 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907198 | |
| Part No. | F200D-8P | |
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:123
_17:
avail:2
infocode: stock
In Stock
PCU5E-5-MSC
3.76 EUR excl. VAT
4.55 EUR incl. VAT
stiqtyfree:591
_17:
avail:2
infocode: stock
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
Transmission speed:
2.488 / 1.244 Gbps
Transfer type:
GPON
Polishing type:
UPC
Receiver sensitivity [dBm]:
-27
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(8) 10/100/1000Mbps
PON SFP cages:
1
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
120
Max. power consumption [W]:
135
Power via connector/terminal:
56V DC
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-10 up to 55
Width [mm]:
220
Height [mm]:
35
Depth [mm]:
150
Product description

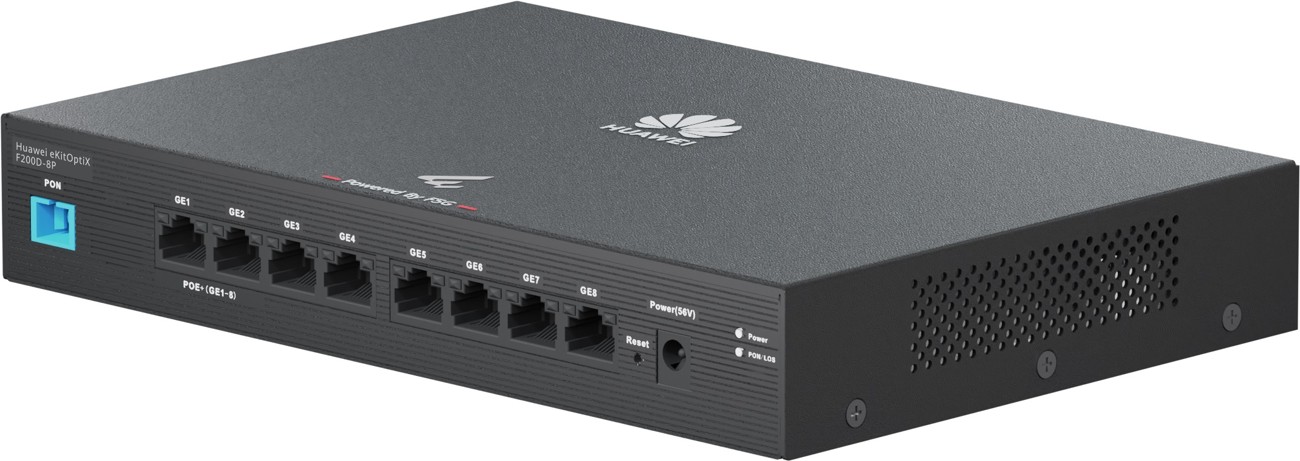

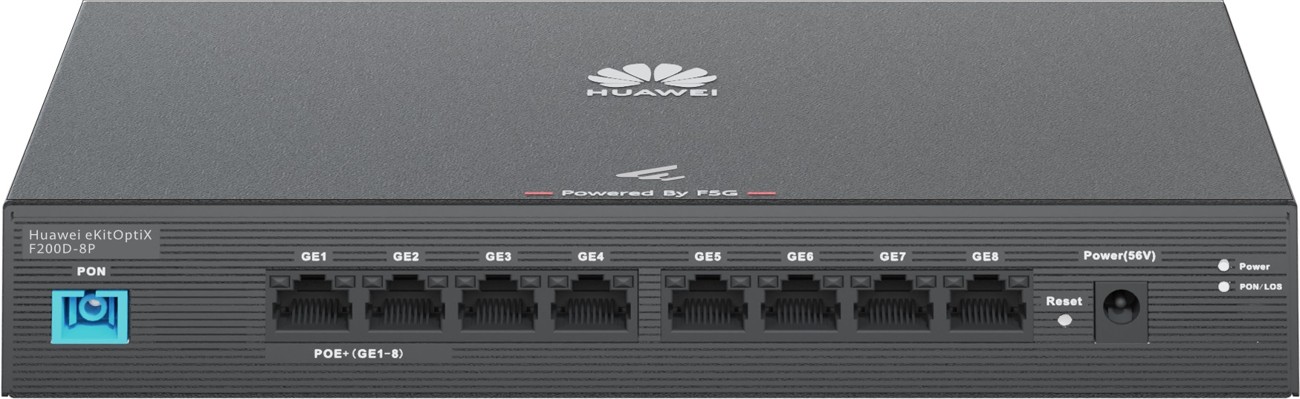

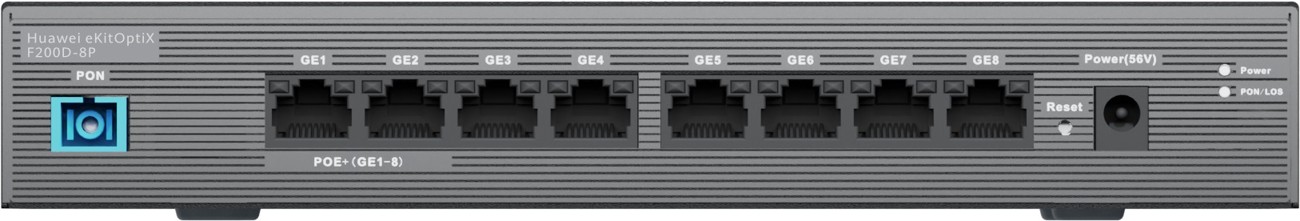

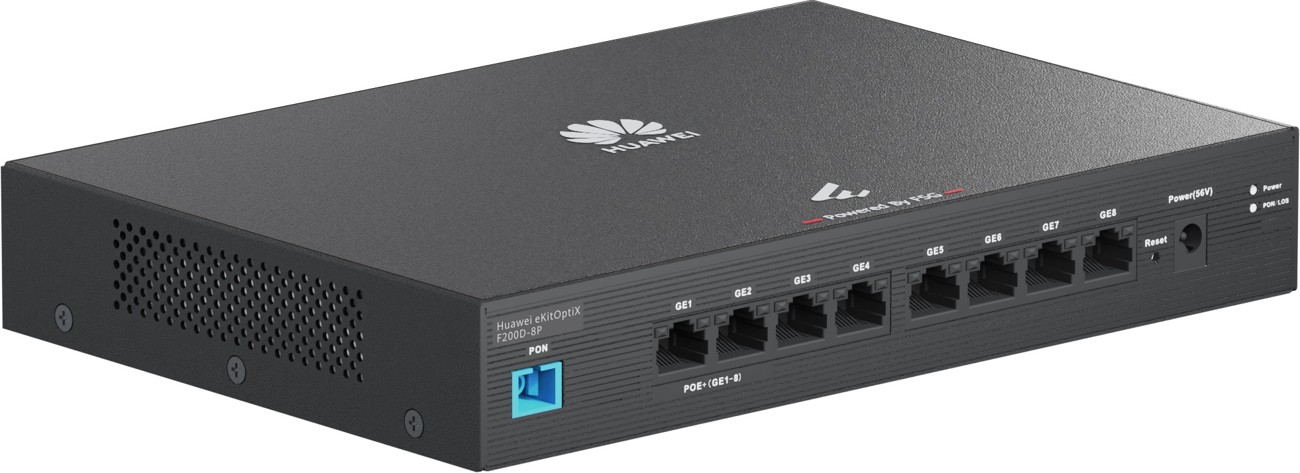

The Huawei F200D-8P is a bridge-type ONU unit designed for MiniFTTO installations. It features 1 GPON port (SC/UPC) and 8 10/100/1000M Ethernet ports with PoE support (802.3af/at) on all ports. It offers a total PoE budget of 120W. This ONU unit is suitable for enterprise network installations, where its optical uplink enables connectivity to remote parts of the network while providing PoE power for devices such as surveillance cameras or wireless access points.
Package Contents
Download
DatasheetGPSR
