Huawei OptiXstar F600-30-1GH, Optical Access point
Your price excl. VAT
141.67 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 141.73 EUR |
| Your price incl. VAT (21%) | 171.49 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907194 | |
| Part No. | F600C-30-1GH | |
F1001-AC
496.78 EUR excl. VAT
601.10 EUR incl. VAT
Not in stock
ATB3120-S-8-XC/UPC-2
221.90 EUR excl. VAT
268.50 EUR incl. VAT
Not in stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
23
Security:
WPA3 AES
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Antenna gain [dBi]:
5
Optics
Transmission speed:
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]:
1490 / 1310
Transfer type:
GPON
Polishing type:
UPC
Receiver sensitivity [dBm]:
-27

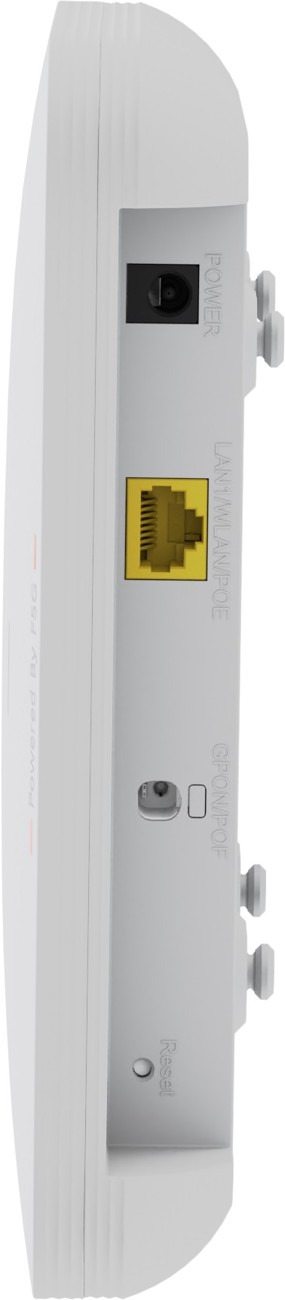

Connectors and Interfaces
Optical Connectors:
(1) XC
LAN speed:
(1) 10/100/1000Mbps
PON SFP cages:
1
Power
Power over Fiber:
56V
Max. power consumption [W]:
11
Power via connector/terminal:
12V / 1,5A
Physical characteristics
Buttons:
Reset
Operating temperature [°C]:
-10 up to 50
Width [mm]:
200
Height [mm]:
200
Depth [mm]:
38
Product description

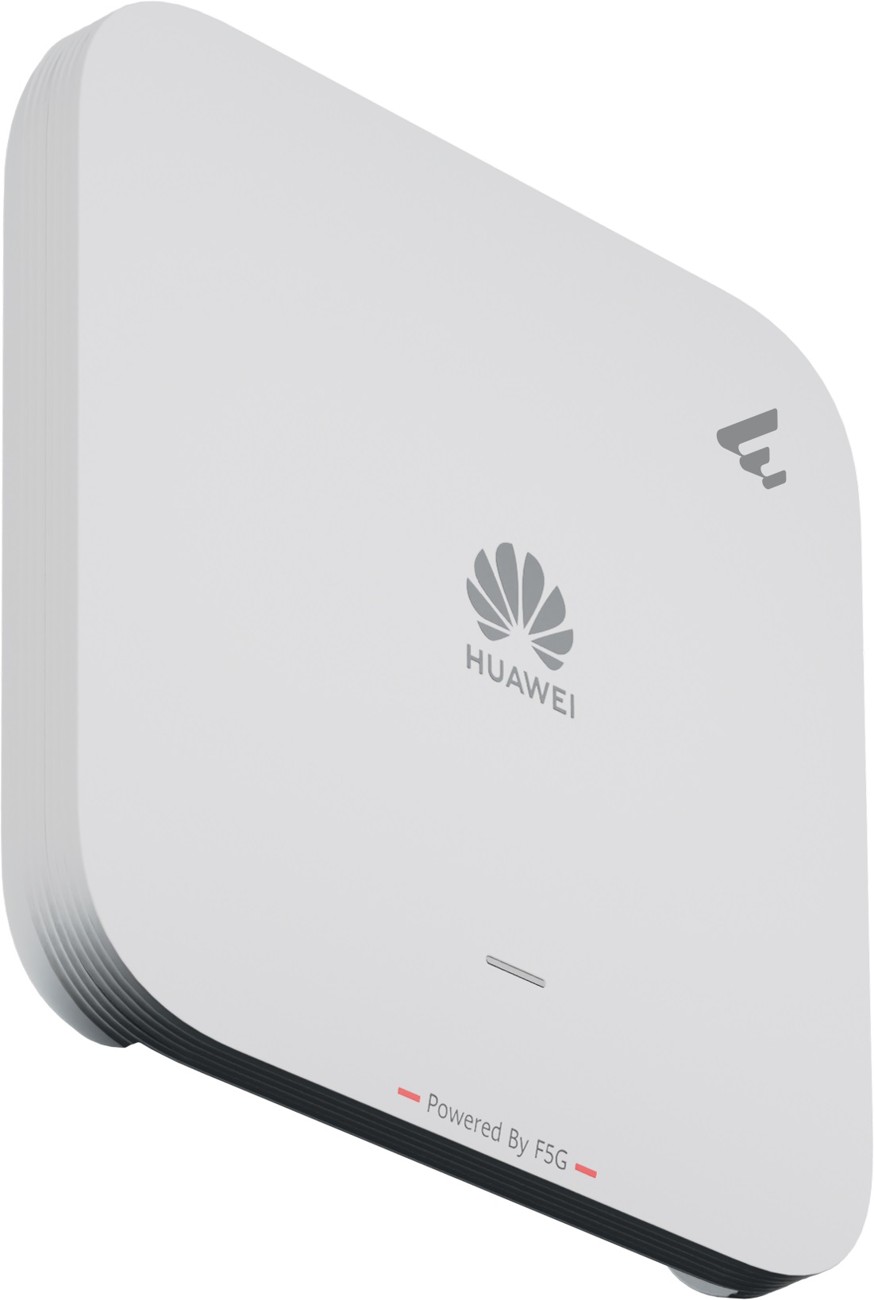

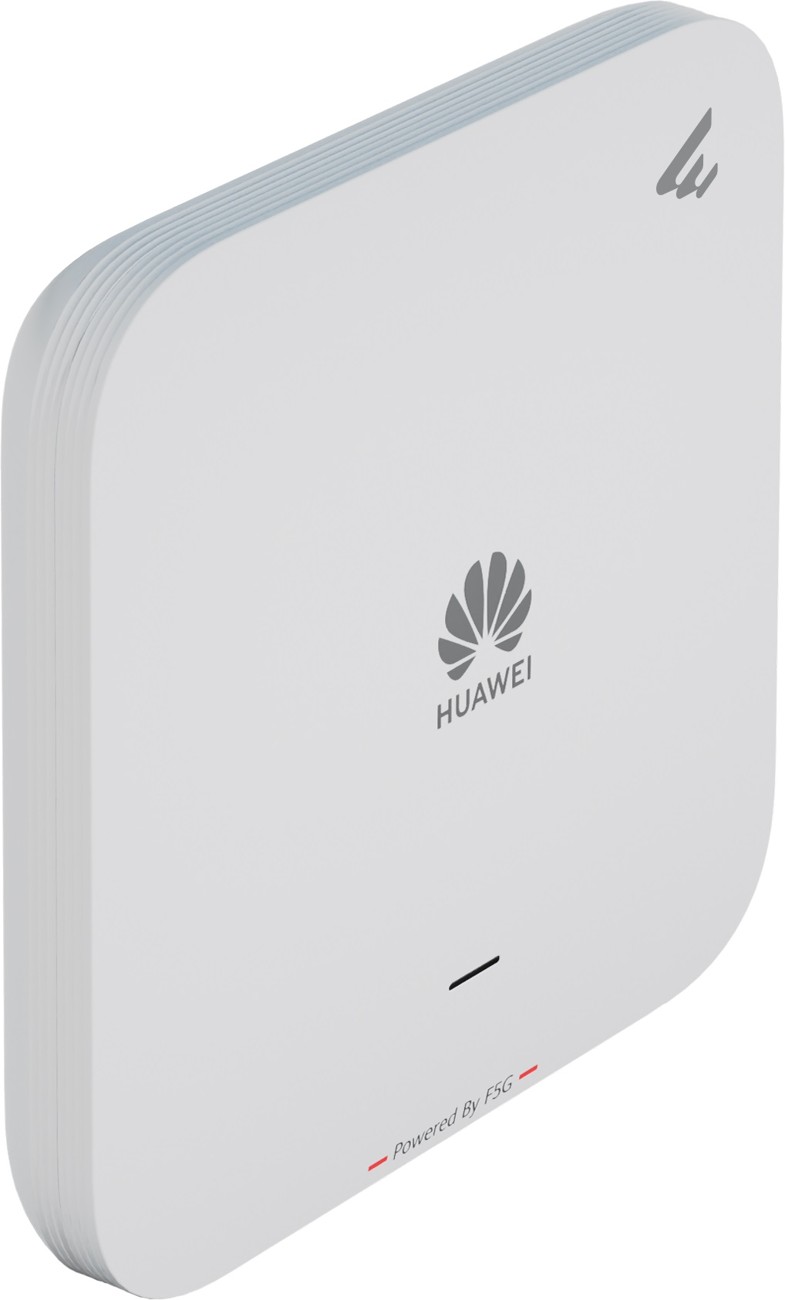

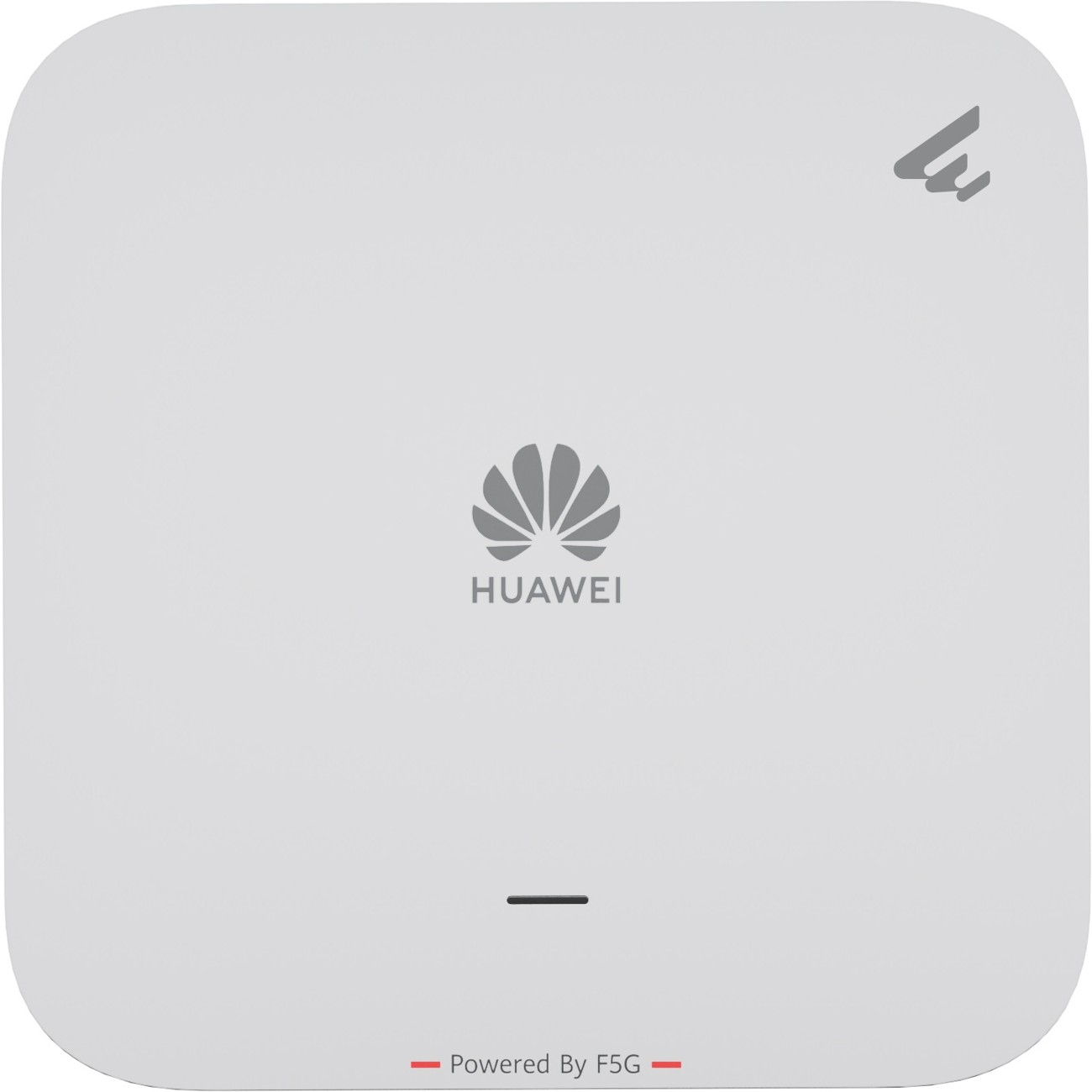

The Huawei OptiXstar F600C-30-1GH is an optical access point designed for MiniFTTO applications. When used with a compatible cable and active component, it supports PoF (Power over Fiber) technology. WiFi 6 with 160 MHz channel support offers modulation speeds of 574 / 2402 Mbps. In addition to the optical GPON port, the access point is also equipped with one GE Ethernet port.

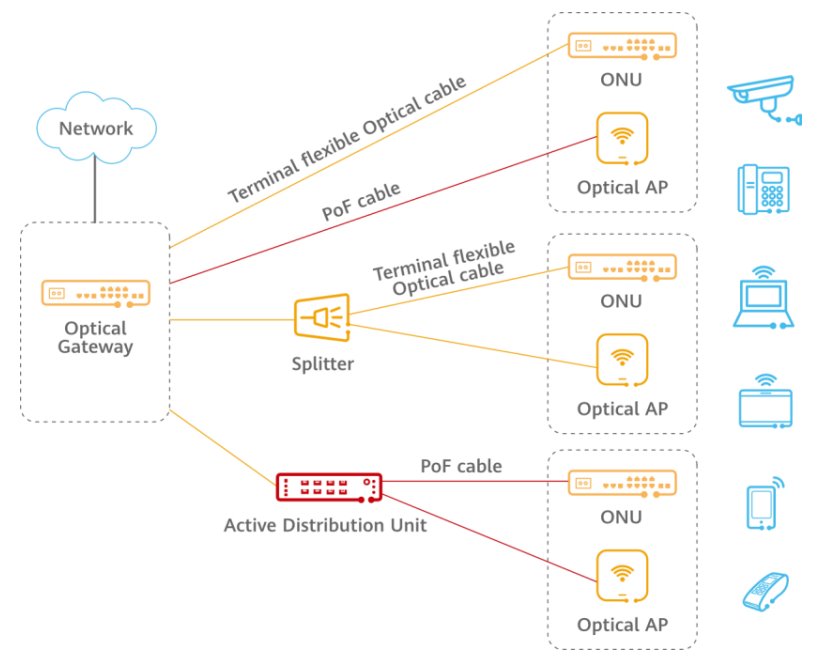

To power the device via the optical port, use Huawei photoelectric cables and a PoF power distributor. Configuration is handled by the F1001 optical gateway, enabling centralized wireless network management including roaming. The access point provides reliable and stable gigabit connectivity for your wireless devices, supporting up to 64 simultaneous connections.
Download
Datasheet Quick Start GuideGPSR
