In Stock
Huawei OSX002003, GPON OLT SFP optical module, Class C+
Huawei OSX002003, GPON OLT SFP optical module, Class C+
×
0/0
New product
Your price excl. VAT
83.15 EUR
| Recycling fee | 0.06 EUR |
|---|---|
| Your price with RF | 83.21 EUR |
| Your price incl. VAT (21%) | 100.68 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Huawei |
|
|---|---|---|
| Code | 10907282 | |
| Part No. | OSX002003 | |
| Warranty | 24 months | |
MA5801-FL04
2 355.58 EUR excl. VAT
2 850.34 EUR incl. VAT
stiqtyfree:2
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
Format:
SFP
For cable type:
Single Mode
Transmission speed:
1.244 / 2.488 Gbps
Wavelength - Tx/Rx [nm]:
1490 / 1310
Distance [km]:
60
Transfer type:
GPON
Polishing type:
UPC
Tx power [dBm]:
3 up to 7
Receiver sensitivity [dBm]:
-32
Connectors and Interfaces
Optical Connectors:
(1) SC
Physical characteristics
Operating temperature [°C]:
0 up to 70
Product description

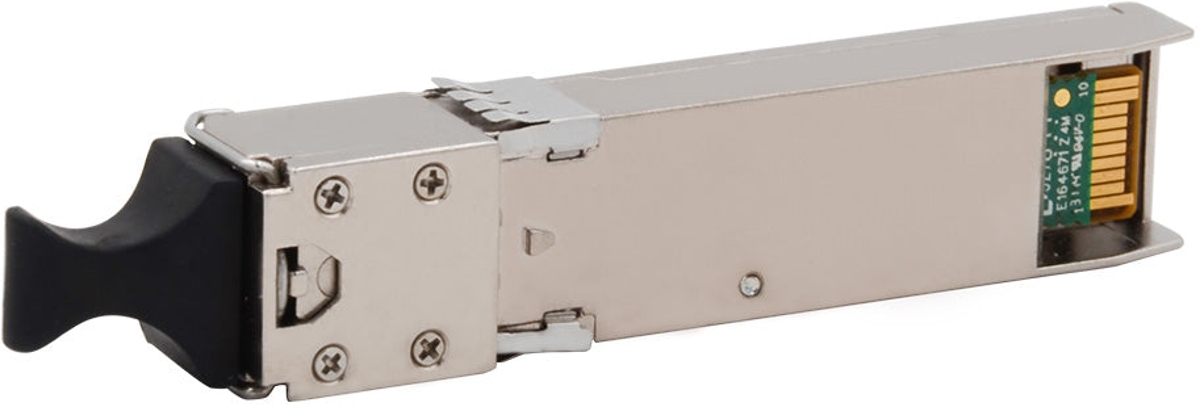

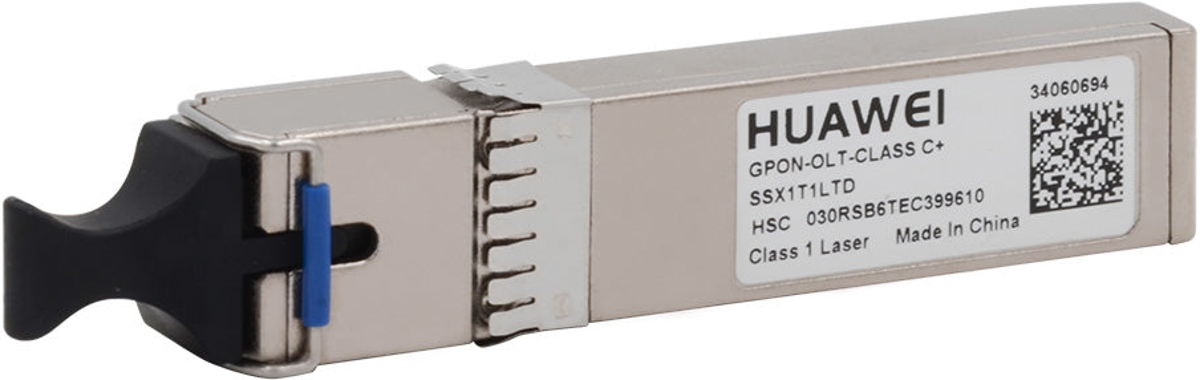

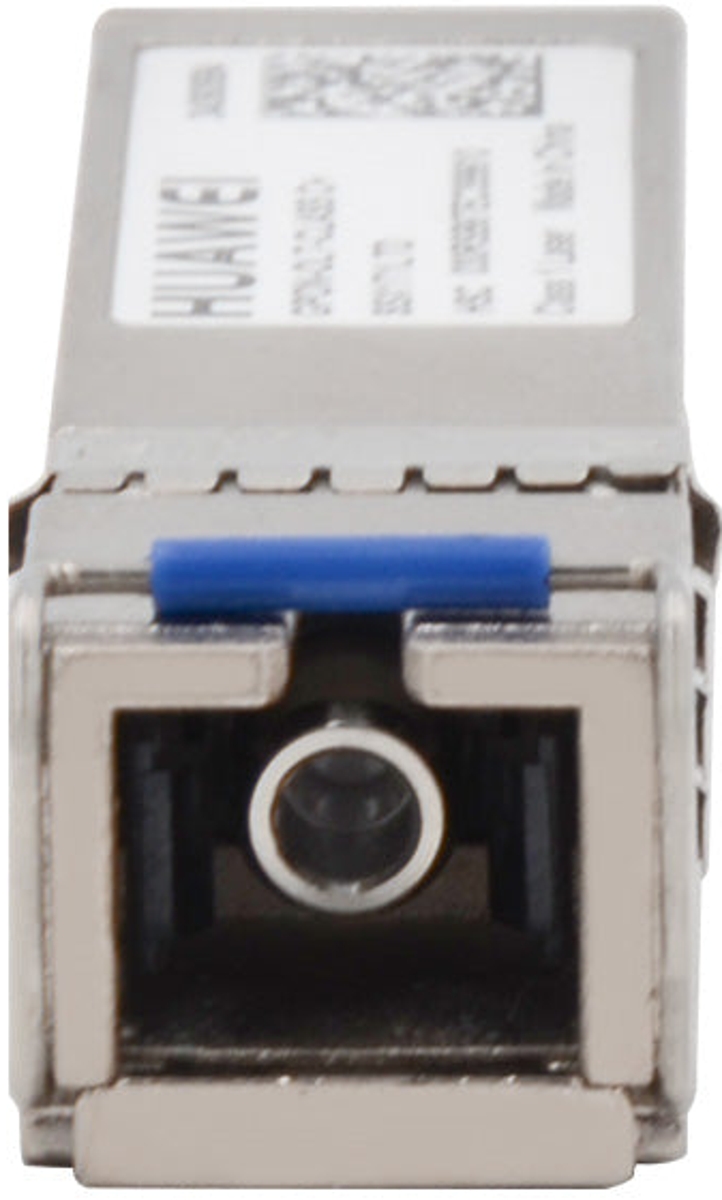

The Huawei OSX002003 GPON SFP module is designed for slots in Huawei OLT units. It is a C+ class module, terminated with an SC connector with UPC polishing, offering a transmission distance of up to 60km and supporting asymmetric data rates of 2.5Gbps download and 1.2Gbps upload. The module's TX power range is from 3 to 7dBm and the RX sensitivity is -32dBm.
Download
DatasheetGPSR
