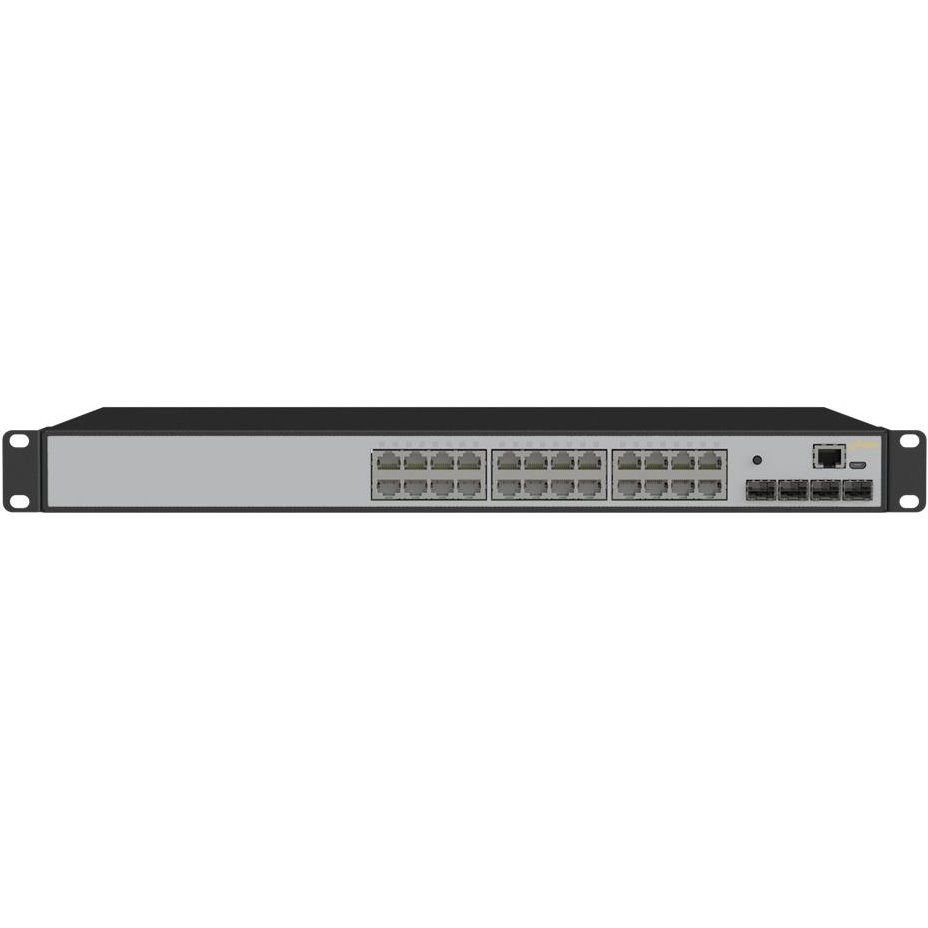

IgniteNet FusionSwitch 24-Port 10/100/1000Mbps L2 Managed PoE switch with 4 10G SFP+ Uplink Ports
We are sorry, this product is no longer in our offer.
IgniteNet FusionSwitch 24-Port 10/100/1000Mbps L2 Managed PoE switch with 4 10G SFP+ Uplink Ports
×
0/0
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:769
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PCU5E-5-MSC
3.80 EUR excl. VAT
4.60 EUR incl. VAT
stiqtyfree:75
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(24) 10/100/1000Mbps
Management LAN:
(1) 10/100Mbps
Optical interfaces:
(4) 10Gbps
Serial port:
RJ45
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
24
PoE budget [W]:
370
Max. power consumption [W]:
50
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
0 up to 50
Width [mm]:
440
Height [mm]:
44
Depth [mm]:
220
General
Switchning capacity [Gbps]:
176
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
130
Software
Web management:
Yes
Management:
Web management
Features:
VLAN, QoS
Default IP address:
Dynamic from DHCP
Default login and password:
admin / admin
Product description
The IgniteNet FusionSwitch™ PoE is a Gigabit Ethernet access switch with 24 Gigabit PoE ports supports 802.3af/at and four 10G uplink ports. The switch is an ideal Gigabit access switch for SMB, enterprise, and campus networks. The FusionSwitch™ PoE is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
Download
CE CLI Reference guide Datasheet Quick Start GuideGPSR
