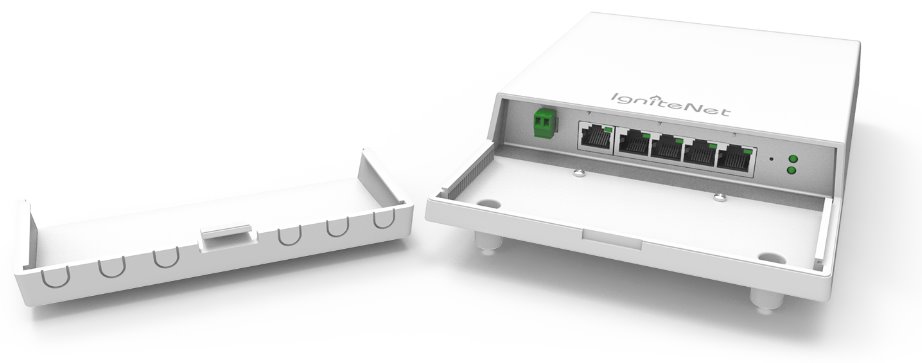

IgniteNet MeshLinq Switch
We are sorry, this product is no longer in our offer.
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:769
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
PCU5E-5-MSC
3.80 EUR excl. VAT
4.60 EUR incl. VAT
stiqtyfree:75
_17:
avail:2
infocode: stock
queu:
shipmin:
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Power
Power type:
PoE, DC terminal
PoE type:
PoE-Out + PoE-In
PoE-Out standards:
Passive 54V, Passive 24V, Passive 48V
PoE Out ports:
4
Max. power consumption [W]:
10
Power via connector/terminal:
24 .. 56V DC
Physical characteristics
Design:
Outdoor
Fans:
No
Chassis design:
Plastic
Buttons:
Reset
Operating temperature [°C]:
-30 up to 55
Width [mm]:
150
Height [mm]:
240
Depth [mm]:
49
General
Switchning capacity [Gbps]:
13
Software
Web management:
Yes
Management:
Web management
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet's MeshLinq is an outdoor manageable 5-port PoE switch with very variable use. For connection to the network, the first port labeled as uplink allows up to 2.5Gbps speed with backward compatibility of 100/1000Mbps. Ports 2-5 are gigabit with PoE Out capability to power other devices with passive PoE support on pins 4,5+, 7,8-.
MeshLinq powering
The switch can be powered in two ways. The best way to power is over a DC terminal box with 24 to 56V, where output passive PoE power can be used for the next 4 device. The current limit on each PoE-Out port is 1A max. The second way is power over PoE on the first port with 24 to 48V, and PoE-out can not be used.
