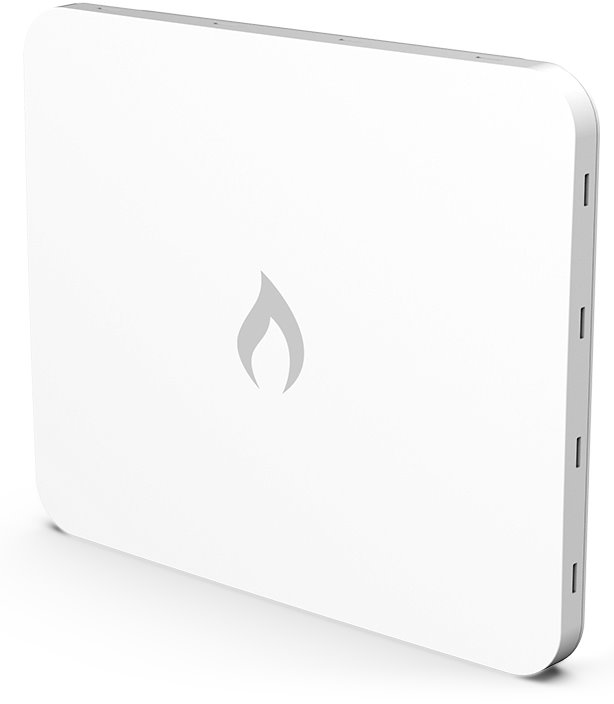

IgniteNet MetroLinq 60 LW, 60GHz + backup 2,4/5GHz (price per piece), no holder
We are sorry, this product is no longer in our offer.
IgniteNet MetroLinq 60 LW, 60GHz + backup 2,4/5GHz (price per piece), no holder
×
0/0
Sale
-14%
ICC-LA-BT
5.60 EUR excl. VAT
6.78 EUR incl. VAT
In Stock
ICC-BRACKET-LC
22.29 EUR excl. VAT
26.97 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Sensitivity [dBm]:
-74
Channel bandwidth [MHz]:
2000
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
1000
Output power 60GHz [dBm]:
14
Connectors and Interfaces
LAN speed:
(1) 10/100/1000Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
24 .. 48V DC
Power type:
PoE, DC terminal
Max. power consumption [W]:
15
Physical characteristics
Radom:
Yes
Operating temperature [°C]:
-30 up to 55
Weight [g]:
650
Width [mm]:
203
Height [mm]:
240
Depth [mm]:
48
Software
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet MetroLinq 60 LW is the PTP link of the world with such a excellent price per 1Mbps and the overall throughput 1 Gbit/s Half Duplex. The biggest advantage of MetroLinq 60 is transferring data in the unlicensed 60GHz band, which is available in most parts of the world. Allowing you to very rapid development and sufficiently enhance connectivity in the last mile to end customers.
Multi-gigabit capacity
The MetroLinq 60 LW has a Gigabit Ethernet port supporting PoE and also an SFP port for direct fiber connectivity.
120° beamforming antenna
The new beamforming sector antenna has a 120-degree area coverage, but during the communication with each client device 16 narrow beam steps of 10 degrees are used, which improves noise immunity and assures security of your links.
Tri-band
MetroLinq 60 LW has three integrated radios making it an ideal device for building network backhaul and access using the same unit. 60GHz serves as the backhaul while the 5GHz radio can work as a failover or client access radio and 2.4GHz is dedicated for client access as well.
Package contains
