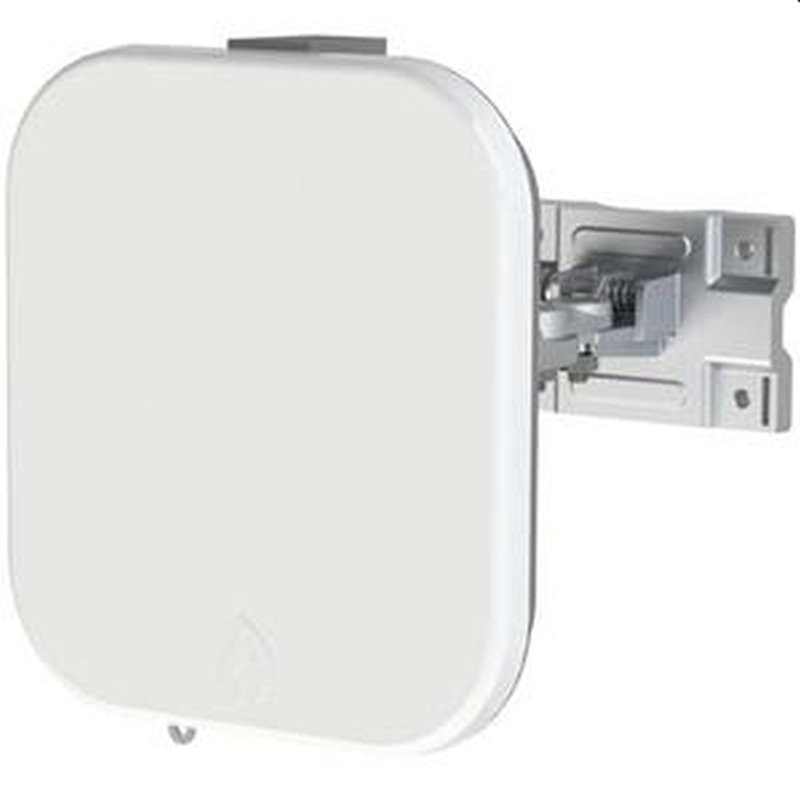

IgniteNet MetroLinq 60 PRO, 2.5Gbps, outdoor unit 60GHz PTMP 18dBi + backup 5GHz 2x14dBi, bracket not included
We are sorry, this product is no longer in our offer.
IgniteNet MetroLinq 60 PRO, 2.5Gbps, outdoor unit 60GHz PTMP 18dBi + backup 5GHz 2x14dBi, bracket not included
×
0/0
Sale
-8%
ICC-LA-BT
5.59 EUR excl. VAT
6.76 EUR incl. VAT
In Stock
ICC-BRACKET-LC
22.23 EUR excl. VAT
26.90 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.13 EUR excl. VAT
3.79 EUR incl. VAT
In Stock
Parameters
Download
Video
Technical parameters
Wireless features
Sensitivity [dBm]:
-74
Channel bandwidth [MHz]:
2000
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 60GHz [Mb/s]:
4600
Output power 60GHz [dBm]:
14
Elevation beam width (-6dB) [°]:
15
Azimuth beam width (-6dB) [°]:
30
Antenna gain [dBi]:
18
Connectors and Interfaces
LAN speed:
(1) 100/1000/2500Mbps
Optical interfaces:
(1) 1000Mbps
Power
Power over Ethernet:
24 .. 48V DC
Power type:
PoE, DC terminal
Physical characteristics
Radom:
Yes
Operating temperature [°C]:
-40 up to 70
Weight [g]:
2000
Width [mm]:
190
Height [mm]:
190
Depth [mm]:
60
Software
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
root / admin123
Product description
IgniteNet MetroLinq 60 (ML2.5-60-BF-18-EU) is the first PTMP device of the world with such a excellent price per 1Mbps and the overall throughput 2.5 Gbit/s Half Duplex. The biggest advantage of MetroLinq 60 is transferring data in the unlicensed 60GHz band, which is available in most parts of the world. Allowing you to very rapid development and sufficiently enhance connectivity in the last mile to end customers.
Added value of MetroLink 60 is integrated 5GHz radio part with 802.11a/n/ac support for maximum modulation rate 866Mbps and an integrated sector antenna with dual polarity 18dBi antenna. 5GHz radio part can be configured as a backup PTP or as an AP or CPE.
Package contains
Articles and reviews
Download
DoC Link calculatorTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
