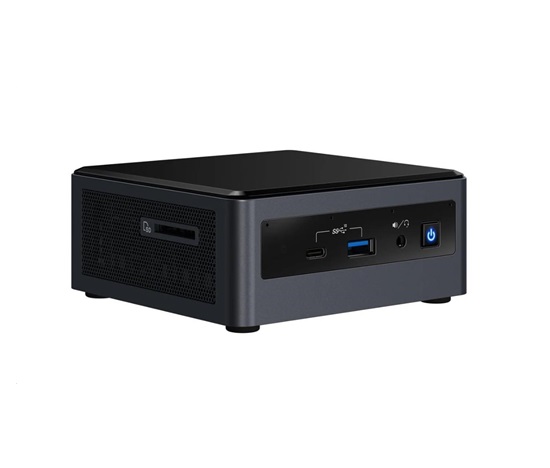

Intel NUC 10i3FNHFA - Barebone i3/4GB RAM/1TB HDD/Bluetooth 5.0/Win10Home/bez kabelu - mini PC

Essentials

Product Collection

Intel NUC Mini PC with 10th Generation Intel Core™ Processors

Code Name

Products formerly Frost Canyon

Status

Launched

Launch Date

Q4'19

Supported Operating Systems

Windows 10, 64-bit*

Board Number

NUC10i3FNB

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

2

Lithography

14 nm

TDP

25 W

DC Input Voltage Supported

19 VDC

Pre-Installed Operating System

Windows 10, 64-bit*

Processor Included

Intel Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)

Intel vPro™ Platform Eligibility ‡

No

# of Cores

2

# of Threads

4

Processor Base Frequency

2.10 GHz

Max Turbo Frequency

4.10 GHz

Warranty Period

3 yrs

Supplemental Information

Embedded Options Available

No

Datasheet

View now

Description

Other features: 16GB Intel Optane™ Memory M.2 module pre-installed, 1TB HDD, Windows 10 x64 Home, includes far-field quad array microphones

Memory & Storage

Included Storage

16GB Intel Optane™ Memory, 1TB HDD

Included Memory

16GB Intel Optane™ Memory + 4GB DDR4-2666

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR4-2666 1.2V SO-DIMM

Max # of Memory Channels

2

Max Memory Bandwidth

42.6 GB/s

Max # of DIMMs

2

ECC Memory Supported ‡

No

Processor Graphics

Processor Graphics ‡

Intel UHD Graphics

Integrated Graphics ‡

Yes

Graphics Output

HDMI 2.0a; USB-C (DP1.2)

# of Displays Supported ‡

3

Expansion Options

PCI Express Revision

Gen3

PCI Express Configurations ‡

M.2 slot with PCIe X4 lanes

Removable Memory Card Slot

SDXC with UHS-II support

M.2 Card Slot (storage)

22x42/80

I/O Specifications

# of USB Ports

7

USB Configuration

2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers

USB Revision

2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal)

0 + 2

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

2

Max # of SATA 6.0 Gb/s Ports

2

Audio (back channel + front channel)

7.1 digital (HDMI mDP); L+R mic (F)

Integrated LAN

Intel Ethernet Connection I219-V

Integrated Wireless‡

Intel Wireless-AX MAC

Integrated Bluetooth

Yes

Consumer Infrared Rx Sensor

Yes

Additional Headers

CEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt™ 3 Ports

1

Package Specifications

Chassis Dimensions

117 x 112 x 51mm

Advanced Technologies

Intel Optane™ Memory Supported ‡

Yes

Intel Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel vPro™ Platform Eligibility ‡

No

TPM

No

Intel HD Audio Technology

Yes

Intel Rapid Storage Technology

Yes

Intel Virtualization Technology (VT-x) ‡

Yes

Intel Platform Trust Technology (Intel PTT)

Yes

Security & Reliability

Intel AES New Instructions

Yes
