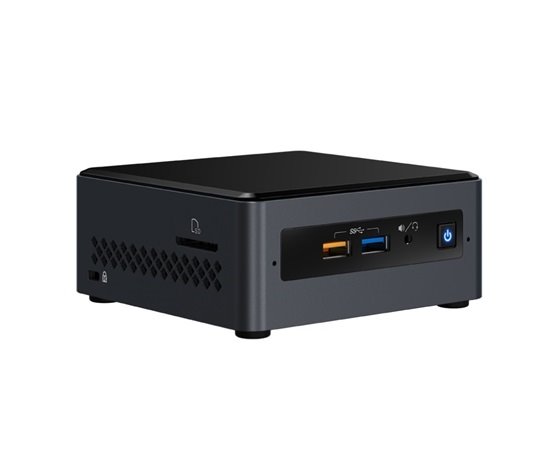

INTEL NUC Kit 7CJYH Celeron/USB3/HDMI/WIFI/2,5"

Name: INTEL NUC Kit 7CJYH Celeron/USB3/HDMI/WIFI/2,5
Brand: Intel
SKU: 101378
Price: 125.25 EUR
Availability: OutOfStock

We are sorry, this product is no longer in our offer.

0/0

Manufacturer	Intel
Code	20120256
Part No.	BOXNUC7CJYH2

Compare Have a question? Suggest a change

GPSR

Product description

Parametr	Hodnota
Provedení PC	Mini-PC
Řada procesoru	Intel Celeron

Specifikace:

Code Name	JUNE CANYON
Essentials
Board Form Factor	UCFF (4" x 4")
Socket	Soldered-down BGA
Internal Drive Form Factor	2.5" Drive
# of Internal Drives Supported	1
Lithography	14 nm
TDP	10 W
DC Input Voltage Supported	12-19 VDC
Processor Included	Intel Celeron Processor J4005 (4M Cache, up to 2.70 GHz)
Warranty Period	3 yrs
Supplemental Information
Embedded Options Available	No
Description	Other features: Includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)	8 GB
Memory Types	DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels	2
Max Memory Bandwidth	38.4 GB/s
Max # of DIMMs	2
ECC Memory Supported ‡	No
Processor Graphics
Integrated Graphics ‡	Yes
Graphics Output	2x HDMI 2.0a
# of Displays Supported ‡	2
Expansion Options
Removable Memory Card Slot	SDXC with UHS-I support
I/O Specifications
# of USB Ports	6
USB Configuration	2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision	2.0, 3.0
USB 2.0 Configuration (External + Internal)	0 + 2
USB 3.0 Configuration (External + Internal)	2B 2F + 0
Total # of SATA Ports	1
Max # of SATA 6.0 Gb/s Ports	1
RAID Configuration	N/A
Audio (back channel + front channel)	7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN	10/100/1000
Integrated Wireless‡	Intel Wireless-AC MAC
Integrated Bluetooth	Yes
Consumer Infrared Rx Sensor	Yes
S/PDIF Out Connector	TOSLINK
Additional Headers	CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Package Specifications
Low Halogen Options Available	See MDDS
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel vPro™ Technology ‡	No
TPM	No
Intel HD Audio Technology	Yes
Security & Reliability
Intel AES New Instructions	Yes
