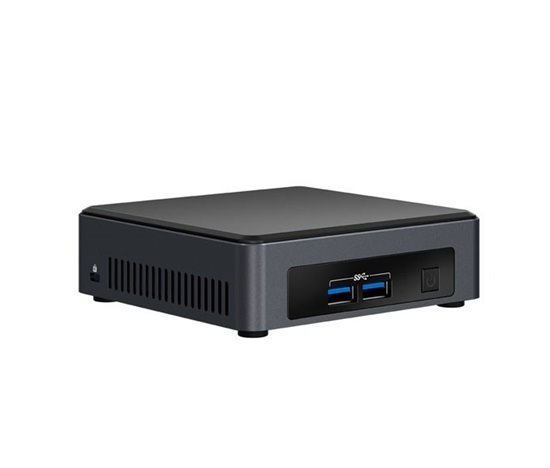

INTEL NUC Kit 7i7DNKE i7/USB3/HDMI/WIFI/M.2

We are sorry, this product is no longer in our offer.

INTEL NUC Kit 7i7DNKE i7/USB3/HDMI/WIFI/M.2
INTEL NUC Kit 7i7DNKE i7/USB3/HDMI/WIFI/M.2
×
0/0
INTEL NUC Kit 7i7DNKE i7/USB3/HDMI/WIFI/M.2
INTEL NUC Kit 7i7DNKE i7/USB3/HDMI/WIFI/M.2

Manufacturer

Intel
Code20120257
Part No.BLKNUC7i7DNK2E
GPSR

Product description

ParametrHodnota
Provedení PCMini-PC
Řada procesoruIntel Core i7


Specifikace:

Code Name Dawson Canyon
Essentials
Board Form Factor UCFF (4" x 4")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 1
TDP 15 W
DC Input Voltage Supported 12-24 VDC
Processor Included Intel Core™ i7-8650U Processor (8M Cache, up to 4.20 GHz)
Warranty Period 3 yrs
Supplemental Information
Embedded Options Available Yes
Description 8th Gen Commercial Intel NUC
Memory & Storage
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Integrated Graphics ‡ Yes
Graphics Output Dual HDMI 2.0a, 4-lane eDP 1.4
# of Displays Supported ‡ 2
Expansion Options
PCI Express Revision Gen 3
PCI Express Configurations ‡ PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
M.2 Card Slot (wireless) 22x30 (key E) slot
M.2 Card Slot (storage) 22x80 (key M) slot
I/O Specifications
# of USB Ports 4
USB Configuration 2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers
USB Revision 2.0, 3.0
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F +1
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration N/A
Serial Port via Internal Header Yes
Integrated LAN Intel i219-LM 10/100/1000 Mbps Ethernet
Integrated Wireless‡ Intel Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector
Package Specifications
Low Halogen Options Available See MDDS
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro™ Technology ‡ Yes
Intel ME Firmware Version v11.8
TPM Yes
TPM Version 2.0
Intel Rapid Storage Technology Yes
Intel Virtualization Technology (VT-x) ‡ Yes
Intel Platform Trust Technology (Intel PTT) No
Security & Reliability
Intel AES New Instructions Yes
Intel Trusted Execution Technology ‡ Yes
